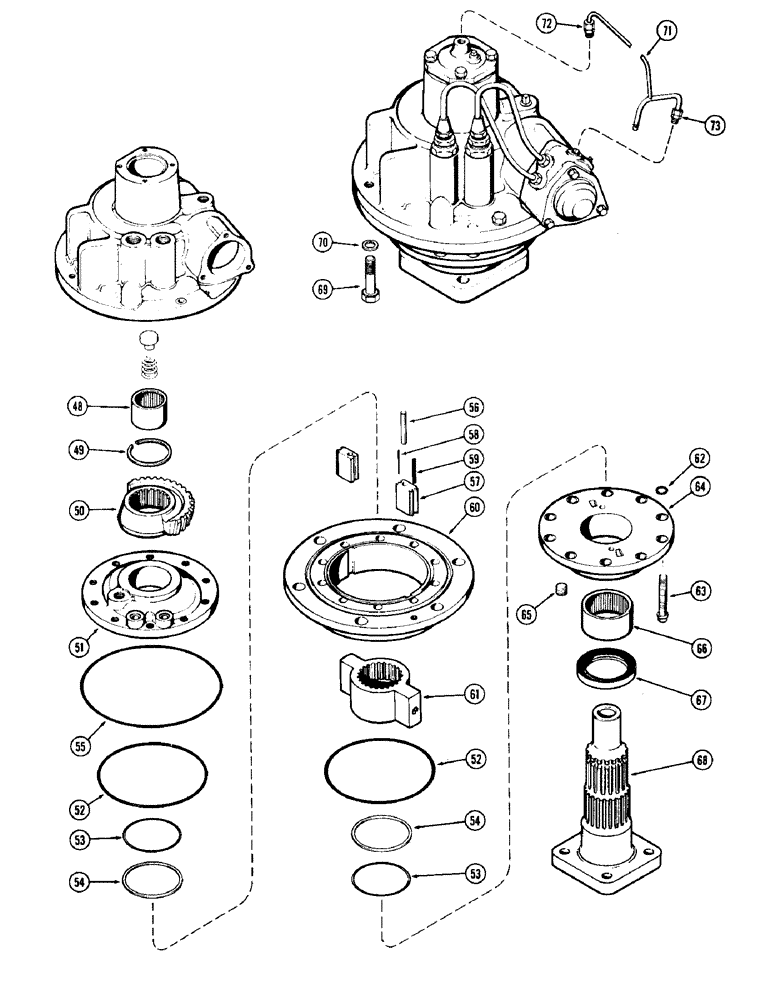

Запчасти Case IH 930-SERIES (079A) - A57915 POWER STEERING GEAR, WESTERN MODELS, FIRST USED TRACTOR SERIAL NUMBER 8342194 (05) - STEERING

A57915

GEAR

ASSY. - steering (cont. from page 79)

1шт.

48

A28310

BEARING, NEEDLE,1.75" ID x 2.1255" OD x 1.5"

BEARING - needle, spindle, upper (1-3/4" I.D. x 1-1/2"), Includes Ref: 49 - 68

1шт.

49

A27760

RING, SNAP

RING - snap, sector gear ret.

1шт.

50

A34659

GEAR

- sector (right hand helix)

1шт.

51

A32202

COVER - vane, upper

1шт.

52

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - body, outer (6-1/4 x 6-1/2 x 1/8")

2шт.

53

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

"O" RING - body, inner (3-1/4 x 3-7/16 x 7/64")

2шт.

54

A32191

RING

- "O" Ring back-up (teflon)

2шт.

55

A28319

O-RING,8.234" ID x 8.512" OD x 0.139"

"O" RING - cover (8-1/4 x 8-1/2 x 1/8")

1шт.

56

A32201

SEAL

PIN - stationary vane (3/8 x 2-21/32")

2шт.

57

A34187

VALVE POPPET

VANE - stationary (2-11/64" high)

2шт.

58

A57043

SEAL

SEAL - stationary vane (9/64 x 2-3/16" rubber)

2шт.

59

A32199

SEAL

SEAL - stationary vane (13/64 x 2-3/16" rubber)

2шт.

60

A32193

BODY - vane

1шт.

61

A32194

VANE ASSY. - torque motor

1шт.

62

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - cover bolt (7/16 x 5/8 x 3/32")

10шт.

63

166-74

BOLT - cover (7/16 x 3-1/4" N.C., 12 pt. hd.) 12 Pt Flg, 7/16"-14 x 3 1/4", G8

10шт.

64

A32187

COVER - vane, lower

1шт.

65

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Cover Hex Soc, 1/4"-18 NPTF

1шт.

66

A32188

BEARING, NEEDLE,3" ID x 3.5045" OD x 1.125"

BEARING - needle, spindle, lower (3" I.D. x 1-1/4")

1шт.

67

A32189

OIL SEAL

SEAL - oil, spindle (3 x 4 x 1/2")

1шт.

68

A32186

SPINDLE - steering (2 spline)

1шт.

69

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Str. gear Hex, 5/8"-11 x 2 1/4", G5

1шт.

69

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Str. gear Hex, 5/8"-11 x 2 1/2", G5

5шт.

70

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

71

A23346

TUBE ASSY.

TUBE - bleed

1шт.

72

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

CONNECTOR - tube (3/8" P.T., male)

1шт.

73

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - tube (1/8" P.T., male)

1шт.
