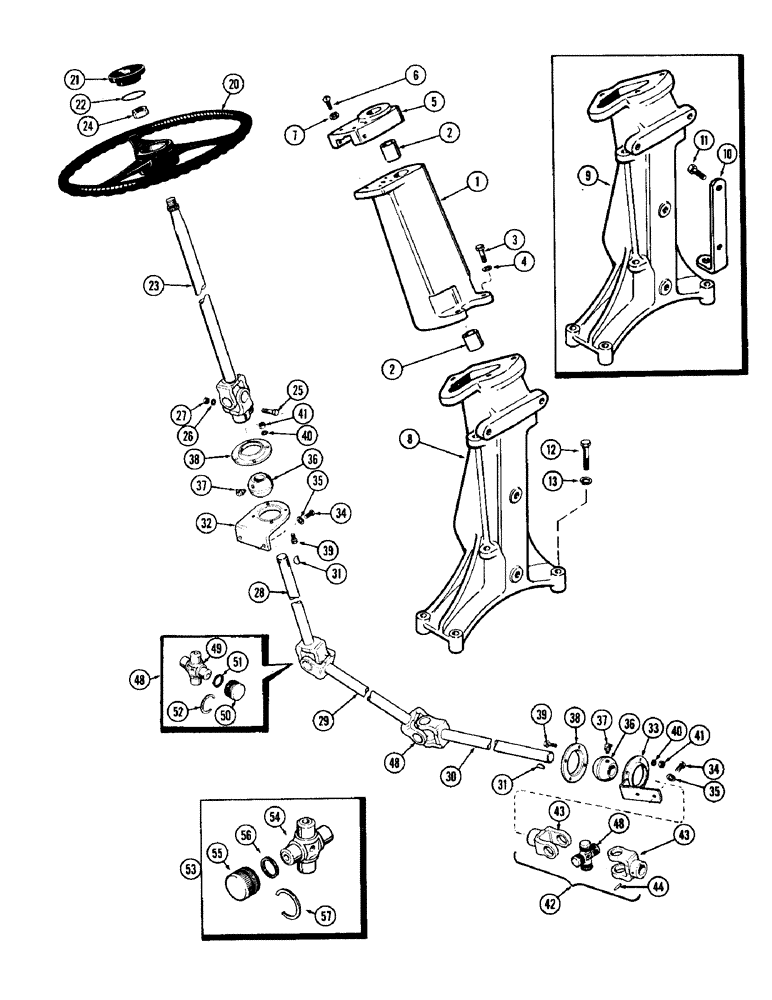

Запчасти Case IH 930-SERIES (074) - STEERING GEAR LINKAGE (05) - STEERING

1

A33266

COLUMN ASSY. - steering, Includes Ref: 2

1шт.

2

A27108

BUSHING

- steering column

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Column to support Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

A33147

CAP - steering column

1шт.

6

173-254

SCREW,Phil Rnd Hd, 5/16" - 18 x 1 3/4"

- cap (5/16" x 1-3/4" N.C. rd. hd.)

3шт.

7

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

3шт.

8

A34205

SUPPORT - str. column (does not req. brace) (see items 8 & 9) (used trac. ser. no. 8282027 & up)

1шт.

9

A33148

SUPPORT - str. column (Order A34205) (Req. brace) (used prior to trac. ser. no. 8282027)

1шт.

10

A57782

BRACE

- support (used prior to trac. ser. no. 8282027) (replaces A34181)

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Brace Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

12

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- support (1/2 x 2-1/4" N.C. hex.)

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

20

A20456

WHEEL (STEERING)

WHEEL - steering

1шт.

21

A35603

CAP

MEDALLION - steering wheel (Replaces A20475)

1шт.

22

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion (2-1/2 x 2-3/4 x 1/8")

1шт.

23

A23915

SHAFT

ASSY. - upper strg. (w/univ. joint)

1шт.

24

25-1512

JAM NUT,Jam, 3/4"-10, G5

- steering wheel ret. (3/4" N.F. jam)

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Clamp Hex, 3/8"-16 x 1 3/4", G5

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

28

A25595

SHAFT

- rear, steering

1шт.

29

A25596

SHAFT - middle, steering

1шт.

30

A25597

SHAFT - front, steering

1шт.

31

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Steering shaft #9, 3/16" x 3/4"

2шт.

32

A32593

SUPPORT

- rear steering shaft bearing

1шт.

33

A32594

SUPPORT

- front steering shaft bearing

1шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Supports Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

A9597

BALL

- steering shaft bearing

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

38

A8959

RETAINER

FLANGE - bearing

2шт.

39

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - flange (#10-24 x 3/4" rd. hd.)

8шт.

40

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

41

129-7

NUT,Hex, #10 - 24

- ( hex.), Includes Ref: 43 and 44 #10-24

8шт.

42

A7511

JOINT

ASSY. - universal, front

1шт.

43

A8828

YOKE - universal joint

2шт.

44

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

48

A30435

KIT

UNIVERSAL JOINT ASSY. - (w/needle brgs.), Includes Ref: 49 - 52

1шт.

49

NSS

NOT SOLD SEPARAT

CROSS - center (Order A30435)

1шт.

50

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A30435)

4шт.

51

A30766

WASHER - cork

4шт.

52

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.

53

A20684

KIT

UNIVERSAL JOINT ASSY. - (w/plain brgs.), Includes Ref: 54 - 57

1шт.

54

NSS

NOT SOLD SEPARAT

CROSS - center (Order A20684)

1шт.

55

NSS

NOT SOLD SEPARAT

BEARING - plain (Order A20684)

4шт.

56

F62222

WASHER - cork

4шт.

57

A31149

RING, SNAP

RING - snap, brg. ret.

4шт.
