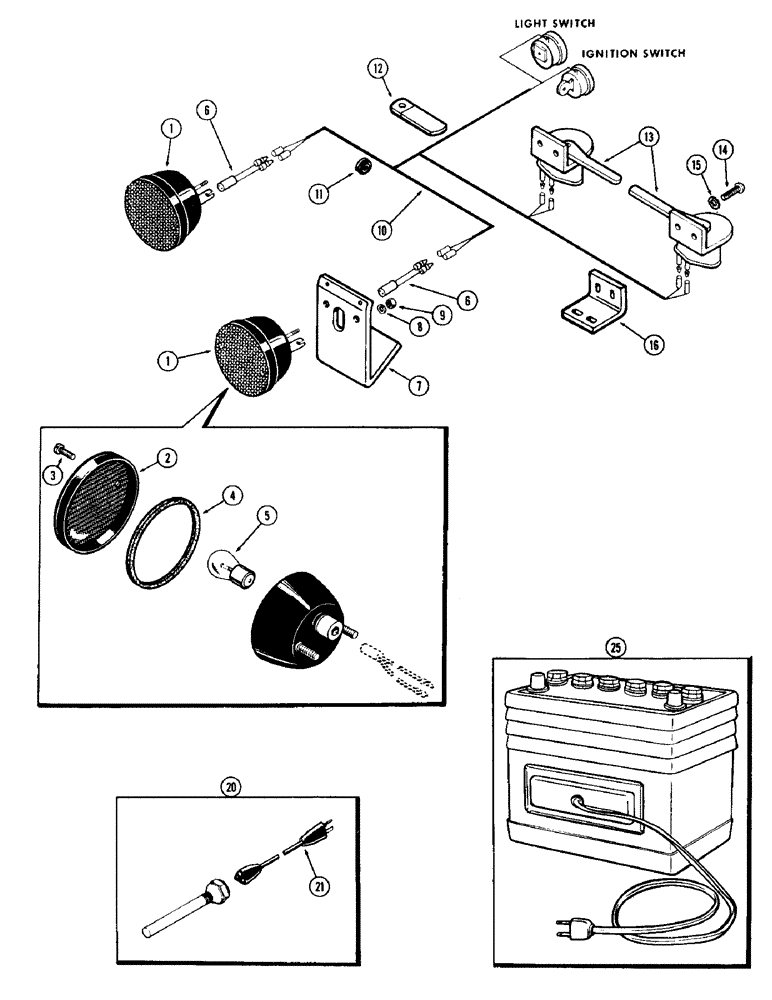

Запчасти Case IH 930-SERIES (073E) - STOP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

A33988

STOP & TAIL LIGHT KIT - (Not Illust.), Includes Ref: 1 - 14

1шт.

1

L10741

STOP LIGHT

LIGHT ASSY. - stop and tail (Replaces A16732), Includes Ref: 2 - 5

2шт.

2

B50336

LENS

1шт.

3

187-553

SCREW,Slotted Pan Hd, #8 x 5/8"

- lens (Replaces B50219)

2шт.

4

A40862

GASKET

1шт.

5

R11078

LAMP

BULB - 12 volt (Mfrs. #1034)

1шт.

6

A16731

PLUG

& WIRE ASSY.

2шт.

7

A33972

BRACKET - mounting, light

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

10

A33975

HARNESS

- wire, stop & tail light

1шт.

11

A27338

GROMMET

- wire through fender

3шт.

12

A22880

CLIP

- wire

2шт.

13

A33976

SWITCH

- light operating

2шт.

14

187-1126

SCREW - (#10-32 x 3/8" pan hd.)

4шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

16

A33989

BRACKET - switch mounting

1шт.

20

A40476

HEATER

ASSY. - cyl. block, Includes Ref: 21

2шт.

21

A40477

ELECTRICAL WIRE

CORD - block heater

1шт.

25

M20509

HEATER

- battery (side mounted), block

2шт.
