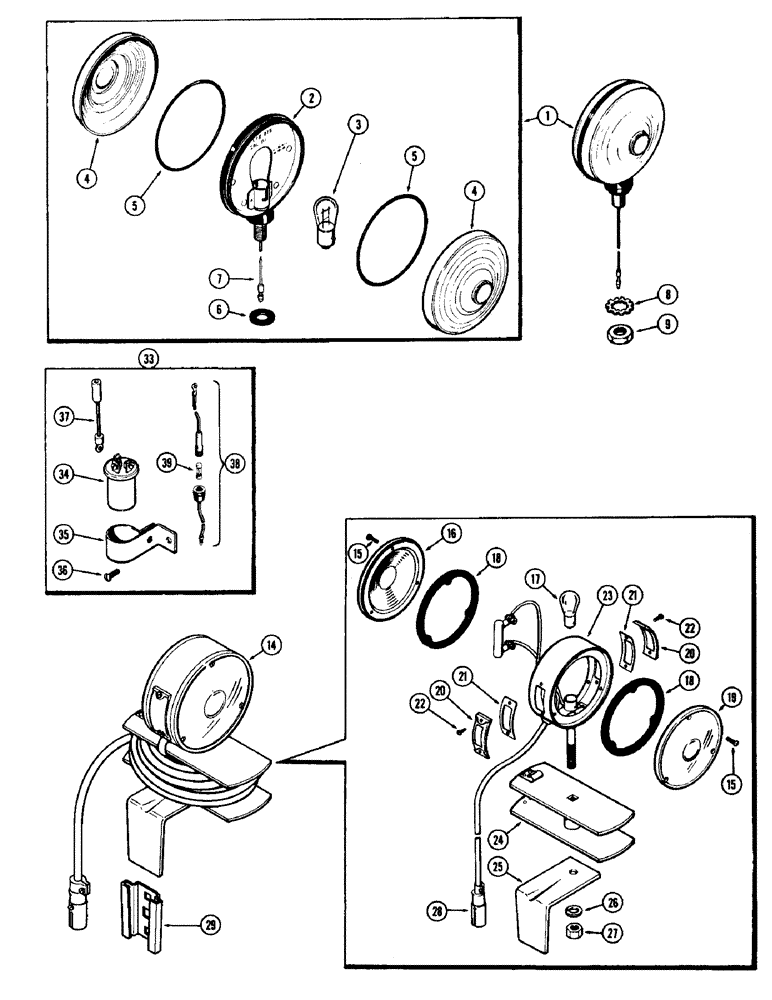

Запчасти Case IH 930-SERIES (073C) - FLASHER WARNING LAMP, TRACTOR AND CAB MOUNTED (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

ASSY. - warning, Includes Ref: 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A41261

LENS

- lamp

2шт.

5

A41262

O-RING,3.484" ID x 0.139"

"O" RING - lamp

2шт.

6

A41263

GASKET - lamp

1шт.

7

A41260

WIRE - lamp

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Lamp stud Ext-Int Tooth, 1/2"

1шт.

9

129-125

NUT,1/2"-20, G5

Lamp 1/2"-20, G5

1шт.

A11066M

ATTACHMENT - warning lamp, implement mounted, Includes Ref: 14 - 29

1шт.

14

NSS

NOT SOLD SEPARAT

LAMP ASSY. - warning, implement, mounted, Includes Ref: 15 - 28

1шт.

15

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- mtg., lens (#6 x 1/2" rd. hd.), implement mounted

6шт.

16

B50337

LENS

- lamp (Amber), implement mounted

1шт.

17

33686

BULB

- lamp, 21 c.p. (12 volt), implement mounted

1шт.

18

B50317

GASKET - lens, implement mounted

2шт.

19

B53962

LENS

- lamp (Red), implement mounted

1шт.

20

B50328

LENS - side, lamp, implement mounted

2шт.

21

B50329

GASKET - side lens, lamp, implement mounted

2шт.

22

182-43

SCREW - (#6 x 5/16" pan hd.), implement mounted

4шт.

23

NSS

NOT SOLD SEPARAT

BODY ASSY, implement mounted

1шт.

24

B50330

SPOOL - lamp, implement mounted

1шт.

25

B50331

BRACKET - spool and lamp, implement mounted

1шт.

26

92-7

LOCK WASHER,7/16"

Implement mounted 7/16"

1шт.

27

25-117

NUT,7/16"-20, G5

- (7/16" N.F., hex.), implement mounted

1шт.

28

B50259

PLUG

- lamp, implement mounted

1шт.

29

A8179

SOCKET

- mtg., warning lamp, implement

1шт.

33

A22630M

ATTACHMENT - flasher (Mach. item), attachment, Includes Ref: 34 -39

1шт.

34

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

35

A22626

BRACKET - mtg., flasher, attachment

1шт.

36

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- (#10 x 1/2" N.C., rd. hd.), attachment

1шт.

37

A22628

WIRE - flasher to aux. socket, attachment

1шт.

38

A22629

WIRE - flasher to power, attachment, Includes Ref: 39

1шт.

39

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.), attachment

1шт.
