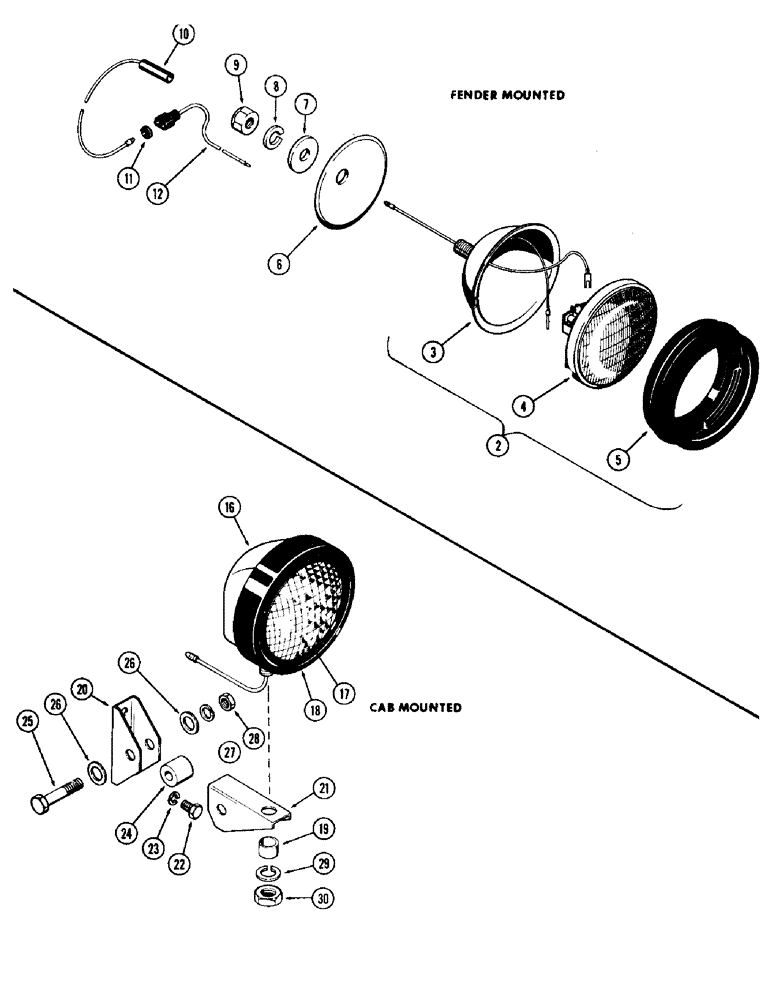

Запчасти Case IH 930-SERIES (073A) - CULTIVATING LAMP, FENDER MOUNTED (04) - ELECTRICAL SYSTEMS

A33254M

ATTACHMENT - cultivating lamp (Mach. Item), Includes Ref: 2 - 11

1шт.

2

A32536

LAMP

ASSY. - fender mounted, Includes Ref: 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order A32536)

1шт.

4

D33182

LAMP

- sealed unit (12-16 unit)

1шт.

5

D31441

RETAINER

RING - seal, lamp mounting

1шт.

6

A32537

WASHER

- lamp mounting

2шт.

7

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 13 Ga.)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- (1/2" N.C., hex.)

2шт.

10

A32538

WIRE - lamp to connector (Red)

2шт.

11

A27338

GROMMET

- lamp wire

2шт.

12

A32640

WIRE - lamp (to inst. panel)

1шт.

A57822

ATTACHMENT - cultivating lamp, cab mounted, Includes Ref: 16 - 30

1шт.

16

A57823

LAMP ASSY. - cultivator, cab mounted, Includes Ref: 17 and 18

2шт.

17

D33182

LAMP

- seal beam unit, cab mounted

1шт.

18

A25213

RETAINER

- seal beam unit, cab mounted

1шт.

19

A57813

SPACER - light (17/32 x 23/32 x 1/2"), cab mounted

2шт.

20

A57824

BRACKET - light mounting, vertical, cab

2шт.

21

A27825

PLUG

BRACKET - light mounting, horizontal, cab

2шт.

22

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Brkt. to cab, mounted Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Cab mounted 5/16"

4шт.

24

A57817

SPACER - mtg. brkt. (13/32 x 7/8 x 13/16"), cab

2шт.

25

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Brkt. to brkt., cab mounted Hex, 3/8"-16 x 2", G5

2шт.

26

195-526

WASHER,7/16" x 7/8" x .083"

- (7/16 x 7/8 x 3/32"), cab mounted

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Cab mounted 3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Cab mounted 3/8"-16, G5

2шт.

29

92-8

LOCK WASHER,1/2"

cab mounted 1/2"

2шт.

30

25-118

NUT,1/2"-20, G5

- lamp stud (1/2" N.C. hex.), cab mounted

2шт.

A57826

WIRE - (49" long, green) (Not Illust.), cab mounted

2шт.

A57814

COVER - wire (in cab) (not illust.), mounted

1шт.

A27237

LOOM

- wire (7/16" I.D. x 10") (not illust.), cab mounted

1шт.

F53322

GROMMET - (in platform) (1/4 x 1/2 x 7/32") (not illust.), cab mounted

2шт.

T32033

X

GROMMET - (in cab) (1/4 x 9/16 x 5/16") (not illust.), cab mounted

2шт.
