(072) - LAMPS, HEAD LAMPS

Запчасти Case IH 930-SERIES (072) - LAMPS, HEAD LAMPS (04) - ELECTRICAL SYSTEMS

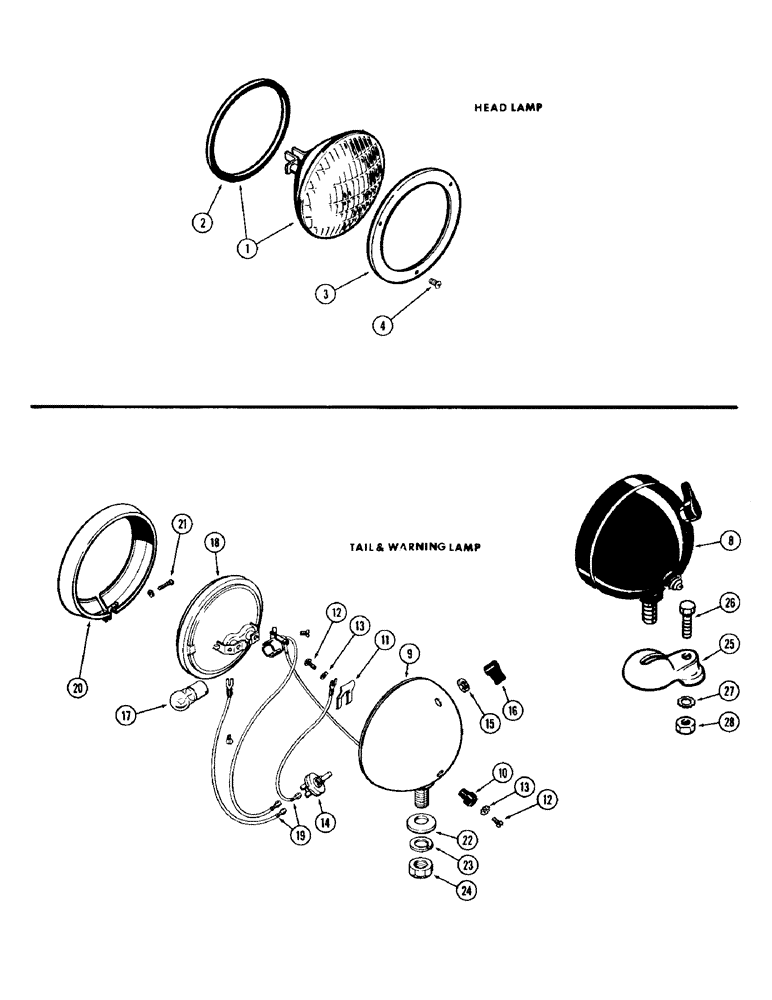

Схема запчастей Case IH 930-SERIES - (072) - LAMPS, HEAD LAMPS (04) - ELECTRICAL SYSTEMS
19
4
28
3
14
12
24
13
22
15
26
16
11
10
1
9
13
17
18
12
23
25
8
20
2
21
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A24572

LAMP

ASSY. - head (seal beam unit), Includes Ref: 2

2шт.

2

A11276

GASKET

- head lamp

1шт.

3

A11275

RING

- head lamp retaining

2шт.

4

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - ret. ring ( self-tapping) #6 x 1/2"

6шт.

8

A20965

LAMP BASE

LAMP ASSY. - tail, combination, warning lamp, Includes Ref: 9 - 25

1шт.

9

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order A20965), tail and warning, Includes Ref: 10 - 13

1шт.

10

B50293

TERMINAL CONNECTOR

TERMINAL KIT - lamp, tail and warning

1шт.

11

10927

SPRING

- terminal lock, tail and warning lamp

1шт.

12

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal (#8 x 1/4" N.C. rd. hd.), tail and warning lamp

2шт.

13

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Terminal screw, Tail and warning lamp Ext Tooth, #6

2шт.

14

B50275

SWITCH

ASSY. - lamp, tail and warning

1шт.

15

B50224

SPECIAL NUT

- retaining, switch, tail and warning lamp

1шт.

16

B50310

SWITCH

KNOB - switch, tail and warning lamp

1шт.

17

B50223

BULB

- light, 15 c.p. (12-16 volt), tail and warning lamp

1шт.

18

A40855

LAMP BASE

LAMP ASSY. - sealed unit (12 volt) (Replaces B50335), tail and warning

1шт.

19

B50273

WIRE ASSY. - lamp, inner, tail and warning

2шт.

20

B50255

MOLDING

- lamp, tail and warning

1шт.

21

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, tail and warning lamp

1шт.

22

10923

WASHER

- bearing, lamp, tail and warning

1шт.

23

92-8

LOCK WASHER,1/2"

tail and warning lamp 1/2"

1шт.

24

25-118

NUT,1/2"-20, G5

- (1/2" N.C., hex.), tail and warning lamp

1шт.

25

A34046

BRACKET

- tail lamp mtg., warning

1шт.

26

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Tail and warning lamp Hex, 5/16"-18 x 2 1/2", G5

1шт.

27

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Tail and warning lamp Ext-Int Tooth, 5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

Tail and warning lamp 5/16"-18, G5

1шт.
