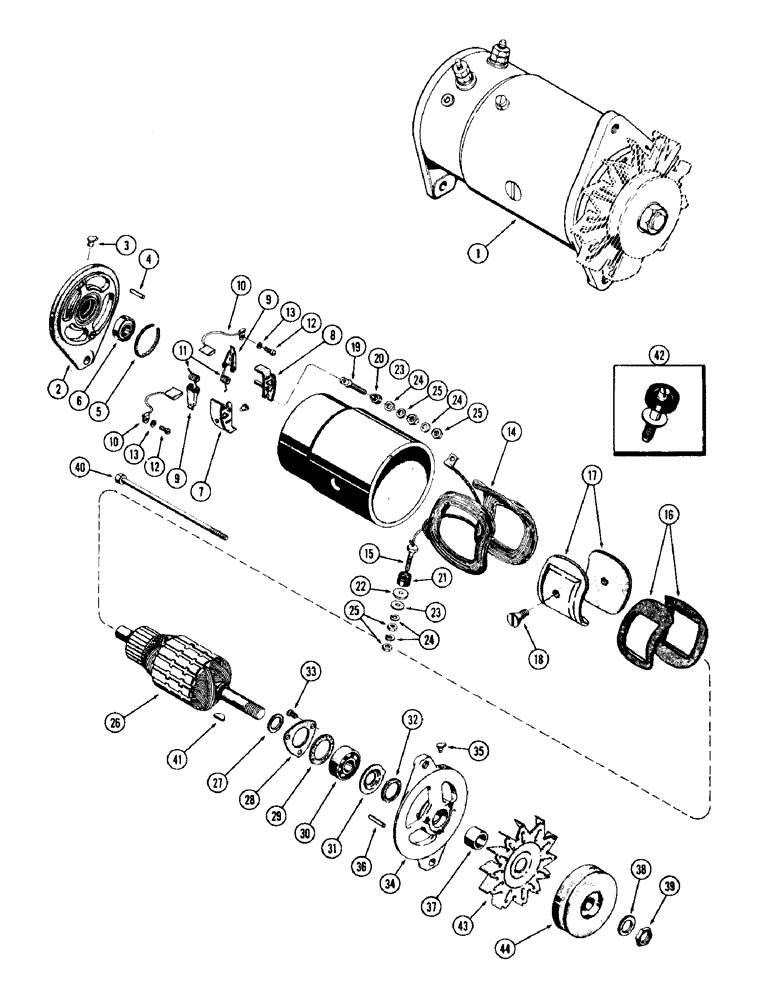

Запчасти Case IH 930-SERIES (071A) - A57751 GENERATOR, USED WITH CAB (04) - ELECTRICAL SYSTEMS

1

A57751

GENERATOR ASSY. - (Delco-Remy #1102344), Includes Ref: 2 - 44

1шт.

2

A41613

FRAME ASSY. - commutator end, Includes Ref: 3 and 4

1шт.

3

219-202

OILER

- comm. end brg.

1шт.

4

R15095

DOWEL - frame locating (1/8 x 3/8")

1шт.

5

R15087

CLAMP - bearing (rubber)

1шт.

6

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

7

A40703

NOZZLE HOLDER

HOLDER ASSY. - ground brush

1шт.

8

A40704

NOZZLE HOLDER

HOLDER ASSY. - insulated brush

1шт.

9

R15090

ARM

- brush

2шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

11

R16161

VALVE SPRING

SPRING - brush pressure

2шт.

12

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush lead (#6-32 x 1/4" d. hd.)

2шт.

13

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

14

A41611

COIL ASSY. - field, Includes Ref: 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - feild terminal (Order ref. 42)

1шт.

16

A25447

ISOLATOR

INSULATION - field coil

2шт.

17

A40736

SHOE - pole

2шт.

18

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.F., flat hd.)

2шт.

19

A40701

STUD

- armature terminal

1шт.

20

R16147

BUSHING

- insulation, armarture stud

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field stud (Order ref. 42)

1шт.

22

R16148

WASHER

- insulation, field stud (See ref. 42)

1шт.

23

A41927

WASHER

- term studs

2шт.

24

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

25

129-18

NUT,#12-24

- term. studs (#12 N.C. hex.)

4шт.

26

A41610

ARMATURE ASSY.

1шт.

27

R15100

WASHER - drive end (43/64 x 15/16 x 3/32")

1шт.

28

R15101

PLATE

- bearing retaining

1шт.

29

R16170

GASKET

- brg. retainer plate

1шт.

30

A25441

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

31

R16169

LARGE PLATE

PLATE - retainer, felt washer

1шт.

32

R16168

WASHER

- drive end (29/32 x 1-9/32 x 1/8" felt)

1шт.

33

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10-32 x 7/16" rd. hd.)

3шт.

34

A41612

HOUSING ASSY. - drive end, Includes Ref: 35

1шт.

35

219-202

OILER

- drive end

1шт.

36

R15041

PIN - locating, drive end

1шт.

37

R16166

BUSHING

SPACER - drive hsg. (43/64 x 29/32 x 3/8")

1шт.

38

192-116

WASHER, LOCK

WASHER - pulley nut (11/16" lock), Includes Ref: 30 - 42

1шт.

39

A25546

NUT

- pulley & fan retaining

1шт.

40

R15106

BOLT

- thru

2шт.

41

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

42

A40702

STUD

KIT - field terminal

1шт.

43

A57754

FAN

- ventilating

1шт.

44

A57757

PULLEY - generator drive (w/1 groove)

1шт.
