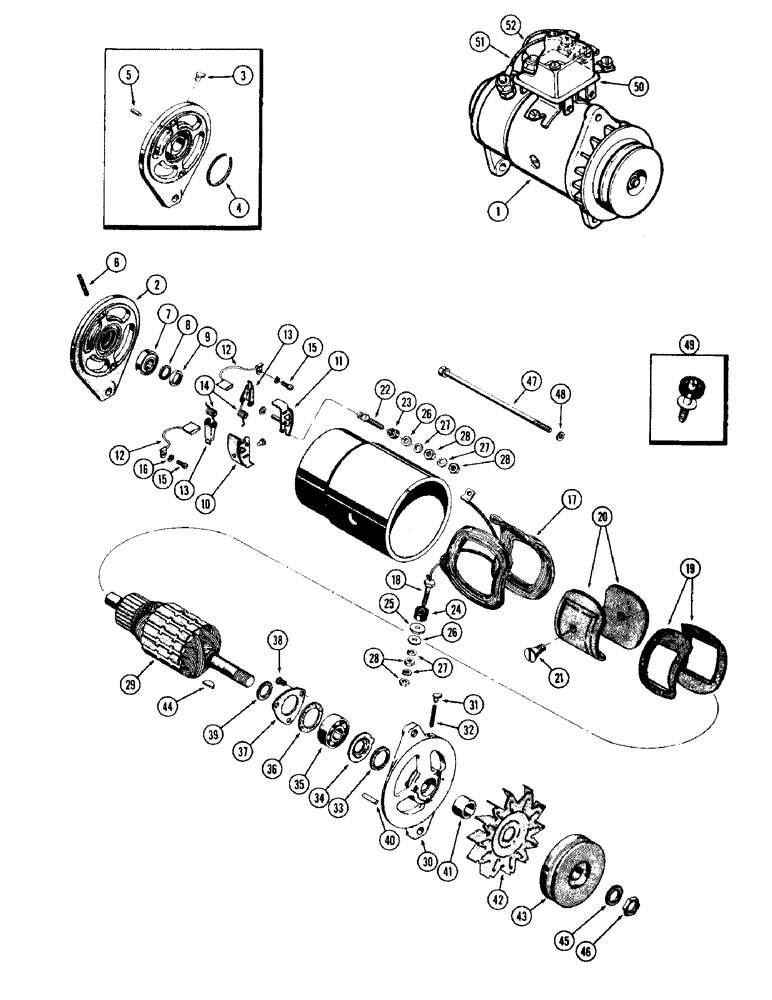

Запчасти Case IH 930-SERIES (070) - A33983 GENERATOR, (377) SPARK AND (401) DIESEL ENGINES, USED WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

ASSY. - (Delco-Remy #1100444), Includes Ref: 2 - 52

1шт.

2

A25413

HOUSING

ASSY. - commutator end, Includes Ref: 3 - 5

1шт.

3

219-202

OILER

- comm. end

1шт.

4

R15087

CLAMP - bearing (rubber)

1шт.

5

R15095

PIN - locating, comm. end (1/8 x 3/4")

1шт.

6

R16165

WICK - oil, comm. end

1шт.

7

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

8

A41929

WHEEL

WASHER - comm. end (29/32 x 1-1/2 x 3/32" felt)

1шт.

9

A41928

RETAINER - felt washer

1шт.

10

A40703

NOZZLE HOLDER

HOLDER ASSY. - ground brush

1шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - insulated brush

1шт.

12

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

13

R15090

ARM

- brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush

2шт.

15

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- brush lead (#6 x 1/4" N.C., rd. hd.)

2шт.

16

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

17

R16149

COIL ASSY.

- field, Includes Ref: 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 49)

1шт.

19

R16152

INSULATOR

- field coil

2шт.

20

A40700

SHOE - pole

2шт.

21

74-610

SCREW,3/8" - 24 x 5/8"

- shoe pole (3/8 x 5/8" N.F. flat hd.)

2шт.

22

A40701

STUD

- armature terminal

1шт.

23

R16147

BUSHING

- insulation, armature term

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal (Order ref. 49)

1шт.

25

R16148

WASHER

- insulation, field stud (See ref. 49)

1шт.

26

A41927

WASHER

- (7/32 x 9/16 x 1/32") (Replaces A41932)

1шт.

27

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

28

129-18

NUT,#12-24

- term. stud (#12 N.C. hex.)

4шт.

29

A40377

ARMATURE

ASSY.

1шт.

30

A25442

HOUSING

ASSY. - drive end, Includes Ref: 31

1шт.

31

219-202

OILER

- housing

1шт.

32

R16165

WICK - oil, drive end

1шт.

33

R16168

WASHER

- drive hsg. (29/32 x 1-9/32 x 1/8" felt)

1шт.

34

R16169

LARGE PLATE

RETAINER - felt washer

1шт.

35

G10623

BALL BEARING

BEARING - ball, drive hsg.

1шт.

36

R16170

GASKET

- brg. retainer plate

1шт.

37

R15101

PLATE

- retainer, drive housing bearing

1шт.

38

A41959

SCREW,#10 - 32 x 3/8"

- retainer plate

3шт.

39

R15100

WASHER - thrust, drive housing, inner (43/64 x 15/16 x 3/32")

1шт.

40

R15041

PIN - locating, drive hsg. (3/16 x 5/16")

1шт.

41

R16166

BUSHING

COLLAR - spacer, drive hsg., inner

1шт.

42

A25449

FAN

- vent, drive end

1шт.

43

A22366

PULLEY

- generator drive

1шт.

PULLEY IS A DOUBLE GROOVE.

1шт.

44

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

45

R16171

SPRING WASHER

- lock, shaft nut

1шт.

46

A25546

NUT

- armature shaft, drive end

1шт.

47

A40129

BOLT

BOLT - generator thru

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

1шт.

49

A40702

STUD

& TERMINAL ASSY.

1шт.

50

A20792

REGULATOR

ASSY. - voltage

1шт.

51

A41930

WIRE - arm. term. to vol. reg. (6" long)

1шт.

52

R16179

ELECTRICAL WIRE

WIRE - field term. to vol. reg. (4" long) (Replaces A41931)

1шт.
