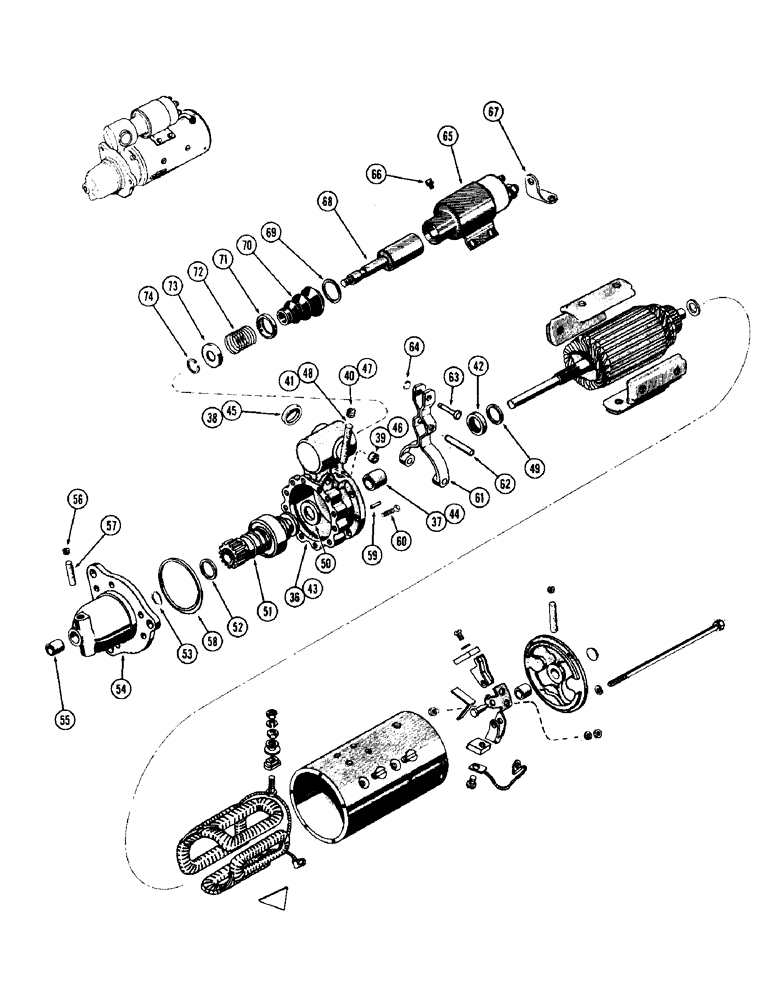

Запчасти Case IH 930-SERIES (065A) - A23688 AND A34855 STARTER, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A34855
STARTER ASSY. - (Cont. from Fig. 64)
1шт.
A23688
SPARE PART STARTER ASSY. - (Cont. from Fig. 64)
1шт.
104251A1R
REMAN-STARTER
930, Reman For New P/N A23688
1шт.
104251A1C
CORE-STARTER
Return Part Number
1шт.
36
A41243
SPARE PART HOUSING ASSY. - lever (used w/A34855 starter), Includes Ref: 37 - 42
1шт.
37
A40944
BUSHING
BUSHING - lever housing (47/64 x 57/64 x 3/4")
1шт.
38
A42013
PLUG
PLUG - (1-3/16" expansion)
2шт.
39
41-1008
PLUG,Cup, 1/2"
PLUG - (1/2" expansion)
2шт.
40
221-1041
PLUG
PLUG - oil wick hole (1/8" P.T. sltd. hd.)
1шт.
41
A41417
WICK
WICK - oil
1шт.
42
A25407
OIL SEAL
SEAL - oil, lever hsg.
1шт.
43
A25405
HOUSING
HOUSING ASSY. - lever (used w/A23688 starter), Includes Ref: 44 - 48
1шт.
44
A40944
BUSHING
BUSHING - lever housing (47/64 x 57/64 x 3/4")
1шт.
45
A42013
PLUG
PLUG - (1-3/16" expansion)
2шт.
46
41-1008
PLUG,Cup, 1/2"
PLUG - (1/2" expanion)
2шт.
47
221-1850
PLUG,Hex Soc, 1/16"-27
PLUG - oil wick hole (1/16" P.T., sckt. hd.)
1шт.
48
A41417
WICK
WICK - oil
1шт.
49
A42202
WASHER
SPACER - armature (Replaces A42011)
1шт.
50
R15043
WASHER
WASHER - thrust, bendix drive
1шт.
51
A25338
DRIVE
DRIVE ASSY. - bendix
1шт.
51
87421542
REMAN-STARTER DRIVE
Drive Assy, Starter
1шт.
51
87421543
CORE-STARTER
Return Part Number
1шт.
52
R15049
COLLAR
COLLAR - pinion stop
1шт.
53
R15048
RING
RING - pinion stop collar retaining
1шт.
54
A25347
SPARE PART HOUSING ASSY. - drive (Replaces A25341), Includes Ref: 55 - 57
1шт.
55
A40868
BUSHING
BUSHING - housing (9/16" I.D. x 3/4" O.D.)
1шт.
56
221-1041
PLUG
PLUG - oil wick hole (1/8" P.T., sltd. hd.)
1шт.
57
R15023
WICK
WICK - oil
1шт.
58
A41508
GASKET
GASKET - drive hsg. to lever hsg.
1шт.
59
R15041
SPARE PART PIN - dowel, lever hsg. locating
1шт.
60
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
BOLT - lever hsg. (5/16 x 7/8" N.C., sckt. hd.)
1шт.
60
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
BOLT - lever hsg. (5/16 x 1-1/2" N.C., sckt. hd.)
5шт.
60
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT, (Replaces D32484) Hex, 1/4"-28 x 1", G5
9шт.
61
A25398
LEVER
LEVER - shifter, drive
1шт.
62
A25402
STUD
STUD - shift lever pivot
1шт.
63
A25400
PIN
PIN - shift, Serial Range: lever-plunger
1шт.
64
A25406
OIL SEAL
RING - lever pin retaining
1шт.
65
A40461
IGNITION SWITCH
SOLENOID ASSY. - (See Figure 68)
1шт.
66
R15067
SPARE PART SCREW - solenoid to starter hsg.
4шт.
67
A25370
CONNECTOR, ELEC
CONNECTOR CONNECTOR - starter switch
1шт.
68
A25394
PLUNGER
PLUNGER - solenoid
1шт.
69
A42008
WASHER
WASHER - retainer, boot
1шт.
70
A42308
BOOT
BOOT - solenoid (Replaces R21576)
1шт.
71
R21572
RETAINER
RETAINER - plunger spring, inner
1шт.
72
R21569
X
SPRING - plunger
1шт.
73
R21571
RETAINER
RETAINER - plunger spring, outer
1шт.
74
A40422
RING
RING - snap, plunger spring ret.
1шт.
Выбрано товаров: 47
