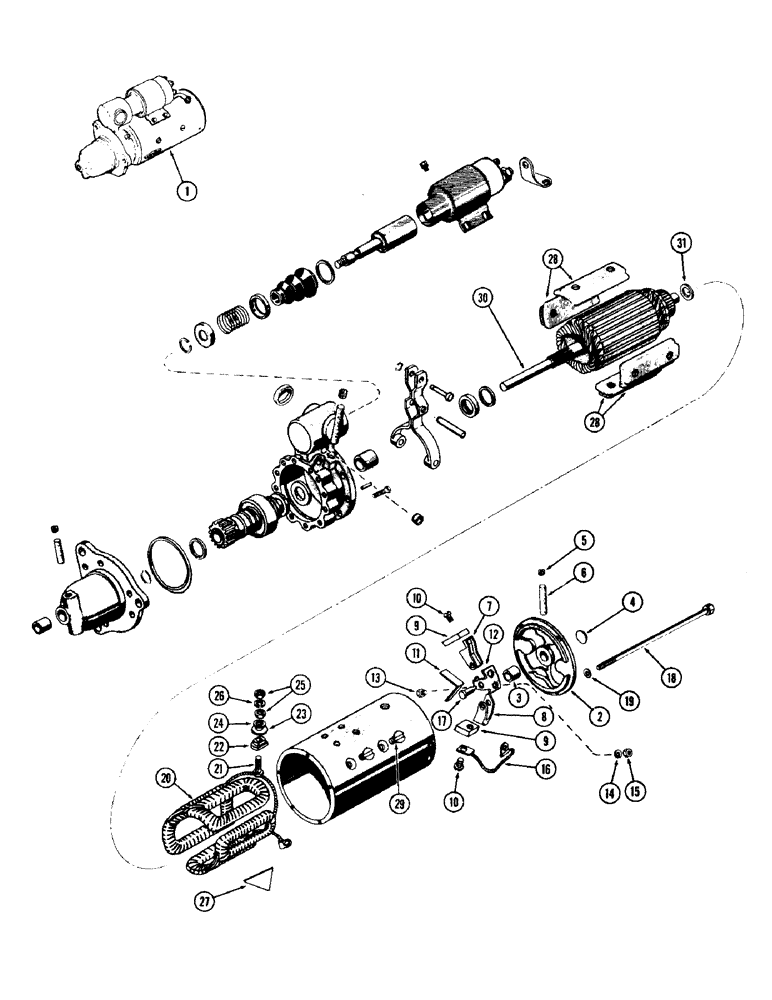

Запчасти Case IH 930-SERIES (064) - A23688 AND A34855 STARTER, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A34885

STARTER ASSY. - (Delco #1113665) (Order A23688)

1шт.

1

A23688

STARTER ASSY. - (Delco #1113646) (Repairs only), Includes Ref: 2 - 74

1шт.

104251A1R

REMAN-STARTER

930, Reman For New P/N A23688

1шт.

104251A1C

CORE-STARTER

Return Number

1шт.

2

R15019

FUNNEL

FRAME ASSY. - commutator end, Includes Ref: 3 - 6

1шт.

3

R15020

BUSHING

- commutator end

1шт.

4

R15021

PLUG

- (3/4" expansion)

1шт.

5

221-1041

PLUG

- oil wick hole (1/8" P.T., sltd. hd.)

1шт.

6

R15023

WICK

- oil, comm. end

1шт.

7

R21590

HOLDER

- brush, insulated

2шт.

8

A40217

HOLDER

- brush, grounded

1шт.

9

A20897

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

11

R15025

SPRING

- brush pressure, Includes Ref: 12 - 17

2шт.

R15029

BRUSH

HOLDER KIT - brush support (Not illust.)

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

1шт.

13

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- (#10-24 x 3/4" rd. hd.) (Replaces R15031)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - (#10-24 hex.)

4шт.

16

R15030

ELECTRICAL WIRE

LEAD - ground brush

1шт.

17

R15035

PIN

- brush holder

1шт.

18

A25373

BOLT

- thru

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

20

R21557

COIL ASSY.

- field, Includes Ref: 21

1шт.

21

R15017

STUD

- terminal

1шт.

22

R15010

BUSHING

INSULATOR - terminal stud

1шт.

23

A42010

WASHER

- insulated, term. stud

1шт.

24

R15013

WASHER

- terminal stud (25/64" I.D. x 11/16" O.D.)

1шт.

25

R15014

NUT

- terminal stud (3/8" N.C. hex.)

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud 3/8"

1шт.

27

A41977

RUBBER INSULATOR

INSULATION - field coil

2шт.

28

R15115

SHOE

- pole

4шт.

29

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

4шт.

30

A40800

ARMATURE

- starter

1шт.

31

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.
