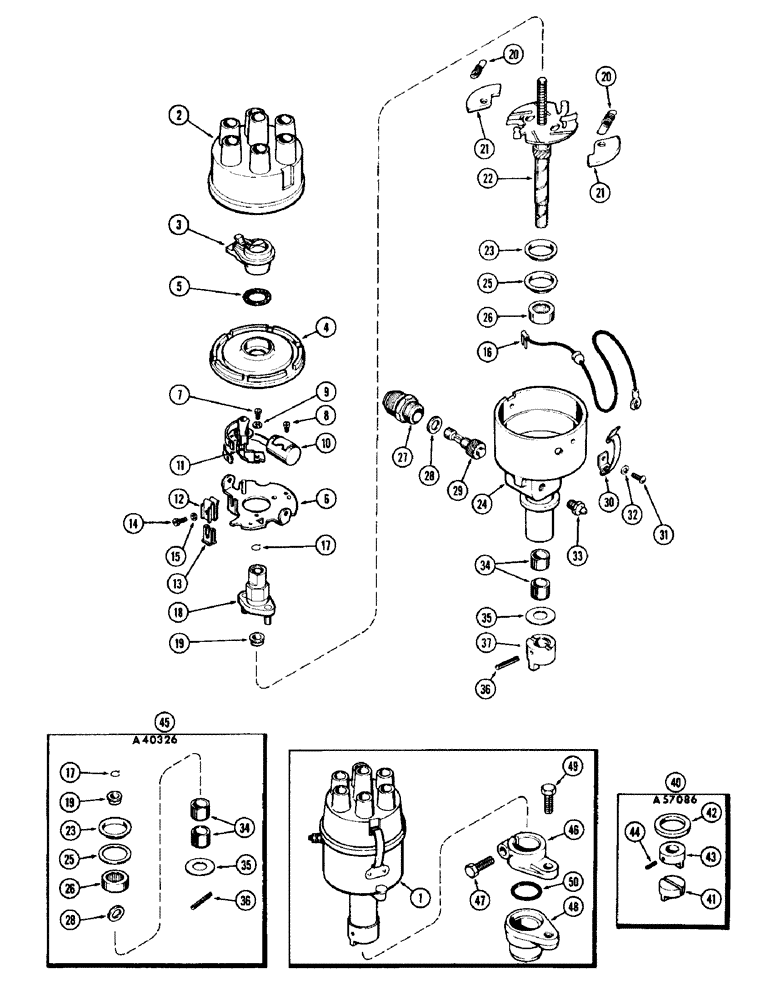

Запчасти Case IH 930-SERIES (063C) - A24505 DISTRIBUTOR, (377) SPARK IGNITION ENGINE, WITH TANG DRIVE, USED PRIOR TO ENGINE S/N 2174169 (04) - ELECTRICAL SYSTEMS

1

A24505

DISTRIBUTOR

ASSY. - (Auto-Lite or Prestolite IBT-6403) (Order 1-A57082 & 1-A57086), Includes Ref: 2 - 50

1шт.

2

A24565

CAP

- distributor

1шт.

3

A24566

ROTOR

ASSY.

1шт.

4

A24763

PLATE

ASSY., Includes Ref: 5

1шт.

5

A24764

WASHER

SEAL - dust (felt)

1шт.

A40330

PLATE

ASSY. - breaker (Not illust.), Includes Ref: 6 - 37

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - breaker (Order A40330)

1шт.

7

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points (#8-32 x 3/16" fill. hd.)

1шт.

8

169-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

9

195-509

WASHER,3/16"

- point screw (3/16 x 3/8 x 1/16")

1шт.

A40930

KIT

POINT & CONDENSER KIT - (Not illust.), Includes Ref: 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

11

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40930)

1шт.

12

A24774

CLIP

- retaining, insulator & lead

1шт.

13

A24773

INSULATOR

- clamp & lead

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- clip (#6-32 x 5/8" hex.)

1шт.

15

195-506

WASHER,#6

- clip screw (5/32 x 5/16 x 1/32")

1шт.

16

A24772

HARNESS

LEAD - primary wire

1шт.

17

A24756

RING - cam & stop plate retaining (See Ref. 45)

1шт.

18

A24831

PLATE ASSY. - cam & stop. w/oil pad

1шт.

19

A24757

SPACER - cam (See ref. 45)

1шт.

20

A24835

SET

SPRING - governor weight (Set of 2)

1шт.

21

A24754

WEIGHT - governor

2шт.

22

A24833

DRIVE SHAFT

SHAFT - drive

1шт.

23

A24753

WASHER

- thrust, upper (See ref. 45)

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - dist. base (Order ref. 1)

1шт.

25

A24752

WASHER

- thrust, upper (See ref. 45)

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 45)

1шт.

27

A24781

HOUSING ASSY. - tachometer drive, w/bushing

1шт.

28

A24755

WASHER - thrust, tach, drive shaft (See Ref. 45)

1шт.

29

A24761

SHAFT

- tachometer drive

1шт.

30

A40329

SPRING

CLAMP ASSY. - cap retaining, Includes Ref: 31 and 32

2шт.

31

A24779

SCREW - clamp (#8-32 x 15/16" rd. hd.)

1шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4-28 str.)

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - housing (Order ref. 45)

2шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft, lower (Order ref. 45)

1шт.

36

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, (See ref. 45) 1/8" x 13/16", Slotted

1шт.

37

NSS

NOT SOLD SEPARAT

COUPLING - dist. drive (Order ref. 40)

1шт.

40

A57086

KIT

COUPLING KIT, Includes Ref: 41 - 44

1шт.

41

NSS

NOT SOLD SEPARAT

COUPLING - distributor to oil pump drive

1шт.

42

NSS

NOT SOLD SEPARAT

SPACER -, Serial Range: distributor-block

1шт.

43

NSS

NOT SOLD SEPARAT

COLLAR - distributor shaft

1шт.

44

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

45

A40326

PACKAGE, REPAIR

REPAIR KIT - drive shaft

1шт.

46

A7622

CLAMP - distributor

1шт.

47

75-520

SCREW - clamp (5/16 x 1-1/4" N.C. rd. hd.)

1шт.

48

A7621

INSERT - distributor support

1шт.

49

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Insert & clamp Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

50

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor (1 x 1-1/4 x 1/8")

1шт.
