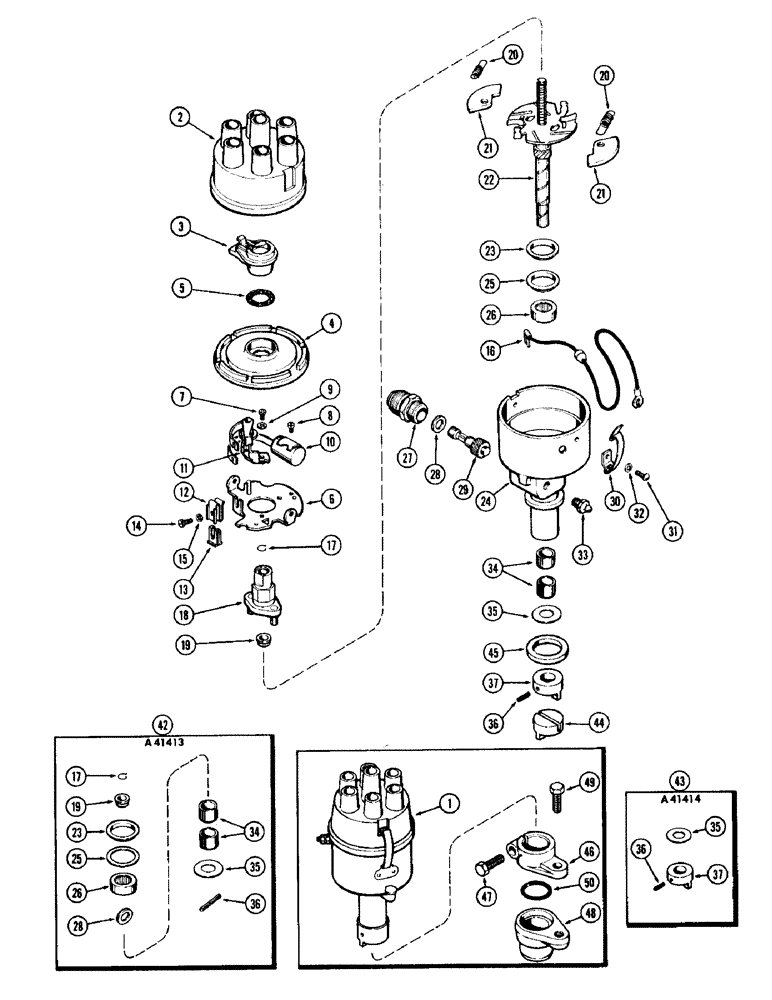

Запчасти Case IH 930-SERIES (063A) - A57082 DISTRIBUTOR, (377) SPARK IGNITION ENGINE, WITH TANG DRIVE, USED PRIOR TO ENGINE S/N 2174169 (04) - ELECTRICAL SYSTEMS

1

A57082

DISTRIBUTOR

ASSY. - (Auto-Lite or Pretsolite IBT-6405), Includes Ref: 2 - 50

1шт.

2

A24565

CAP

- distributor

1шт.

3

A24566

ROTOR

ASSY.

1шт.

4

A24763

PLATE

ASSY., Includes Ref: 5

1шт.

5

A24764

WASHER

SEAL - dust (felt), Includes Ref: 6 - 16

1шт.

A40330

PLATE

ASSY. - breaker (Not illust.)

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - breaker (Order A40330)

1шт.

7

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points (#8-32 x 3/16" fill. hd.)

1шт.

8

169-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

9

195-509

WASHER,3/16"

- point screw (3/16 x /8 x 1/16")

1шт.

A40930

KIT

POINTER & CONDENSER KIT - (Not illust.), Includes Ref: 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

11

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40930)

1шт.

12

A24774

CLIP

- retaining, insulator & lead

1шт.

13

A24773

INSULATOR

- clamp & lead

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- clip (#6-32 x 5/8" hex.)

1шт.

15

195-506

WASHER,#6

- clip screw (5/32 x 5/16 x 1/32")

1шт.

16

A24772

HARNESS

LEAD - primary wire

1шт.

17

A24756

RING - cam & stop plate retaining (See Ref. 42)

1шт.

18

A24831

PLATE ASSY. - cam & stop, w/oil pad

1шт.

19

A24757

SPACER - cam (See ref. 42)

1шт.

20

A24835

SET

SPRING - governor weight (Set of 2)

1шт.

21

A41388

WEIGHT - governor (Set of 2)

1шт.

22

A41412

SHAFT

- drive

1шт.

23

A24753

WASHER

- thrust, upper (See ref. 42)

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - dist. base (Order A57082)

1шт.

25

A24752

WASHER

- thrust, lower (See ref. 42), Includes Ref: 26

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 42)

1шт.

27

A24781

HOUSING ASSY. - tachometer drive, w/bushing

1шт.

28

A24755

WASHER - thrust, tach. drive shaft (See Ref. 42)

1шт.

29

A24761

SHAFT

- tahcometer drive

1шт.

30

A40329

SPRING

CLAMP ASSY. - cap retaining, Includes Ref: 31 and 32

2шт.

31

A24779

SCREW - clamp (#8-32 x 15/16" rd. hd.)

1шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4"-28 str.)

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - housing (Order ref. 42)

2шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft, lower (Order ref. 42 or 43)

1шт.

36

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, (See ref. 42 & 43) 1/8" x 13/16", Slotted

1шт.

37

NSS

NOT SOLD SEPARAT

COUPLING - dist. drive (Order ref. 43)

1шт.

42

A41413

BEARING

REPAIR KIT - drive shaft

1шт.

43

A41414

COUPLING

KIT - dist. drive

1шт.

44

NSS

NOT SOLD SEPARAT

COUPLING - distributor to oil pump gear (Order A57086) (See Figure 63C)

1шт.

45

NSS

NOT SOLD SEPARAT

SPACER - dist. to block (Order A57086) (See Figure 63C)

1шт.

46

A7622

CLAMP - distributor

1шт.

47

75-520

SCREW - clamp (5/16 x 1-1/4" N.C., rd. hd.)

1шт.

48

A7621

INSERT - distributor support

1шт.

49

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Insert & clamp Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

50

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor (1 x 1-1/4 x 1/8")

1шт.
