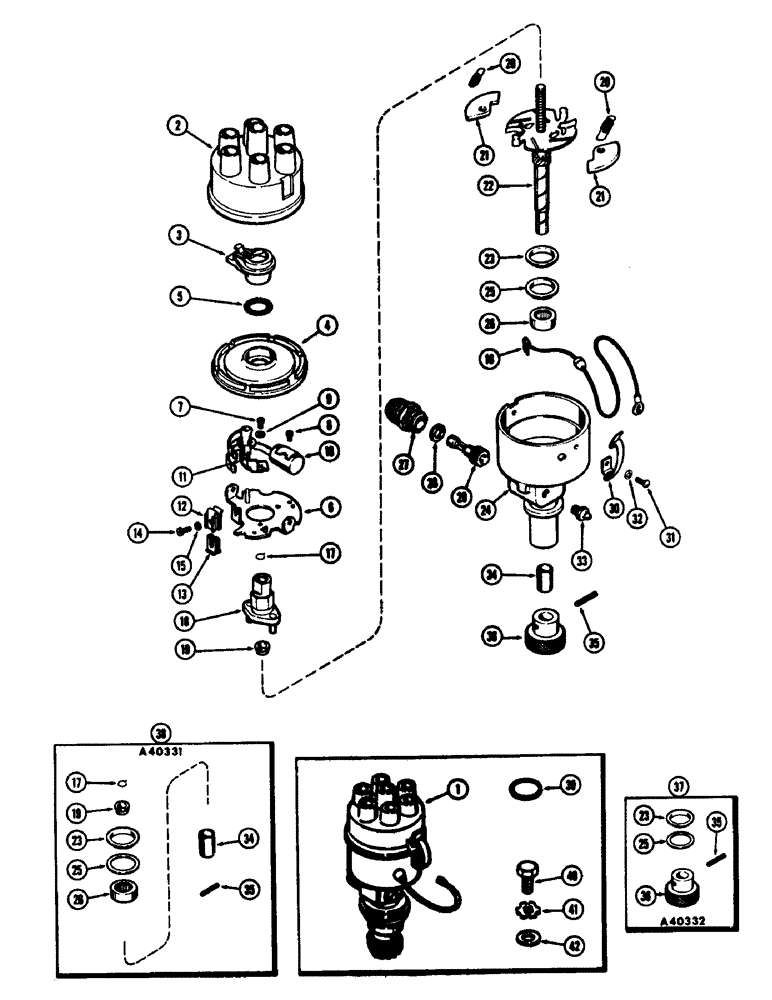

Запчасти Case IH 930-SERIES (062) - A34978 DISTRIBUTOR, (377) SPARK IGNITION ENGINE, WITH GEAR DRIVE, USED PRIOR TO ENGINE S/N 2174169 (04) - ELECTRICAL SYSTEMS

1

A34978

DISTRIBUTOR ASSY. - (Auto-Lite or Prestolite IBT-6404), Includes Ref: 2 - 42

1шт.

2

A24565

CAP

- distributor

1шт.

3

A24566

ROTOR

ASSY.

1шт.

4

A24763

PLATE

ASSY., Includes Ref: 5

1шт.

5

A24764

WASHER

SEAL - dust (felt)

1шт.

A40330

PLATE

ASSY. - breaker, Includes Ref: 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - breaker (Order A40330)

1шт.

7

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points (#8-32 x 3/16" fill. hd.)

1шт.

8

169-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

9

195-509

WASHER,3/16"

- point screw (3/16 x 3/8 x 1/16")

1шт.

A40930

KIT

POINT & CONDENSER KIT, Includes Ref: 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

11

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40930)

1шт.

12

A24774

CLIP

- retaining, insulator & lead

1шт.

13

A24773

INSULATOR

- clamp & lead

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- clip (#6-32 x 5/8" hex.)

1шт.

15

195-506

WASHER,#6

- clip screw (5/32 x 5/16 x 1/32")

1шт.

16

A24772

HARNESS

LEAD - primary wire

1шт.

17

A24756

RING - cam & stop plate retaining (See Ref. 38)

1шт.

18

A24831

PLATE ASSY. - cam & stop, w/oil pad

1шт.

19

A24757

SPACER - cam (See ref. 38)

1шт.

20

A24835

SET

SPRING - governor weights (Set of 2)

1шт.

21

A41388

WEIGHT - governor (Set of 2)

1шт.

22

A41387

SHAFT

- drive

1шт.

23

A24753

WASHER

- thrust, upper (See ref. 37 & 38)

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - dist. base (Order A34978)

1шт.

25

A24752

WASHER

- thrust, lower (See ref. 37 & 38)

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 38)

1шт.

27

A24781

HOUSING ASSY. - tachometer drive, w/bushing

1шт.

28

A24755

WASHER - thrust, tach. drive shaft

1шт.

29

A24761

SHAFT

- tachometer drive

1шт.

30

A40329

SPRING

CLAMP ASSY. - cap retaining, Includes Ref: 31 and 32

2шт.

31

A24779

SCREW - clamp (#-32 x 15/16" rd. hd.)

1шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4"-28 str.)

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - housing (Bronze) (Order ref. 38)

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, (See Ref. 37 & 38) 1/8" x 15/16", Slotted

1шт.

36

NSS

NOT SOLD SEPARAT

GEAR - drive (Order ref. 37)

1шт.

37

A40332

GEAR

REPAIR KIT - gear & thrust washers

1шт.

38

A40331

BEARING

REPAIR KIT - thrust washers & bearings

1шт.

39

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor (1-1/8" x 1-3/8 x 1/8")

1шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Distributor clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

41

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - (3/8" int. skpf.)

2шт.

42

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.
