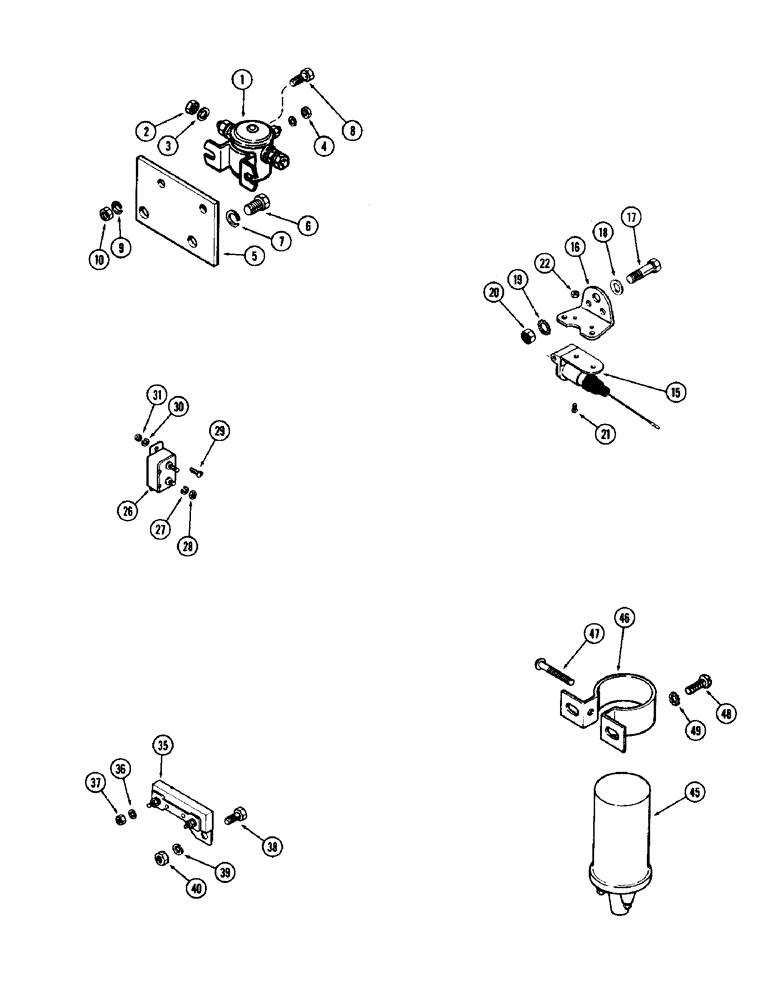

Запчасти Case IH 930-SERIES (061A) - ELECTRICAL ATTACHING PARTS (04) - ELECTRICAL SYSTEMS

1

A57069

SOLENOID

ASSY. - heater (Diesel only)

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

Solenoid terminal Jam, 5/16"-24, G5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

193-1000

NUT,Keps, w/LW,#10-32

- solenoid terminal (#10 N.F. hex.)

2шт.

5

A34047

PLATE ASSY.

PLATE - solenoid mounting

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Mounting plate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid to plate Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

16

A27752

BEARING

BRACKET - auxiliary socket mounting

1шт.

17

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

18

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

1шт.

19

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- socket to brkt. (#10 x 1/2" N.F., rd. hd.)

2шт.

22

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. hex., Keps)

2шт.

26

A22877

BREAKER,40A

ASSY. - circuit

1шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, , Terminal studs #10

2шт.

28

129-27

NUT,Hex, #10 - 32

- terminal studs (#10 N.F. hex.)

2шт.

29

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- breaker mtg. (#8 x 1/2" N.C., rd. hd.)

2шт.

30

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - (#8 ext. skpf.)

2шт.

31

129-6

NUT,#8-32

2шт.

35

A24504

RESISTOR

ASSY. - ballast (spark ign. only)

1шт.

36

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

37

129-6

NUT,#8-32

Terminal studs #8-32

2шт.

38

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Resistor mtg. Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

45

A40778

COIL

ASSY. - ignition

1шт.

46

G46106

BRACKET

CLAMP - coil

1шт.

47

187-540

SCREW - clamp (#10 x 1-1/2" self-tapping, rd. hd.)

2шт.

48

75-510

HANDBOOK

SCREW - coil mtg. (5/16 x 5/8" N.C., rd. hd.)

2шт.

49

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.
