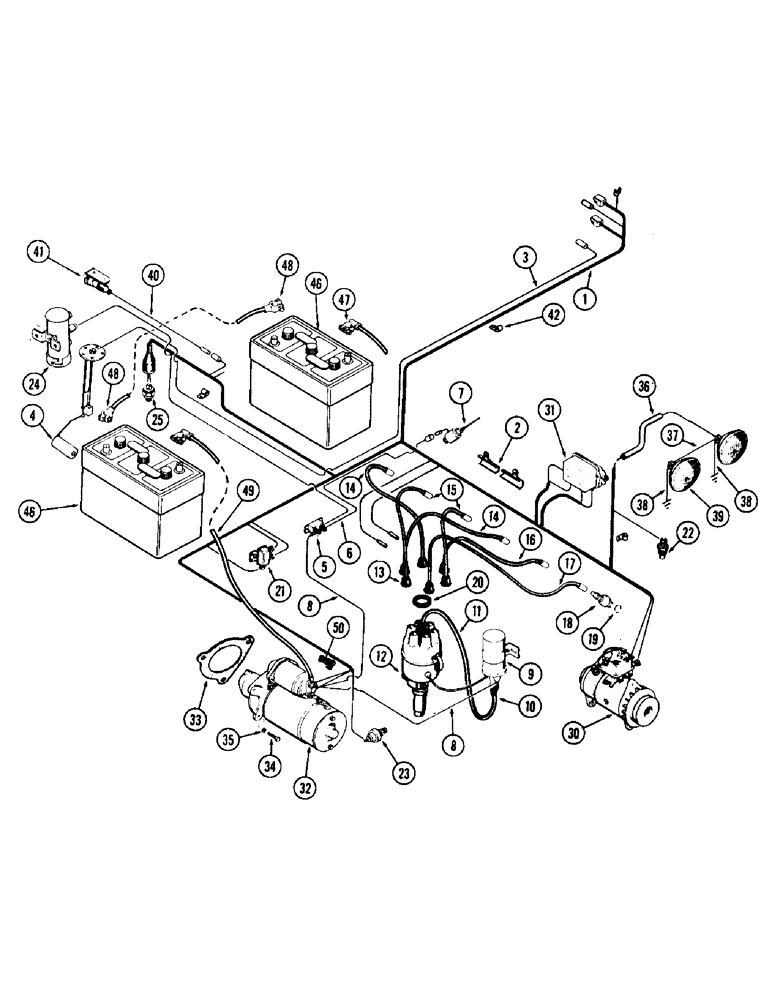

Запчасти Case IH 930-SERIES (059E) - MAIN WIRING, (377) SPARK IGNITION ENGINE, USED WITH CAB (04) - ELECTRICAL SYSTEMS

1

A57965

HARNESS ASSY. - w/tail lamp connector (1st used trac. ser. no. 8347842)

1шт.

1

A57816

HARNESS

ASSY. - w/out tail lamp connector (used prior to trac. ser. no. 8347842)

1шт.

2

A28674

CONDUIT - wire harness

1шт.

3

A24095

WIRE - fuel sending unit (92" long)

1шт.

4

A24004

SENDER UNIT

UNIT ASSY. - fuel sending (Gas only)

1шт.

5

A24504

RESISTOR

- circuit, primary (12 volt)

1шт.

6

A33321

WIRE - resistor to carburetor solenoid (19" long)

1шт.

7

A33219

SOLENOID

ASSY. - fuel shut-off (See Figure 45A)

1шт.

8

A22879

WIRE - coil & resistor to starter solenoid (18" long)

2шт.

9

A40778

COIL

ASSY. - ignition (See page 61B)

1шт.

10

G46803

BOOT

NIPPLE - coil wire (for ignition coil)

1шт.

11

A29180

CABLE

WIRE - coil to distributor, hi-tension (12" long)

1шт.

12

A34978

DISTRIBUTOR ASSY. - (Auto-Lite #6406) (See Figure 62)

1шт.

13

A29338

COVER

NIPPLE - hi-tension wires (for distributor)

7шт.

14

A20143

ELECTRICAL WIRE

WIRE - spark plug, #3 & #6 cylinders (15" long)

2шт.

15

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 & #5 cylinders (11" long)

2шт.

16

A26800

CABLE

WIRE - spark plug, #2 cylinder (21" long)

1шт.

17

A26768

CABLE

WIRE - spark plug, #1 cylinder (26-1/2" long)

1шт.

18

G44840

SPARK PLUG

PLUG ASSY. - spark (Gas)

6шт.

18

A20905

SPARK PLUG

PLUG ASSY. - spark (L.P.)

6шт.

19

G46839

GASKET

- spark plug

1шт.

20

A23258

RING - tie, plug wires (3/4" I.D. x 1-9/64" O.D. x 3/16")

1шт.

20

A20265

RING - tie, plug wires (7/16" I.D. x 15/16" O.D. x 1/4")

1шт.

21

A22877

BREAKER,40A

- circuit

1шт.

22

A21462

SENDER UNIT

UNIT - sending, engine temperature (used w/A24080 gauge) (See Figure 58)

1шт.

22

A13795

SENDER UNIT

UNIT - sending, engine temperature (used w/A57890 gauge) (See Figure 58)

1шт.

23

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

24

A33181

FUEL PUMP ASSY. - (Gas) (See Figure 45A)

1шт.

25

A20990

SWITCH

- safety, neutral start

1шт.

30

A57751

GENERATOR ASSY. - (See Figure 61 & 71A)

1шт.

31

A57752

REGULATOR

ASSY. - voltage (See Figure 60)

1шт.

32

A57092

X

STARTER ASSY. - (See Figure 66)

1шт.

33

A27933

GASKET

- starter

1шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

34

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- starter (1/2 x 3" N.C. hex.)

1шт.

35

92-8

LOCK WASHER,1/2"

3шт.

36

A11943

WIRE - head lamp (27" long)

1шт.

37

A11764

WIRE - jumper, head lamps (16" long)

1шт.

38

A33439

WIRE - head lamp ground (12" long)

2шт.

39

A24572

LAMP

HEAD LAMP ASSY. - (See Figure 72)

2шт.

40

A34809

WIRE - auxiliary outlet socket (37-1/4" long)

1шт.

41

A8170

SOCKET

ASSY. - auxiliary (See Figure 61A)

1шт.

42

A22880

CLIP

- wires

1шт.

46

M20396

BATTERY - (6 volt)

2шт.

47

A24017

CABLE

- battery ground (21" long)

1шт.

48

A24019

CABLE

- battery to battery (58" long)

1шт.

49

A27987

CABLE

- battery to starter solenoid (44" long)

1шт.

50

A21753

CAP

BOOT - starter solenoid cable

1шт.
