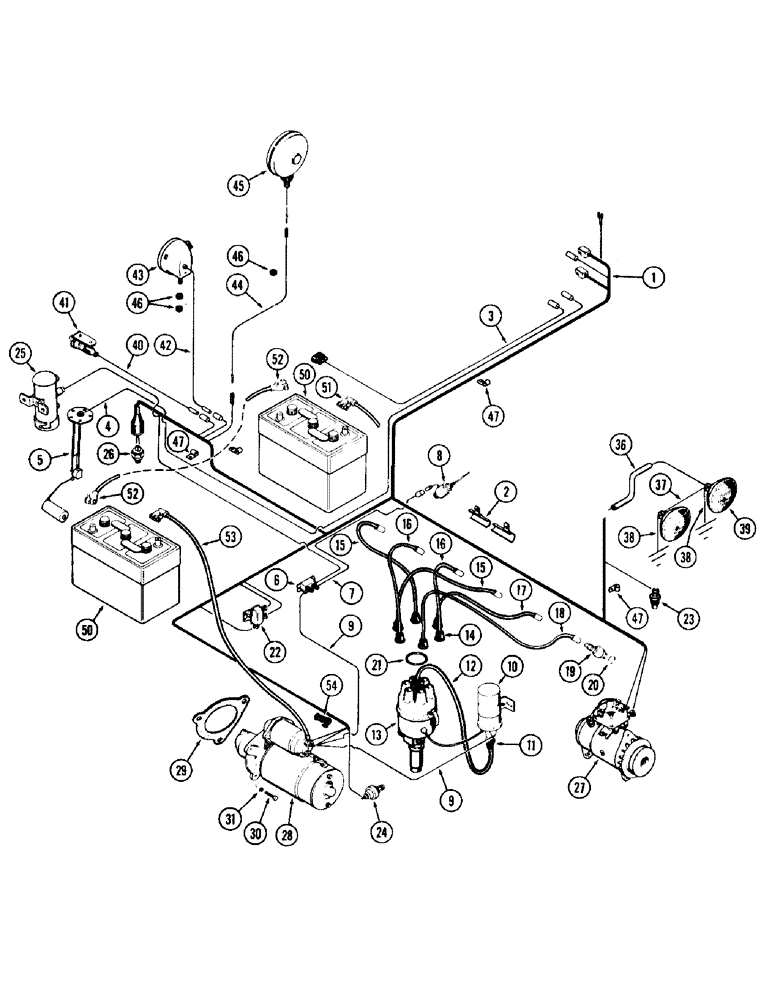

Запчасти Case IH 930-SERIES (059A) - MAIN WIRING, (377) SPARK IGNITION ENGINE, USED WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A34872

HARNESS ASSY. - (used w/flashing warning lamp) (1st used trac. ser. no. 8308485)

1шт.

1

A24090

HARNESS

ASSY. - (used w/out flashing warning lamp) (used prior to trac. ser. no. 8308485)

1шт.

2

A28674

CONDUIT - wire harness

1шт.

3

A32640

WIRE - cultivator lights (48" long)

1шт.

4

A24095

WIRE - fuel sending unit (Gasoline only) (92" long)

1шт.

5

A24004

SENDER UNIT

UNIT ASSY. - sending, fuel (Gasoline only)

1шт.

6

A24504

RESISTOR

- circuit, primary (12 volt)

1шт.

7

A33321

WIRE - resistor to carburetor solenoid (19" long)

1шт.

8

A33219

SOLENOID

ASSY. - fuel shut-off (See Figure 45A)

1шт.

9

A22879

WIRE - coil & resistor to starter solenoid (18" long)

2шт.

10

A40778

COIL

ASSY. - ignition (See Figure 61A)

1шт.

11

G46803

BOOT

NIPPLE - coil wire (for ignition coil)

1шт.

12

A29180

CABLE

WIRE - coil to distributor, hi-tension (12" long)

1шт.

13

A34978

DISTRIBUTOR ASSY. - (See Figure 63) (Auto-Lite #6404)

1шт.

13

A57082

DISTRIBUTOR

ASSY. - (See Figure 63B) (Auto-Lite #6405)

1шт.

14

A29338

COVER

NIPPLE - hi-tension wires (for distributer)

7шт.

15

A20143

ELECTRICAL WIRE

WIRE - spark plug, #3 & #6 cylinders (15" long)

2шт.

16

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 & #5 cylinders (11" long)

2шт.

17

A26800

CABLE

WIRE - spark plug, #2 cylinder (21" long)

1шт.

18

A26768

CABLE

WIRE - spark plug, #1 cylinder (26-1/2" long)

1шт.

19

G44840

SPARK PLUG

PLUG ASSY. - spark, (gasoline)

6шт.

19

A20905

SPARK PLUG

PLUG ASSY. - spark, (LP gas)

6шт.

20

G46839

GASKET

- spark plug

1шт.

21

A23258

RING - tie, plug wires (3/4" I.D. x 1-9/64" O.D. x 3/16")

1шт.

21

A20265

RING - tie, plug wires (7/16" I.D. x 15/16" O.D. x 1/4")

1шт.

22

A22877

BREAKER,40A

- circuit (Con'td. from Fig. 59A)

1шт.

23

A21462

SENDER UNIT

UNIT - sending, engine temperature (used w/A24080 gauge) (See Fig. 58)

1шт.

23

A13795

SENDER UNIT

UNIT - sending, engine temperature (used w/A57890 gauge) (See Fig. 58)

1шт.

24

A13794

TRANSMITTER

SWITCH - engine oil pressure

1шт.

25

A33181

FUEL PUMP ASSY. - (gas) (See Fig. 45A)

1шт.

26

A20990

SWITCH

- safety, neutral start

1шт.

27

A33983

GENERATOR

ASSY. - (See Figures 60 & 71)

1шт.

28

A57092

X

STARTER ASSY. - (Delco-Remy 1108340) (See Fig. 66)

1шт.

28

A57092

X

STARTER ASSY. - (Delco-Remy 1108340) (See Figure 66)

1шт.

28

A20873

STARTER ASSY. - (Delco-Remy 1107877) (See Figure 67A) (Order A57092)

1шт.

29

A27933

GASKET

- starter

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

30

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- starter (1/2 x 3" N.C. hex.)

1шт.

31

92-8

LOCK WASHER,1/2"

3шт.

36

A11943

WIRE - head lamp (27" lamp)

1шт.

37

A11764

WIRE - jumper, head lamps (16" long)

1шт.

38

A33439

WIRE - head lamp ground (12" long)

2шт.

39

A24572

LAMP

HEAD LAMP ASSY. - (See page 73)

2шт.

40

A34809

WIRE - auxiliary outlet socket (37-1/4" long)

1шт.

41

A8170

SOCKET

ASSY. - auxiliray outlet (See page 61B)

1шт.

42

A32539

WIRE - tail lamp (G.P.) (68" long)

1шт.

42

A34603

WIRE - tail lamp (West.) (80" long)

1шт.

43

A20965

LAMP BASE

LAMP ASSY. - stop & tail (See page 73)

1шт.

44

A34889

WIRE - flasher lamp (47" long) (G.P.)

1шт.

44

A34858

WIRE - flasher lamp (68" long) (West.)

1шт.

45

A34853

LAMP

FLASHER ASSY. - (See page 73D)

1шт.

46

A27338

GROMMET

- wires

3шт.

47

A22880

CLIP

- wire retaining

1шт.

50

M20396

BATTERY - (6 volt)

2шт.

51

A24017

CABLE

- battery ground (21" long)

1шт.

52

A24019

CABLE

- battery to battery (58" long)

1шт.

53

A27987

CABLE

- battery to starter solenoid (44" long)

1шт.

54

A21753

CAP

BOOT - starter solenoid terminal

1шт.
