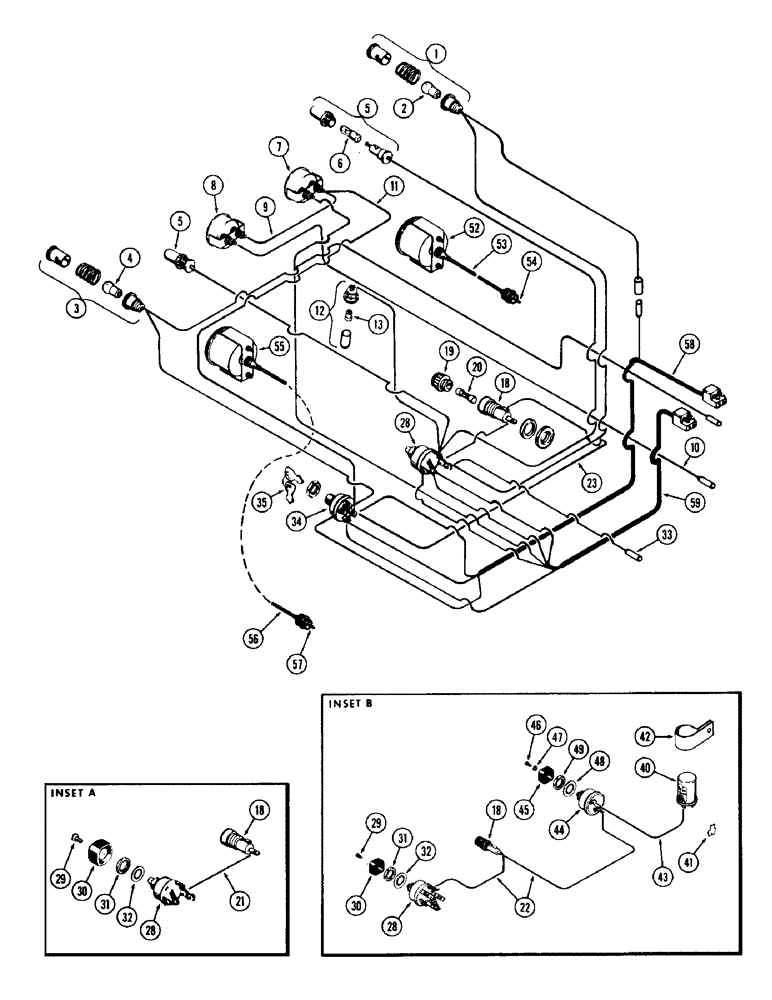

Запчасти Case IH 930-SERIES (058) - INSTRUMENTS AND WIRING, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY. - generator warning, Includes Ref: 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24084

LAMP

ASSY. - oil pressure warning, Includes Ref: 4

1шт.

4

A24354

BULB

- warning lamp

1шт.

5

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes Ref: 6

2шт.

6

A22349

BULB

- panel lamp

1шт.

7

A57890

GAUGE

ASSY. - eng. temperature (Replaces A24080) (color band type) (used w/A13795 sender)

1шт.

7

A24080

GAUGE

ASSY. - eng. temperature (Order A57890) (number type) (use w/A13795 sender)

1шт.

8

A24079

GAUGE ASSY.

- fuel (Gas only)

1шт.

9

A11783

ELECTRICAL WIRE

WIRE - temp. gauge to fuel gauge (Gas only) (13" long) (blue)

1шт.

10

A24077

WIRE - fuel gauge to connector (Gas only) (13" long) (blue)

1шт.

11

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to ign. switch (15" long) (green)

1шт.

12

A24086

LAMP

ASSY. - gear shift indicator, Includes Ref: 13

1шт.

13

A22349

BULB

- indicator lamp

1шт.

18

A22874

HOLDER

ASSY - fuse, Includes Ref: 19

1шт.

19

A10958

CAP

- fuse holder

1шт.

20

223-20

FUSE,20 Amp, Type SFE

- (20 amp.)

1шт.

21

A22875

ELECTRICAL WIRE

WIRE - fuse holder to light switch (4" long) (used w/out flasher lamp) (see inset A)

1шт.

22

A34865

WIRE - flashing switch to fuse holder & light switch (use w/flasher lamp) (see inset B)

1шт.

23

A22876

ELECTRICAL WIRE

WIRE - fuse holder to ign. switch (8-1/2" long) (red)

1шт.

28

A20620

SWITCH

ASSY. - light, Includes Ref: 29 - 32

1шт.

29

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob, switch

1шт.

30

A20465

KNOB

- switch

1шт.

31

A20467

NUT

- retaining, switch

1шт.

32

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - (5/8" int. skpf.)

1шт.

33

A32152

WIRE - light switch to ocnnector (14" long) (red)

1шт.

34

A24511

SWITCH

ASSY - ignition, w/key (Gas) Includes Ref 35

1шт.

35

A24509

KEY

- ignition (Set of 2)

1шт.

40

A34867

FLASHER UNIT

FLASHER - (12 volt)

1шт.

41

A34862

KIT

ADAPTER KIT - flasher by pass (required for steady light)

1шт.

42

A34868

CLAMP

BRACKET - flasher mounting

1шт.

43

A34861

WIRE - flasher to switch (8" long)

1шт.

44

A34866

SWITCH

- flasher light

1шт.

45

A20465

KNOB

- flasher switch

1шт.

46

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

47

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Knob screw #8

1шт.

48

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - switch ret. (5/8" int. skpf.)

1шт.

49

A20467

NUT

- switch retaining

1шт.

52

A32146

TACHOMETER

SPEEDOMETER ASSY. - tractor

1шт.

53

A33299

CABLE

ASSY. - speedometer (flexible), Includes Ref: 54

1шт.

54

A24523

KIT

SHAFT - flexible cable

1шт.

55

A57179

TACHOMETER

ASSY. - (Replaces A32143)

1шт.

56

A24102

CABLE

ASSY. - tachometer (flexible), Includes Ref: 57

1шт.

57

A24523

KIT

SHAFT - tachometer cable (flexible)

1шт.

58

A24076

PLUG

HARNESS ASSY. - (Red plug)

1шт.

59

A21613

HARNESS

ASSY. - (Black plug) (used w/out cab.)

1шт.

59

A21613

HARNESS

ASSY. - (Black plug) (used w/cab) (1st used trac. ser. no. 8347842)

1шт.

59

A57812

HARNESS ASSY. - (Black plug) (used w/cab) (used prior to trac. ser. no. 8347842)

1шт.
