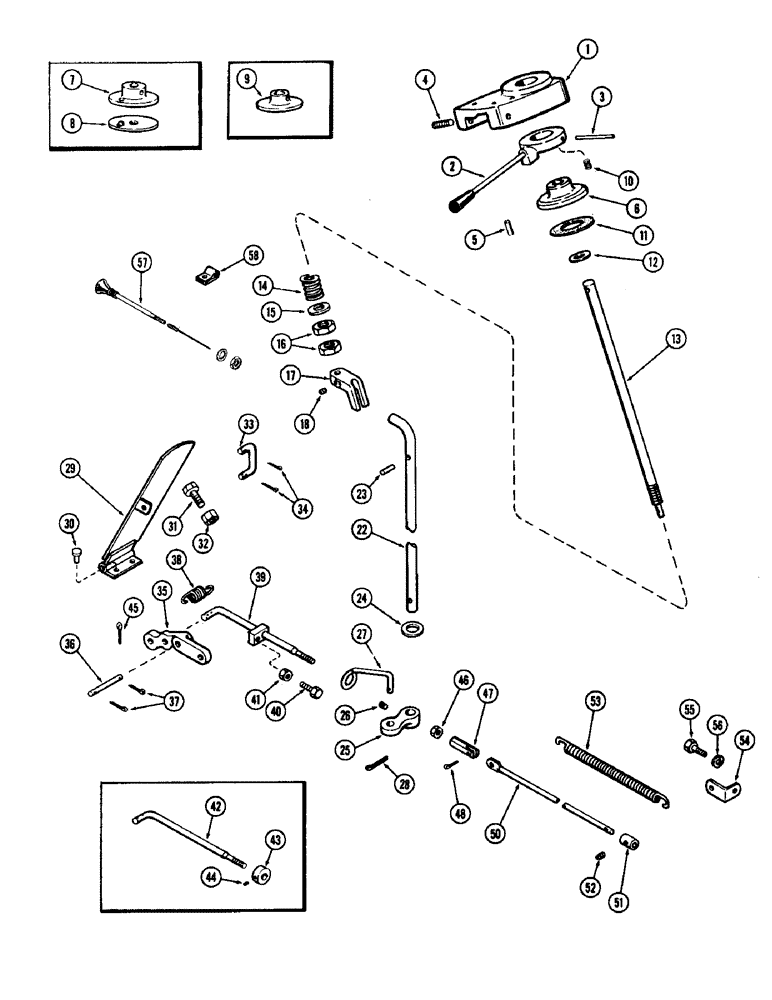

Запчасти Case IH 930-SERIES (052) - THROTTLE LINKAGE, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A33147

CAP - steering column

1шт.

2

A34045

LEVER

- hand, throttle control

1шт.

3

138-2021

PIN,3/16" x 2 1/2", Coiled

1шт.

4

176-394

SCREW,Sl Hdls, 1/4" - 20 x 3/4", Oval Pt

- stop (1/4 x 1-1/4" N.C. slot hd. oval pt.)

2шт.

5

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

6

A57916

LARGE PLATE

PLATE - friction (1st used trac. ser. no. 8354609)

1шт.

7

A57028

LARGE PLATE

PLATE - friction disc (used w/A57029 disc) (used trac. ser. nos. 8308968 to 8354609) (Order A57916)

2шт.

8

A57029

DISC

- throttle plate (used w/A57028 plate) (used trac. ser. nos., Serial Range: 8308968-8354609)

1шт.

9

A32893

X

PLATE - friction disc, (used prior to trac. ser. no. 8308968) (Order 1-A57028 plate & 1-A57029 disc)

1шт.

10

A8012

SPRING

- hand lever

1шт.

11

A11969

GASKET

DISC - friction (1-9/32 x 2-1/2 x 1/8" cork)

1шт.

12

A32838

WASHER

- friction (17/32 x 1-1/4 x 14 Ga.)

1шт.

13

A33149

SHAFT - throttle linkage, upper

1шт.

14

A34113

SPRING

- upper shaft

1шт.

15

195-33

WASHER,1/2"

- spring seat (17/32 x 1-1/16 x 13 Ga.)

1шт.

16

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

17

A23917

FORK

- hand lever shaft

1шт.

18

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW - set, 1/4 x 7/16" N.C. socket hd. cup pt.

1шт.

22

A23919

SHAFT - throttle linkage, lower

1шт.

23

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Lower shaft 3/16" x 1 1/4", Slotted

1шт.

24

195-33

WASHER,1/2"

- lower shaft (17/32 x 1-1/16 x 13 Ga.)

1шт.

25

A23923

LEVER - lower shaft

1шт.

26

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" N.C. sckt. hd. cup pt.

1шт.

27

A23931

ROD - hand & foot linkage

1шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

29

A33150

PEDAL - foot, throttle control

1шт.

30

48-410

RIVET - 1/4 x 5/8" oval hd.

2шт.

31

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Pedal adj. Hex, 1/4"-20 x 1", G5

1шт.

32

25-104

NUT,1/4"-20, G5

2шт.

33

A33151

LINK - foot pedal

1шт.

34

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

35

A33152

LEVER - foot throttle

1шт.

36

A23927

PIN - pivot, foot throttle control lever

1шт.

37

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

38

A23933

SPRING

- torsion, foot pedal

1шт.

39

A57243

ROD - throttle control, rear (1st used trac. S/N 8322855)

1шт.

40

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Rod

1шт.

41

25-154

JAM NUT,Jam, 1/4"-28, G5

- lock, rod bolt (1/4" N.F. hex, jam)

1шт.

42

A33153

ROD - rear, throttle control (used prior to trac. S/N 8322855) (Order 1-A57241, 1-14-416 & 1-25-154)

1шт.

43

A23929

COLLAR

- rear control rod (used prior to trac. S/N/ 8322855)

1шт.

44

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW - set, 1/4 x 5/16" N.F. socket hd.

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

46

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex.

1шт.

47

A33154

YOKE

- rear throttle rod

1шт.

48

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

50

A23850

ROD - throttle, front

1шт.

51

A20846

COLLAR

- stop, front throttle rod

1шт.

52

85-46

SET SCREW,Sq Hd, 1/4"-20 x 3/8"

SCREW - collar, 1/4 x 5/8" N.C. sq. hd. cup pt.

1шт.

53

A22619

SPRING

- return

1шт.

54

A22620

CLIP

- return spring anchor

1шт.

55

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

1шт.

57

A36578

ROD

- choke (Gas & LP)

1шт.

58

A27039

CLIP - choke rod

1шт.
