Запчасти Case IH 930-SERIES (050) - A32619 REGULATOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

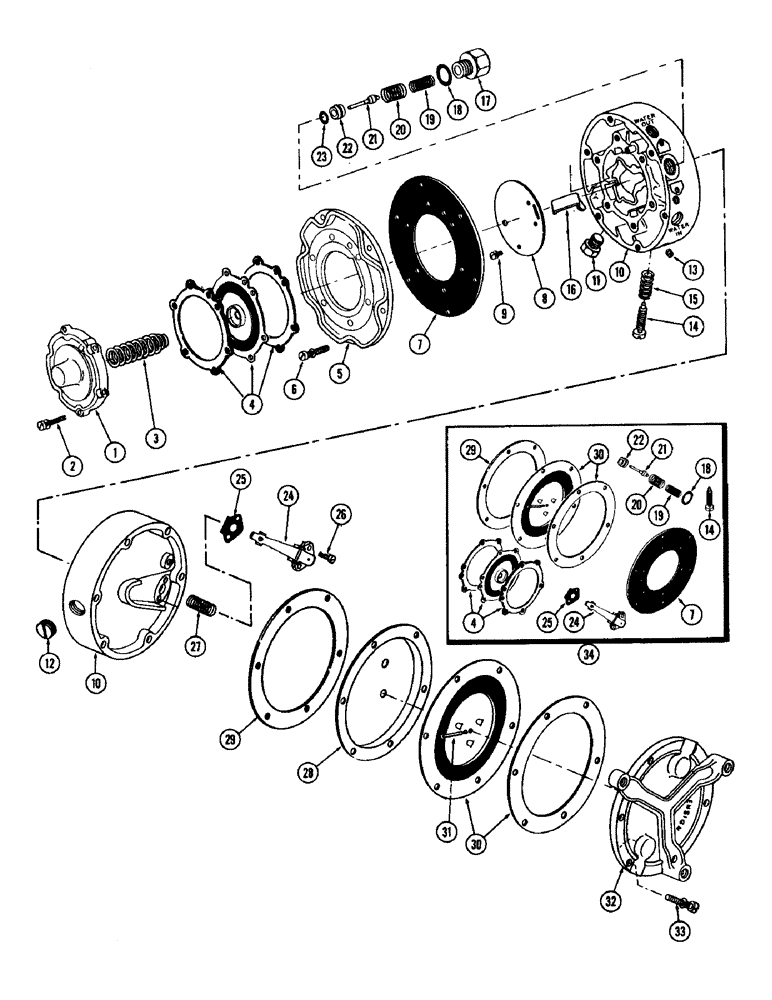

Схема запчастей Case IH 930-SERIES - (050) - A32619 REGULATOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
24
33
1
14
12
16
15
21
24
13
27
23
26
25
5
3
30
29
19
4
11
18
7
6
9
10
34
29
18
8
28
21
4
25
30
17
22
2
22
20
31
32
19
7
14
20
10

Артикул

Название

Примечание

Количество

A32619

REGULATOR ASSY. - Not. illust., Includes Ref: 1 - 33

1шт.

1

B50110

COVER - pressure regulator

1шт.

2

B50037

SCREW - cover

6шт.

3

B50153

SPRING - high pressure

1шт.

4

A40067

DIAPHRAGM ASSY. - high pressure

1шт.

Part of P/N A40081 Repair Kit

1шт.

5

A40068

COVER - regulator

1шт.

6

B50035

SCREW - cover

6шт.

7

A40069

MANUAL, OPERATORS

GASKET - cover

1шт.

Part of P/N A40081 Repair Kit

1шт.

8

A40071

PLATE - partition

1шт.

9

A40070

SCREW - partition

2шт.

10

A40073

BODY - regulator

1шт.

11

221-1661

PLUG

- body (1/2" P.T., hex. hd.)

3шт.

12

221-44

PLUG - body (1/2" P.T., sltd. hd.)

1шт.

13

A40074

SCREW - bleed

1шт.

14

B50024

SPRING - idle adjusting

1шт.

Part of P/N A40081 Repair Kit

1шт.

15

B50022

SPRING - idle adj. screw

1шт.

16

A40072

LEVER - high pressure valve

1шт.

17

A40066

SPLINED COUPLING

FITTING - spring retainer

1шт.

18

A24538

GASKET

- retainer fitting

1шт.

Part of P/N A40081 Repair Kit

1шт.

19

A40064

SPRING - regulator valve

1шт.

Part of P/N A40081 Repair Kit

1шт.

20

A40063

SPRING - valve retainer

1шт.

Part of P/N A40081 Repair Kit

1шт.

21

A40062

VALVE - regulator

1шт.

Part of P/N A40081 Repair Kit

1шт.

22

A40061

SEAT - regulator valve

1шт.

Part of P/N A40081 Repair Kit

1шт.

23

B50179

GASKET - valve seat

1шт.

24

A40076

VALVE - low pressure

1шт.

Part of P/N A40081 Repair Kit

1шт.

25

A40075

GASKET - low pressure valve

1шт.

Part of P/N A40081 Repair Kit

1шт.

26

A40077

SCREW - low pressure valve

2шт.

27

B50121

SPRING - low pressure valve

1шт.

28

B50175

PLATE - partition

1шт.

29

B50177

GASKET - partition

1шт.

Part of P/N A40081 Repair Kit

1шт.

30

A40079

DIAPHRAGM

ASSY. - low pressure, Includes Ref: 31

1шт.

Part of P/N A40081 Repair Kit

1шт.

31

A40078

PIN - push

1шт.

32

A40080

PLATE - support

1шт.

33

B50037

SCREW - plate

6шт.

34

A40081

KIT repair, Includes: Ref. 4, 7, 14, 18 - 22, 24, 25, 29 and 30

1шт.

Выбрано товаров: 47
