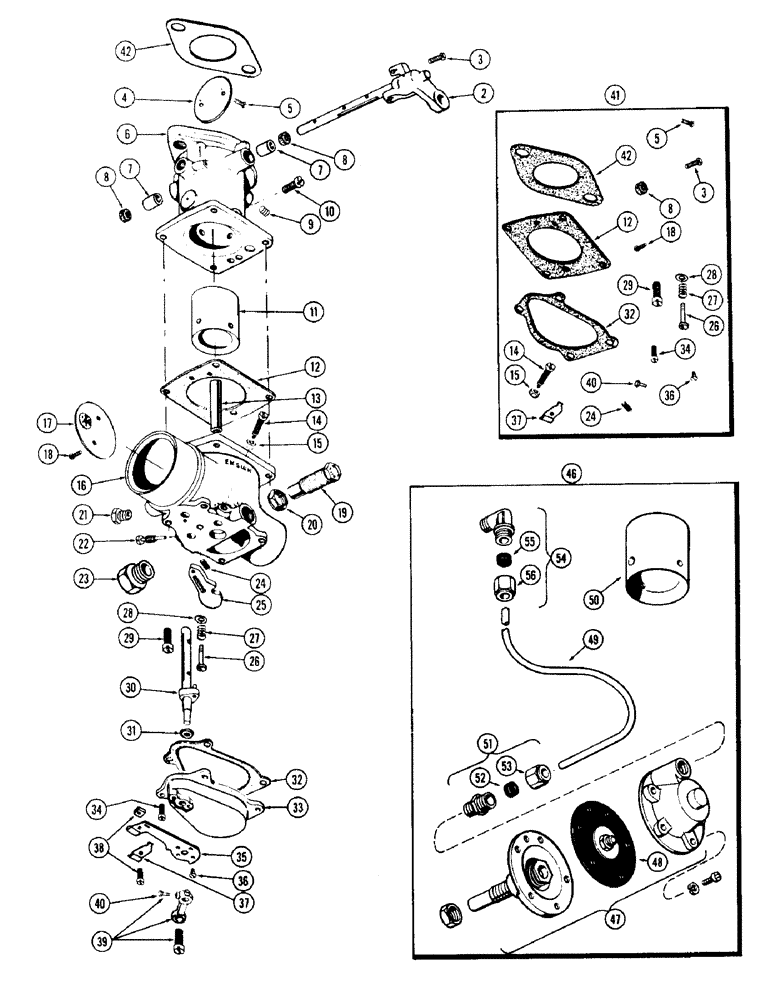

Запчасти Case IH 930-SERIES (049A) - A23851 CARBURETOR WITHOUT ECONOMIZER, (377) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE S/N 2170189 (03) - FUEL SYSTEM

A23851

X

CARBURETOR ASSY. - (See item 46) (Order A57168, A57169, 222-21 & 222-41), Includes Ref: 2 - 40

1шт.

2

A40558

SHAFT ASSY. - throttle, Includes Ref: 3

1шт.

3

F20881

SCREW - throttle stop (Replaces B50014)

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

4

B50080

DISC - throttle

1шт.

5

B50143

SCREW - throttle disc

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

6

A40733

TUBE ASSY. - throttle, Includes Ref: 7

1шт.

7

B50202

BUSHING - throttle shaft

2шт.

8

B50145

SEAL - dust, throttle shaft

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

9

B50058

PLUG - 1/8" pipe

1шт.

10

B50040

SCREW - venturi retaining

1шт.

11

B50093

VENTURI

1шт.

12

B50019

GASKET

- air horn

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

13

B50095

NOZZLE - main

1шт.

14

A40531

VALVE ASSY. - starting adjusting screw, Includes Ref: 15

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

15

B50102

NUT - lock, starting valve

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

16

A40530

HORN - air inlet

1шт.

17

B50078

DISC - choke

1шт.

18

B50142

SCREW - choke disc

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

19

B50118

PIPE

SCREW ASSY. - fuel adjusting, Includes Ref: 20

1шт.

20

B50090

NUT - lock, adjusting screw

1шт.

21

A9731

SCREW - bleed (Replaces B50164)

1шт.

22

B50140

NEEDLE - starting valve

1шт.

23

B50141

MANIFOLD

PLUG - air horn

1шт.

24

B50105

SPRING - latching lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

25

B50115

LEVER - valve

1шт.

26

B50154

PIVOT - valve lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

27

B50021

SPRING - pressure valve lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

28

B50097

WASHER - spring seat

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

29

B50041

SCREW

- air horn

4шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

30

B50128

SHAFT ASSY. - choke

1шт.

31

B50098

SEAL - dust, choke shaft

1шт.

32

B50017

GASKET - cover plate

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

33

B50016

COVER - air horn

1шт.

34

B50034

SCREW - cover plate

4шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

35

B50139

SUPPORT - choke cable

1шт.

36

B50032

SCREW - choke support

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

37

B50204

CLAMP - choke cable

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

38

B50119

SCREW ASSY. - clamp

1шт.

39

A40343

LEVER ASSY. - choke (Replaces B50151), Includes Ref: 40

1шт.

40

F20881

SCREW ASSY. - choke lever (Replaces B50014)

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

41

A40031

KIT repair, carberator, Includes: Ref. 3, 5, 8, 12, 14, 15, 18, 24, 26 - 29, 32, 34, 36, 37, 40 and 42

1шт.

42

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

46

A41324

ECONOMIZER KIT - (use w/A23851 carburetor), Includes Ref: 47 - 56

1шт.

47

A41325

ECONOMIZER ASSY., Includes Ref: 48

1шт.

48

B50172

DIAPHRAGM ASSY

1шт.

49

A57169

TUBE -, Serial Range: economizer-manifold

1шт.

50

B53966

VENTURI

1шт.

51

222-21

FITTING,7/16"-24 x 1/8" NPTF

(in economizer), Includes Ref 52 and 53 7/16"-24 x 1/8" NPTF

1шт.

52

222-101

SLEEVE,3/16" Tube

- (For 3/16" O.D. tube)

1шт.

53

222-111

TUBE NUT,7/16" - 24

NUT - (For 3/16" O.D. tube)

1шт.

54

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSY. - (in manifold), Includes Ref: 55 and 56

1шт.

55

222-101

SLEEVE,3/16" Tube

- (For 3/16" O.D. tube)

1шт.

56

222-111

TUBE NUT,7/16" - 24

NUT - (For 3/16" O.D. tube)

1шт.
