Запчасти Case IH 930-SERIES (048) - A57168 CARBURETOR WITH ECONOMIZER, (377) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NO. 2170189 (03) - FUEL SYSTEM

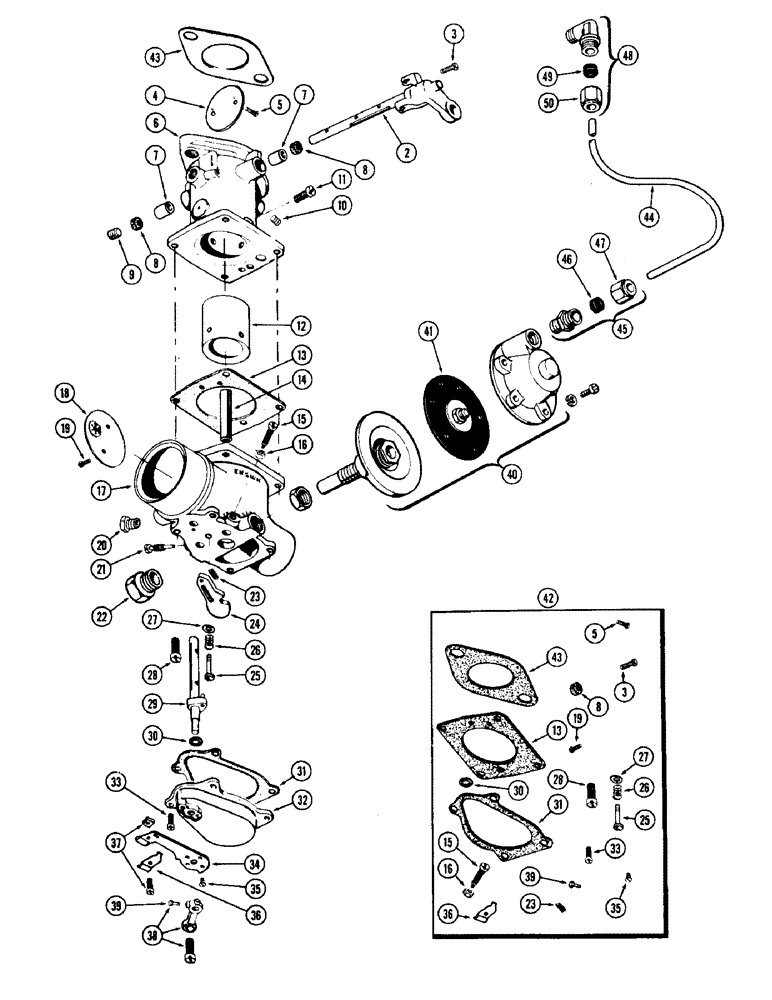

Схема запчастей Case IH 930-SERIES - (048) - A57168 CARBURETOR WITH ECONOMIZER, (377) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NO. 2170189 (03) - FUEL SYSTEM
50
29
21
16
8
7
3
20
28
48
11
31
2
47
19
38
36
19
30
39
18
22
41
16
39
27
17
25
15
28
24
6
12
33
33
44
32
45
13
34
42
26
7
5
27
8
23
36
49
43
30
3
9
43
5
4
35
31
13
33
26
10
40
46
14
25
23
37
8
15

Артикул

Название

Примечание

Количество

A57168

CARBURETOR ASSY., Includes Ref: 2 - 42

1шт.

2

A40558

SHAFT ASSY. - throttle, Includes Ref: 3

1шт.

3

F20881

SCREW throttle stop, Replaces A50014

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

4

B50080

DISC - throttle

1шт.

5

B50143

SCREW throttle shaft

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

6

A40733

TUBE ASSY. - throttle, Includes Ref: 7

1шт.

7

B50202

BUSHING - throttle shaft

2шт.

8

B50145

SEAL dust, throttle shaft

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

9

B50020

PLUG - tube (1/2" welch)

1шт.

10

B50058

PLUG - tube (1/8" P.T.)

1шт.

11

B50040

SCREW - venturi retaining

1шт.

12

A41326

VENTURI

1шт.

13

B50019

GASKET

air horn

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

14

B50095

NOZZLE - main

1шт.

15

A40531

VALVE ASSY. starting, adjusting screw, Includes Ref: 16

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

16

B50102

NUT locking, adjusting screw

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

17

A40530

HORN - air inlet

1шт.

18

B50078

DISC - choke

1шт.

19

B50142

SCREW choke disc

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

20

A9731

SCREW - bleed (Replaces B50164)

1шт.

21

B50140

NEEDLE - starting valve

1шт.

22

B50141

MANIFOLD

PLUG - air horn

1шт.

23

B50105

SPRING latching lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

24

B50115

LEVER - valve

1шт.

25

B50154

PIVOT valve lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

26

B50021

SPRING pressure valve lever

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

27

B50097

WASHER spring seat

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

28

B50041

SCREW

air horn

4шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

29

B50128

SHAFT ASSY. - choke

1шт.

30

B50098

SEAL dust, choke shaft

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

31

B50017

GASKET cover plate

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

32

B50016

COVER - air horn

1шт.

33

B50034

SCREW cover plate

4шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

34

B50139

SUPPORT - choke cable

2шт.

35

B50032

SCREW choke support

2шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

36

B50204

CLAMP choke cable

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

37

B50119

SCREW ASSY. - clamp

1шт.

38

A40343

LEVER ASSY. - choke, Includes Ref: 39

1шт.

39

F20881

SCREW ASSY. choke lever, Replaces B50014

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

40

A41325

ECONOMIZER ASSY., Includes Ref: 41

1шт.

41

B50172

DIAPHRAGM ASSY.

1шт.

42

A40031

KIT repair, carberator, Includes: Ref. 3, 5, 8, 13, 15, 16, 19, 23, 25 - 28, 30, 31, 33, 35, 36, 39 and 43

1шт.

43

A27776

GASKET

, Serial Range: carburetor-manifold

1шт.

Part of P/N A40031 Carberator Repair Kit

1шт.

44

A57169

TUBE -, Serial Range: economizer-manifold

1шт.

45

222-21

FITTING,7/16"-24 x 1/8" NPTF

(in economizer), Includes Ref 46 and 47 7/16"-24 x 1/8" NPTF

1шт.

46

222-101

SLEEVE,3/16" Tube

- (for 3/16" O.D. tube)

1шт.

47

222-111

TUBE NUT,7/16" - 24

NUT - (For 3/16" O.D. tube)

1шт.

48

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSY. - (in manifold), Includes Ref: 49 and 50

1шт.

49

222-101

SLEEVE,3/16" Tube

- (For 3/16" O.D. tube)

1шт.

50

222-111

TUBE NUT,7/16" - 24

NUT - (For 3/16" O.D. tube)

1шт.

Выбрано товаров: 69
