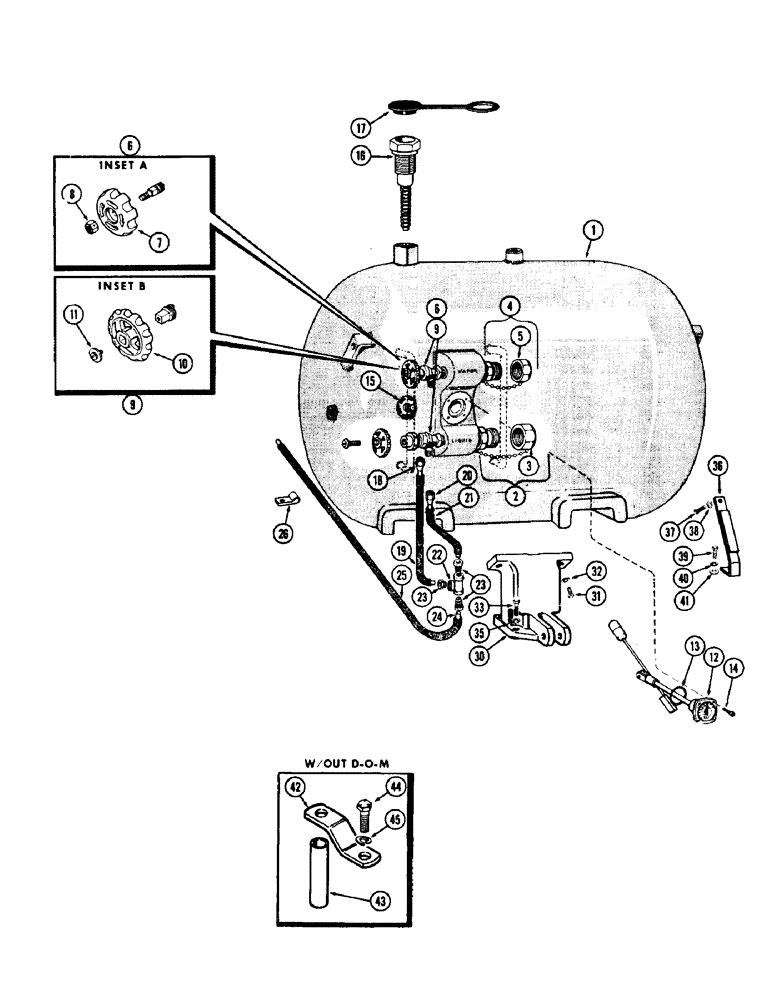

Запчасти Case IH 930-SERIES (046) - L.P. FUEL TANK, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A34792

TANK ASSY. - fuel (Replaces A32725), Includes Ref: 2 - 17

1шт.

2

A29942

VALVE ASSY. - inlet, liquid filler, Includes Ref: 3

1шт.

3

A40631

CAP ASSY. - w/chain

1шт.

4

A9320

VALVE ASSY. - vapor return, Includes Ref: 5

1шт.

5

A40630

CAP ASSY. - w/chain

1шт.

6

A57245

VALVE

ASSY. - outlet, liquid & vapor (See inset A), Includes Ref: 7 and 8

2шт.

7

A41434

WHEEL - hand

1шт.

8

A41433

LOCK NUT

NUT - lock, hand wheel

1шт.

9

A22947

X

VALVE ASSY. - outlet, liquid & vapor (See inset B), Includes Ref: 10 and 11

2шт.

10

B52058

WHEEL - hand

1шт.

11

B52057

SCREW - hand wheel ret.

1шт.

12

A34039

GAUGE ASSY. - liquid level, float, Includes Ref: 13 and 14

1шт.

13

A20489

GASKET - fuel gauge

1шт.

14

177-133

SCREW - (1/4 x 15/16" N.F. fill. hd.)

4шт.

15

A29941

VALVE - liquid level, fixed

1шт.

16

A20696

SEAL

VALVE ASSY. - safety, Includes Ref: 17

1шт.

17

A20697

WIPER

CAP - weather, safety valve

1шт.

18

A20106

TUBE - vapor outlet, Serial Range: valve-tee

1шт.

19

A27239

LOOM - vapor outlet tube (11" long)

1шт.

20

A20107

TUBE - liquid outlet, Serial Range: valve-tee

1шт.

21

A27501

NO LONGER SERVICED

LOOM - liquid outlet tube (5-1/2" lg.)

1шт.

22

222-564

TEE ASSY. - fuel line junction, Includes Ref: 23

1шт.

23

222-504

TUBE NUT,9/16"-20

NUT - tee (for 3/8" dia. tube)

3шт.

24

A33188

TUBE - tee to filter inlet

1шт.

25

A27237

LOOM

- filter inlet tube (10" long)

1шт.

26

A22880

CLIP

- filter inlet tube

2шт.

30

A33505

SUPPORT - fuel tank, center

1шт.

31

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Support to tank Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Support to trans. hsg. Hex, 5/8"-11 x 2", G5

2шт.

33

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- supt. to trans. hsg. (5/8 x 2" N.C. 12 pt. hd.)

2шт.

35

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

36

A33725

BRACE - fuel tank, front

2шт.

37

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Brace to tank Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

39

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Brace to trans. hsg. Hex, 1/2"-13 x 6 1/2", G5

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

A21818

WASHER - (21/32 x 1-1/2 x 1/4")

2шт.

42

A34169

BRACKET - tank brace (used w/out D-O-M)

2шт.

43

A34170

SPACER - bracket (used w/out D-O-M) (5/8" I.D. x 4-1/8")

2шт.

44

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

45

92-8

LOCK WASHER,1/2"

2шт.
