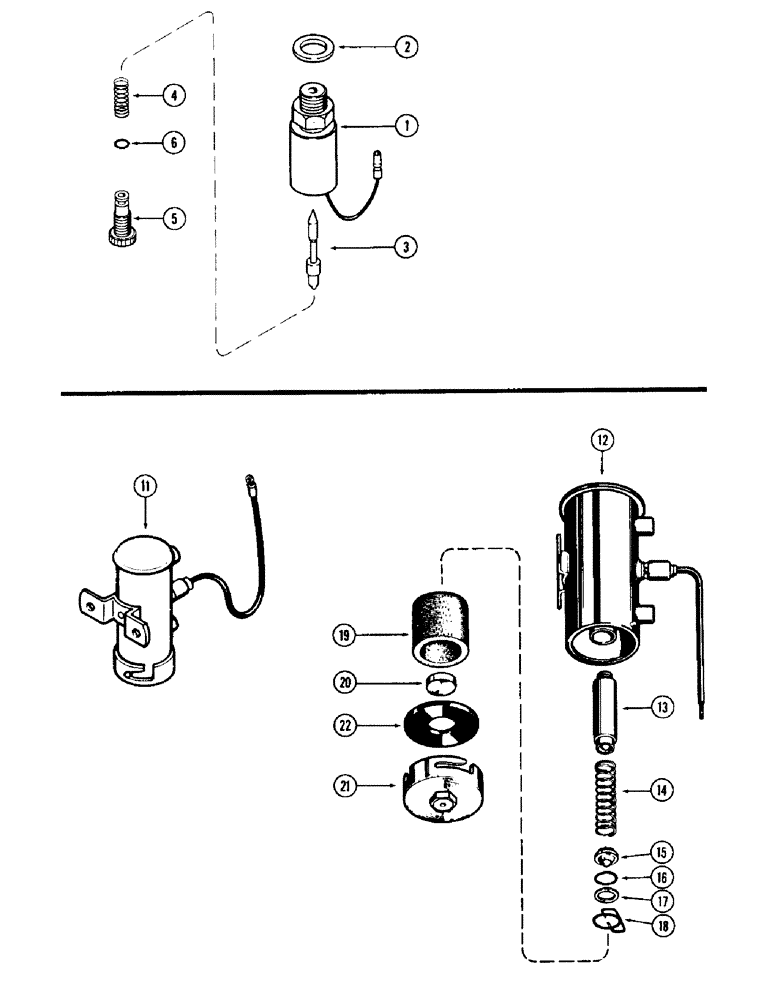

Запчасти Case IH 930-SERIES (045A) - A33219 SOLENOID, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A33219

SOLENOID

ASSY. - carb. cut-off (not illust.), Includes Ref: 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - solenoid (Order A33219)

1шт.

2

A40289

WASHER -, Serial Range: body-carb.

1шт.

3

A40288

JET - cut-off load

1шт.

4

A40287

SPRING - cut-off jet

1шт.

5

A40284

SCREW - main jet adj.

1шт.

6

A40286

O-RING,0.15" ID x 9" OD x 0.073"

"O" RING - adj. screw

1шт.

11

A33181

FUEL PUMP ASSY., Includes Ref: 12 - 22

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - fuel pump (Order A33181)

1шт.

13

A40310

PLUNGER

- pump, A33181 fuel

1шт.

14

A40207

SPRING

- plunger, A33181 fuel pump

1шт.

15

A40313

CUP

VALVE - cup, A33181 fuel pump

1шт.

16

A40318

O-RING,0.429" ID x 0.106"

"O" RING - valve, A33181 fuel pump

1шт.

17

A40317

WASHER

- "O" ring retainer, A33181 fuel pump

1шт.

18

A40316

RETAINER

KEEPER - "O" ring retainer, A33181 fuel pump

1шт.

19

A40314

FILTER CARTRIDGE

FILTER - fuel pump, A33181

1шт.

20

A40311

MAGNET

- plunger (permanent type), A33181 fuel pump

1шт.

21

A40312

COVER

- fuel pump, A33181

1шт.

22

A40315

GASKET

- cover, A33181 fuel pump

1шт.
