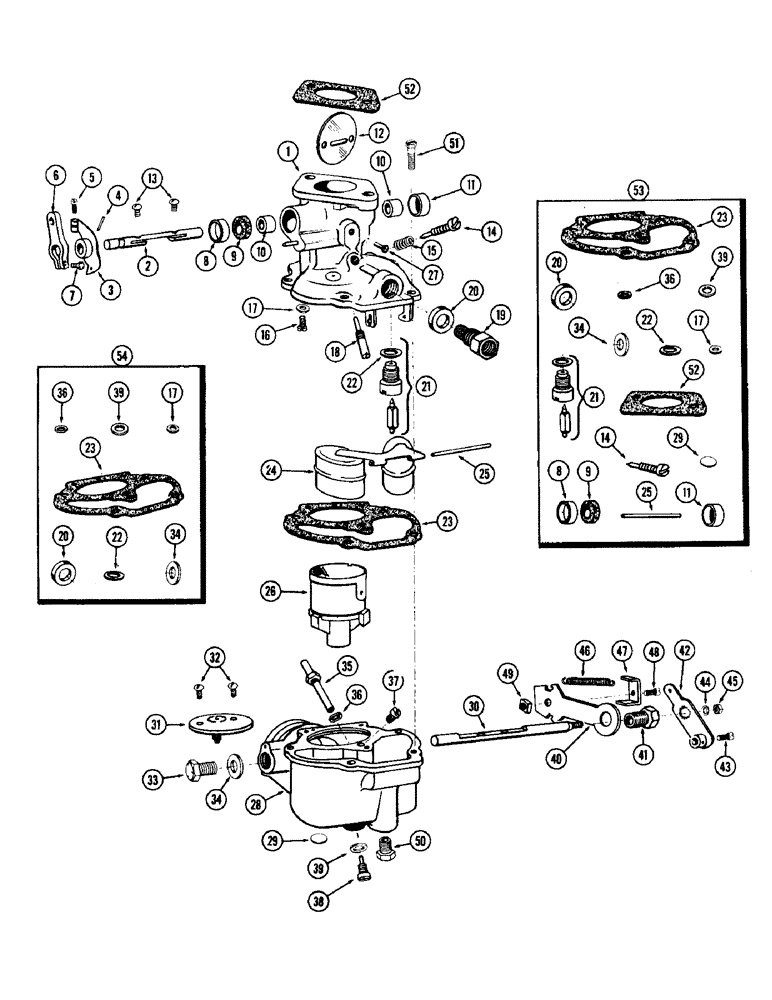

Запчасти Case IH 930-SERIES (044) - A32617 CARBURETOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A32617

CARBURETOR ASSY. - (not illust.), Includes Ref: 1 - 51

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A32617)

1шт.

2

A40244

SHAFT

- throttle

1шт.

3

B51508

LEVER - stop, throttle shaft

1шт.

4

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop lever 3/32" x 7/16", Slotted

1шт.

5

B51581

SCREW - idle speed adjustment

1шт.

6

A40010

LEVER - throttle rod

1шт.

7

B51584

SCREW - clamp, lever

1шт.

8

A40008

RETAINER seal, throttle shaft

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

9

A40007

SEAL

shaft, throttle

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

10

B51497

BUSHING

- throttle shaft

2шт.

11

B51438

PLUG

hole, throttle shaft

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

12

A41359

DISC - throttle

1шт.

13

A24888

SCREW - throttle disc

2шт.

14

B51263

SCREW

NEEDLE adjusting, idle

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

15

B51407

SPRING

needle, idle adjusting

1шт.

16

A24903

JET - economizer

1шт.

17

B51610

WASHER

economizer jet

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

18

B51301

JET

- idle

1шт.

19

B51485

FILTER - fuel inlet connector

1шт.

20

B51614

WASHER

filter

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

21

A25577

VALVE

ASSY. fuel, Includes Ref: 22

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

22

B51618

WASHER

GASKET fuel valve

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

23

A24889

GASKET

, Serial Range: body-bowl

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

24

A24891

FLOAT

- fuel

1шт.

25

B51429

AXLE

float pivot

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

26

A24898

VENTURI

1шт.

27

B51631

SCREW - venturi

1шт.

28

A24892

BOWL - fuel

1шт.

29

B51442

FILTER

DISC - bowl drain

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

30

A24894

SHAFT - choke

1шт.

31

A24893

DISC - choke

1шт.

32

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke disc

2шт.

33

B51449

PLUG

- choke shaft hole

1шт.

34

B51618

WASHER

plug

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

35

A24900

JET - main discharged

1шт.

36

A24901

WASHER discharge jet

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

37

A24902

VENT - well

1шт.

38

A24899

JET

- main

1шт.

39

B51624

WASHER

main jet

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

Part of P/N A24904 Carburator Gasket Kit

1шт.

40

B51398

BRACKET - choke

1шт.

41

B51455

SCREW - choke bracket

1шт.

42

B51379

LEVER - choke, Includes Ref: 43

1шт.

43

B51579

SCREW - choke wire ret.

1шт.

44

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces B51600), Includes Ref: 45 - 51 #10

1шт.

45

129-36

NUT,#8-36

- choke lever ret. (Replaces B51595)

1шт.

46

B51414

SPRING - choke lever return

1шт.

47

B51402

CLAMP - choke cable

1шт.

48

B51581

SCREW - clamp

1шт.

49

B51594

X

NUT - clamp screw

1шт.

50

B51541

PLUG

- bowl drain

1шт.

51

A24890

SCREW -, Serial Range: bowl-body

6шт.

52

A27776

GASKET

, Serial Range: carberator-manifold

1шт.

Part of P/N A24905 Carburetor Repair Kit

1шт.

53

A24905

KIT

repair, carburetor, Includes: Ref. 8, 9, 11, 14, 17, 20 - 23, 25, 29, 34, 36, 39 and 52

1шт.

54

A24904

KIT

gasket, carburetor, Includes: Ref. 17, 20, 22, 23, 34, 36 and 39

1шт.
