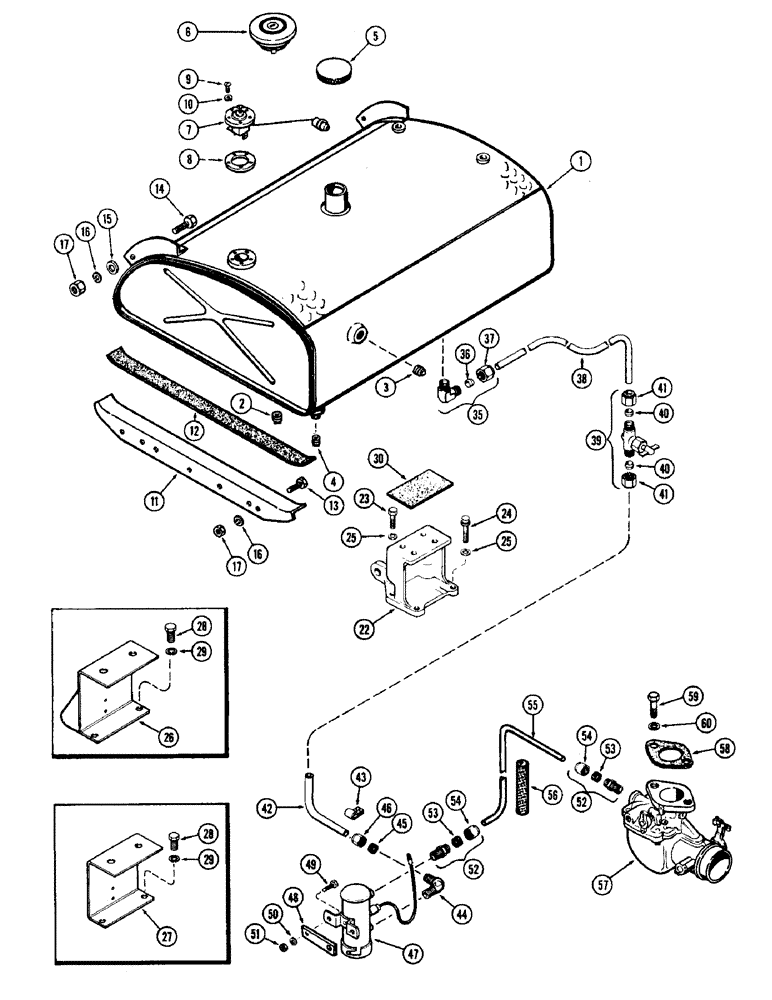

Запчасти Case IH 930-SERIES (042) - FUEL TANK, (377) SPARK IGNITION ENGINE, FIRST USED TRACTOR SERIAL NUMBER 8291471 (03) - FUEL SYSTEM

1

A34812

TANK

ASSY. - fuel (w/inserts) (for draft arms)

1шт.

1

A57205

TANK ASSY. - fuel (w/out inserts) (used w/out draft arms), Includes Ref: 2

1шт.

2

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - (3/8" P.T. sq. hd.)

1шт.

3

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - (1/4" P.T., sq. hd.)

1шт.

4

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.)

1шт.

5

A32119

CAP

- fuel tank (See Ref. 6)

1шт.

6

A32120

CAP

ASSY. - w/keys (keys not available thru repairs)

1шт.

7

A24004

SENDER UNIT

SENDER - fuel gauge

1шт.

8

A11822

GASKET

- sender

1шт.

9

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10-32 x 7/16" rd. hd.)

5шт.

10

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

11

A57478

SUPPORT

- fuel tank (Replaces A34404 & A34405)

2шт.

12

A23991

CUSHION

- side support

2шт.

13

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex)

10шт.

14

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

15

195-520

WASHER,1/4"

- (5/16 x 7/8 x 1/16")

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

17

9635082

NUT,5/16" - 18, Gr 5

12шт.

22

A33506

SUPPORT - fuel tank, center (w/hitch link lug) (Used prior to trac. ser. no. 8351547)

1шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(used w/A35506 supt.) Hex, 5/8"-11 x 2", G5

2шт.

24

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- (5/8 x 2" N.C., Ferry hd.) (used w/A35506 supt.)

2шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

A60099

SUPPORT - fuel tank, center (w/lift link stop) (1st used trac. ser. no. 8358522)

1шт.

27

A57981

SUPPORT - fuel tank, center (w/out lift link stop) (Used trac. ser. no. 8351547 to 8358522) (Order A60099)

1шт.

28

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Used w/A60099 & A57981) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

A32720

CUSHION - center support

1шт.

35

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ASSY. (in tank), Includes Ref: 36 and 37

1шт.

36

222-104

SLEEVE,3/8" Tube

- rubber (for ) 3/8" Tube

1шт.

37

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

38

A34768

TUBE - elbow to shut-off valve

1шт.

39

217-270

LOCK VALVE

VALVE ASSY. - fuel shut-off, Includes Ref: 40 and 41

1шт.

40

222-654

FERRULE,3/8" Tube, Comp

- metal (For 3/8" tube)

2шт.

41

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - (For 3/8" tube)

2шт.

42

A34765

TUBE - valve to fuel pump

1шт.

43

A22880

CLIP

- fuel line

1шт.

44

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSY. - (at fuel pump), Includes Ref: 45 and 46

1шт.

45

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

46

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

47

A33181

PUMP ASSY. - fuel (See Figure 45A)

1шт.

48

A33182

PLATE - pump support

1шт.

49

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

25-104

NUT,1/4"-20, G5

2шт.

52

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

CONNECTOR ASSY. - (at pump & carb.), Includes Ref: 53 and 54

2шт.

53

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

54

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

55

A34766

TUBE - fuel, Serial Range: pump-carb.

1шт.

56

A27482

LOOM - (1/4" I.D. x 8")

1шт.

57

A32617

CARBURETOR ASSY. - (See Figure 44)

1шт.

58

A27776

GASKET

- carburetor

1шт.

59

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

60

92-6

LOCK WASHER,3/8"

2шт.
