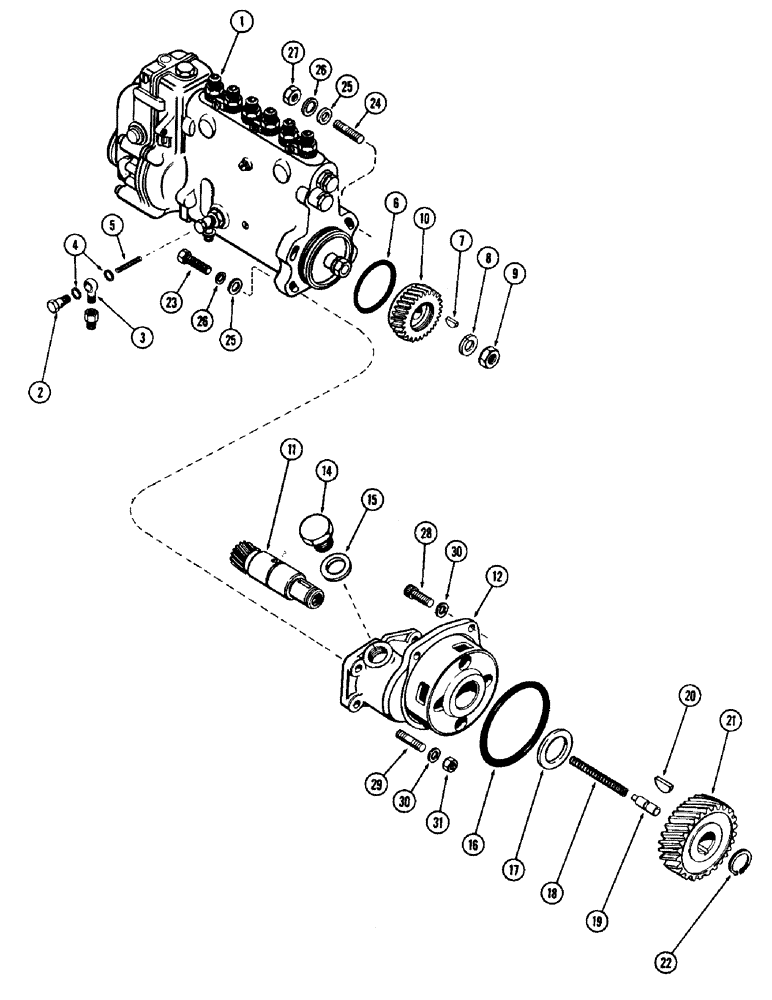

Запчасти Case IH 930-SERIES (026) - FUEL INJECTION PUMP AND DRIVE, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A22638

PUMP - fuel injection (1800 RPM), Includes Ref: 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT -, Serial Range: connector-pump

1шт.

3

A25191

FITTING

- oil tube

1шт.

4

A22381

WASHER

- tube fitting (13/32" x 17/32 x 3/64" cpr.)

2шт.

5

A25190

SPRING

-, Serial Range: fitting-pump

1шт.

6

A42056

O-RING,2.598" ID x 2.834" OD x 0.118"

"O" RING - pump to hsg. (2-5/8 x 2-13/16 x 1/8")

1шт.

7

A20933

KEY

- pump shaft

1шт.

8

A25188

WASHER

LOCKWASHER - pump shaft

1шт.

9

A25189

NUT - pump shaft

1шт.

10

A21139

GEAR

- pump drive

1шт.

11

A20622

GEAR

SHAFT & PINION - pump drive

1шт.

12

A21136

HOUSING ASSY. - pump drive, w/bushing

1шт.

14

A21140

PLUG

- timing window

1шт.

15

A58613

SEALING WASHER

GASKET - plug, (1-1/32 x 1-1/4 x 1/16" copper) (Replaces A27947)

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - drive hsg. (4-1/2 x 4-3/4 x 1/8")

1шт.

17

A27864

WASHER

- thrust, drive shaft (1-3/8 x 2-3/32" x 1/8")

1шт.

18

P0027853A

LARGE PIN

- thrust plunger

1шт.

19

A27852

PLUNGER

- thrust, drive shaft

1шт.

20

126-66

WOODRUFF KEY

KEY - drive gear to drive shaft (#141 Woodruff)

1шт.

21

A20899

GEAR WHEEL

GEAR - drive shaft

1шт.

22

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump, lower (3/8" x 1-1/2" N.C. hex.)

2шт.

24

A20664

STUD - pump, upper (3/8" N.F x 1-7/8")

2шт.

25

A57470

WASHER

- (13/32 x 11/16 x 16 ga.)

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

28

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - housing (3/8" x 1-1/4" hex. sckt. hd.)

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

29

A26554

STUD - housing (3/8" N.C./N.F. x 1-9/16")

1шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.
