Запчасти Case IH 930-SERIES (025A) - FUEL INJECTION FILTER SYSTEM, (401) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2205978 (03) - FUEL SYSTEM

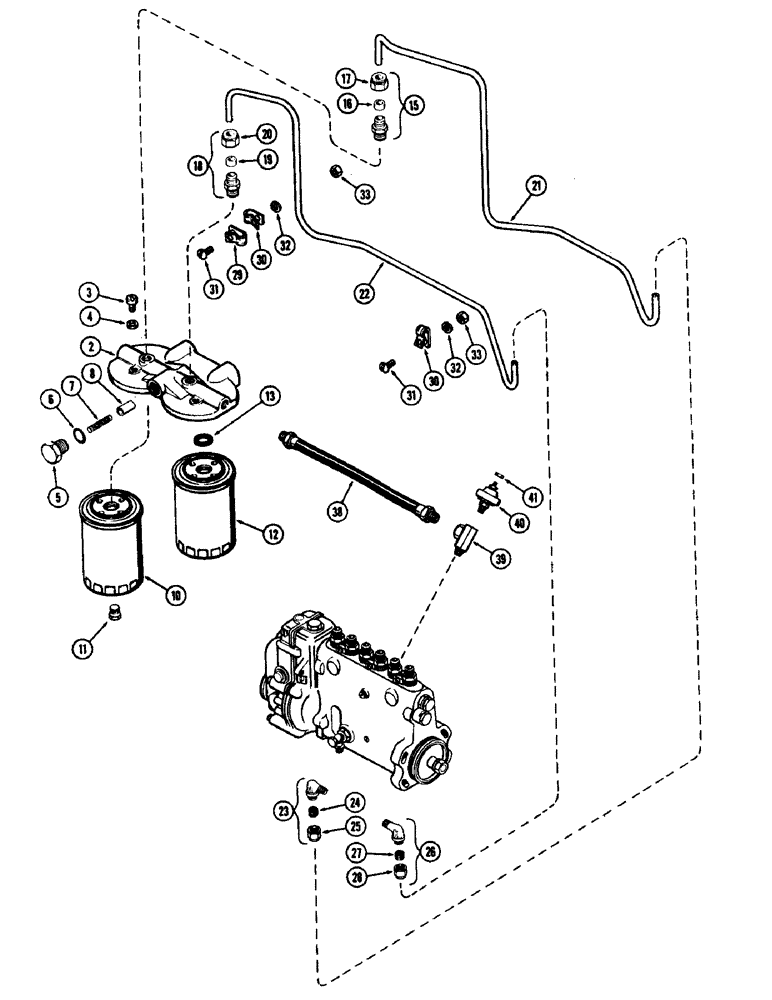

Схема запчастей Case IH 930-SERIES - (025A) - FUEL INJECTION FILTER SYSTEM, (401) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2205978 (03) - FUEL SYSTEM
13
25
26
3
32
27
31
12
10
31
18
39
41
4
6
32
24
38
28
8
23
16
30
22
33
20
33
29
30
19
21
7
17
11
40
15
2
5

Артикул

Название

Примечание

Количество

A60032

HEAD

ASSY. - 1st & 2nd stage filter, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16 fill hd.)

2шт.

4

A20662

GASKET

WASHER - bleed screw (3/16 x 3/8 x 3/64" fiber)

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug (1/2 x 11/16 x 3/32")

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

CASA41745

FUEL FILTER

FILTER KIT - (Set of 2), Includes Ref: 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage (13/16"-16 attaching threads), Includes: Ref. 11

1шт.

11

221-1661

PLUG

- filter drain

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage (15/16"-16 attaching threads), Includes: Ref. 13

1шт.

13

A42315

GASKET

- 2nd stage filter

1шт.

15

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube., 1/4" P.T. (1st stage), Includes: Ref. 16 and 17

1шт.

16

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

18

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

21

A57866

TUBE

- 1st stage filter to pump (3/8" O.D. tube)

1шт.

22

A57867

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

23

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T. (1st stage), Includes: Ref. 24 and 25

1шт.

24

222-104

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

25

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

1шт.

26

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 27 and 28

1шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

29

A20688

CLIP

- 1st stage tube (for 3/8" O.D. tube)

1шт.

30

A27814

X

CLIP - 2nd stage tube (for 5/16" O.D tube)

2шт.

31

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- clips (1/4 x 5/8" N.C. rd. hd.)

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

25-104

NUT,1/4"-20, G5

2шт.

38

A57865

HOSE

- 2nd stage to pump (15" long)

1шт.

39

A20539

FITTING

UNION - hose to pump adapter (90 Deg.)

1шт.

40

A13794

TRANSMITTER

SWITCH - oil pressure warning

1шт.

41

193-1000

NUT,Keps, w/LW,#10-32

- switch (#10 N.F. hex.)

1шт.

Выбрано товаров: 36
