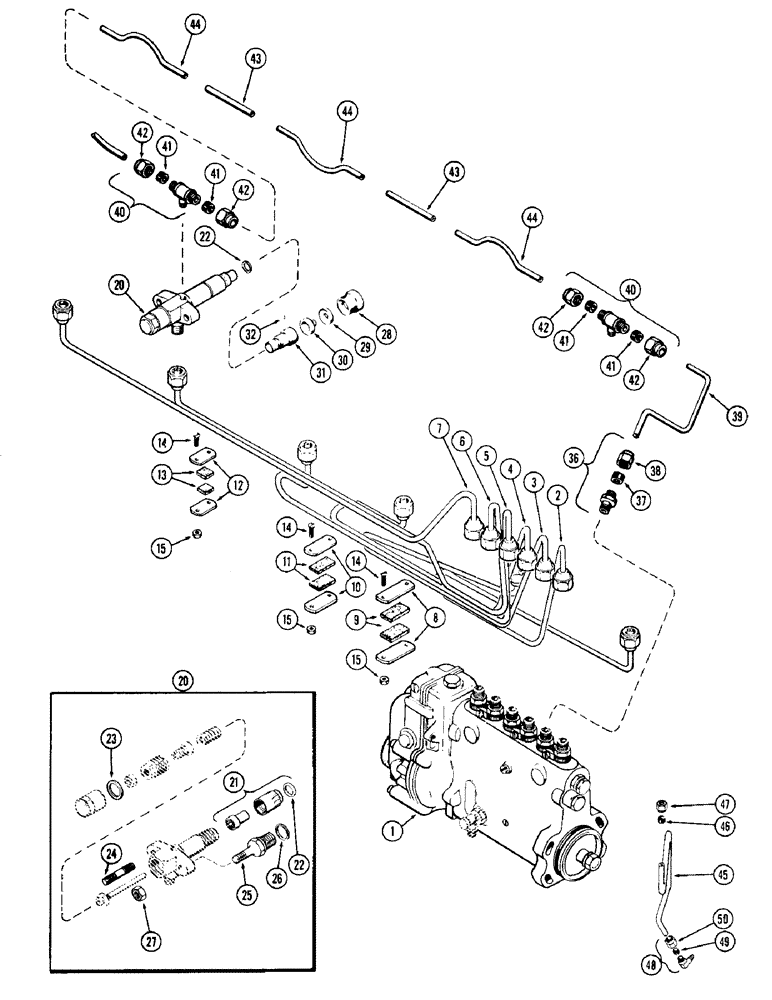

Запчасти Case IH 930-SERIES (024) - FUEL INJECTION SYSTEM, (401) DIESEL ENGINE (03) - FUEL SYSTEM

1

A22638

PUMP - fuel injection (For repairs see Fig. 27)

1шт.

2

A20501

TUBE

- injector, #1 cylinder

1шт.

3

A20502

TUBE

- injector, #2 cylinder

1шт.

4

A20503

TUBE

- injector, #3 cylinder

1шт.

5

A20504

TUBE

- injector, #4 cylinder

1шт.

6

A20505

TUBE

- injector, #5 cylinder

1шт.

7

A20506

TUBE

- injector, #6 cylinder

1шт.

8

A27978

CLAMP

- injector tube (5 tubes) (2-5/64" long)

2шт.

9

A27980

CUSHION

- 5 tube clamp (1-1/4 x 3/4 x 1/8" cork)

2шт.

10

A27977

CLAMP

- injector tube (3 tubes)(1-37/64" long)

2шт.

11

A27979

CUSHION

- 3 tube clamp (3/4 x 3/4 x 1/8" long)

2шт.

12

A20508

CLAMP

- injector tube (2 tubes) (1-21/64" long)

2шт.

13

A20509

CUSHION

- 2 tube clamp (1/2 x 3/4 x 1/8" cork)

2шт.

14

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- (#10-24 x 1" rd. hd.)

6шт.

15

129-7

NUT,Hex, #10 - 24

NIT - ( hex.) #10-24

6шт.

20

A8013

NOZZLE INJECTION

INJECTOR ASSY. - fuel, Includes: Ref. 21 and 22

6шт.

21

A31159

NOZZLE INJECTION

NOZZLE ASSY. injector, Includes: Ref. 22

1шт.

22

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle

1шт.

23

A31062

GASKET

- cap, adjusting screw

1шт.

24

A27929

STUD

- injector nozzle (3/8" N.C./N.F. x 2-3/16")

6шт.

25

A10678

STUD

- injector nozzle

6шт.

26

A10679

GASKET

-, Serial Range: stud-head

6шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

12шт.

28

A11813

PLUG

SCREW - powrcel clamp

6шт.

29

A11812

CLAMP

- powrcel

6шт.

30

A22975

CAP

- powrcel

6шт.

31

A22978

BODY

- powrcel

6шт.

32

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

6шт.

36

A28098

VALVE

ASSY. - check, leak-off to pump (one way), Includes: Ref. 37 and 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube)

1шт.

39

A22186

TUBE

- leak-off, #1, Serial Range: cyl.-pump

1шт.

40

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off, 1/4" tube x 1/8" P.T., Includes: Ref. 41 and 42

6шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube)

2шт.

43

A20162

TUBE

- injector leak-off, upper

2шт.

44

A27981

TUBE

- injector leak-off, lower

3шт.

45

A22640

TUBE

- lube oil, Serial Range: block-pump

1шт.

46

222-102

SLEEVE,1/4" Tube

2шт.

47

87017024

TUBE NUT,1/2"-24

SLEEVE - (1/4" tube)

2шт.

48

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/8" P.T., Includes: Ref. 49 and 50

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube)

1шт.
