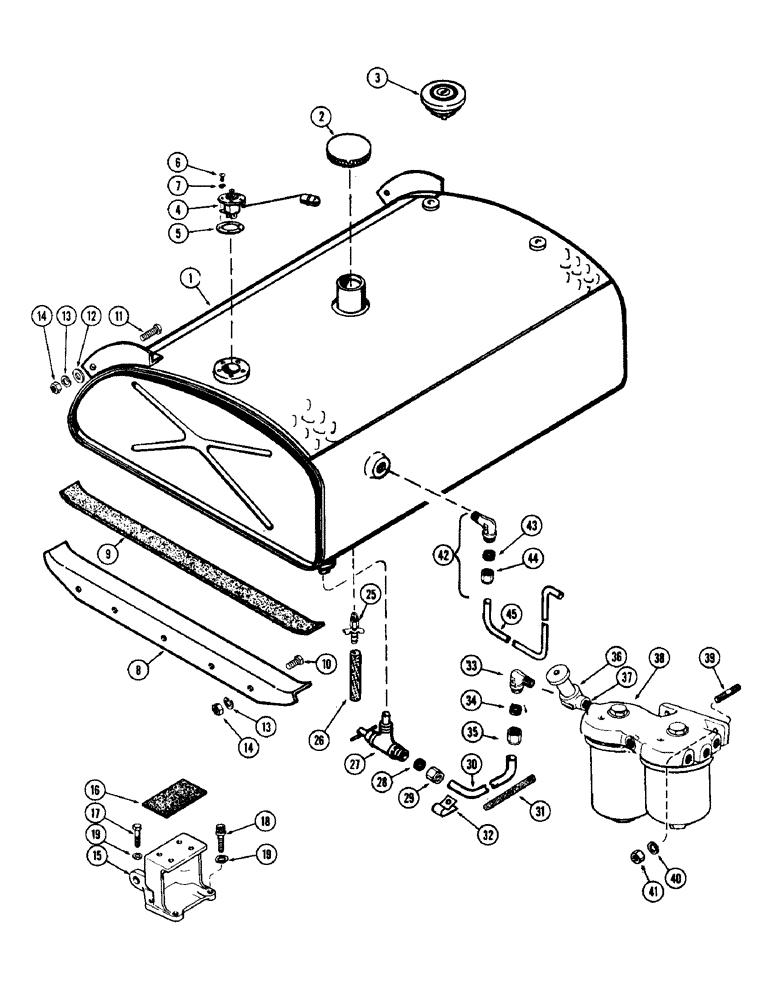

Запчасти Case IH 930-SERIES (023C) - FUEL TANK AND LINES, (401) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8291471 (03) - FUEL SYSTEM

1

A34812

TANK

- fuel (replaces A32683)

1шт.

2

A32119

CAP

- fuel tank (See Ref. 3)

1шт.

3

A32120

CAP

ASSY. - w/keys (Keys not available thru repairs)

1шт.

4

A24004

SENDER UNIT

SENDER - fuel gauge

1шт.

5

A11822

GASKET

-, Serial Range: sender-tank

1шт.

6

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10-32 x 7/16" rd. hd.)

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A32688

X

SUPPORT - fuel tank, R.H. side

1шт.

8

A32689

SUPPORT - fuel tank, L.H. side

1шт.

9

A23991

CUSHION

- tank to side support

2шт.

10

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex)

10шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

12

195-520

WASHER,1/4"

- (5/16 x 7/8 x 1/16")

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

14

9635082

NUT,5/16" - 18, Gr 5

12шт.

15

A33506

SUPPORT - fuel tank, center

1шт.

16

A32720

CUSHION - center support

1шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

18

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- (5/8 x 2" N.C. Ferry hd.)

2шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

217-107

VALVE

- drain

1шт.

26

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

27

A27955

VALVE

- fuel shut-off, Includes: Ref. 28 and 29

1шт.

28

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

29

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

1шт.

30

A33548

TUBE

- needle valve to primer pump

1шт.

31

A27482

LOOM - tube (1/4" I.D. x 8")

1шт.

32

A22880

CLIP

- tube

2шт.

33

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ELBOW ASSY. - fuel line to primer pump, Includes: Ref. 34 and 35

1шт.

34

222-104

SLEEVE,3/8" Tube

- rubber (For ) 3/8" Tube

1шт.

35

222-114

NUT,5/8"-24

NUT (For 3/8" tube)

1шт.

36

A60042

PUMP

Hand Primer

1шт.

36

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

36

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

37

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - pump to filter (1/4" P.T. x 2")

1шт.

38

A40435

FILTER

ASSY. - fuel (1st & 2nd stage) (See Fig. 25C)

1шт.

39

A26554

STUD - filter (3/8" N.F. x 1-9/16")

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

42

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - leak-off return, Includes: Ref. 43 and 44

1шт.

43

222-102

SLEEVE,1/4" Tube

1шт.

44

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

45

A9046

TUBE - return, Serial Range: leak-off-tank

1шт.
