Запчасти Case IH 930-SERIES (022) - FUEL TANK, (401) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 8291471 (03) - FUEL SYSTEM

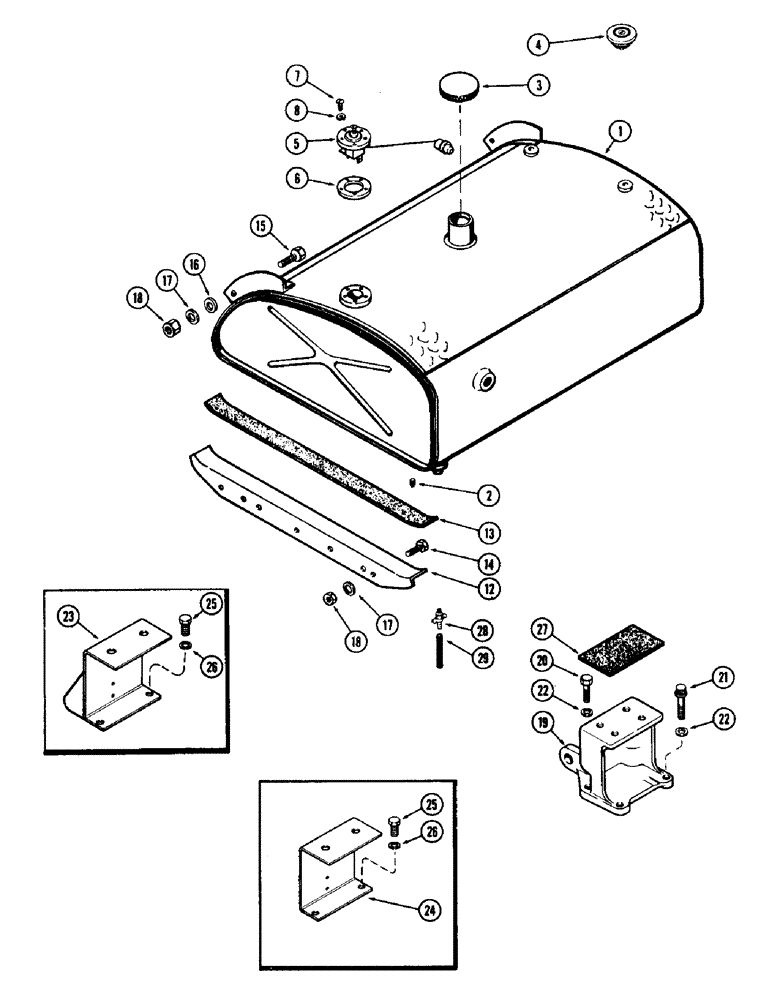

Схема запчастей Case IH 930-SERIES - (022) - FUEL TANK, (401) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 8291471 (03) - FUEL SYSTEM
22
29
17
26
7
6
15
23
12
25
8
22
28
19
20
3
18
13
27
24
5
4
17
1
2
26
18
14
21
16
25

Артикул

Название

Примечание

Количество

1

A34812

TANK

ASSY. - fuel (w/inserts) (for draft arms)

1шт.

1

A57205

TANK ASSY. - fuel (w/out inserts) (used models w/out draft arms), Includes Ref: 2

1шт.

2

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - (3/8" P.T., sq. hd.)

1шт.

3

A32119

CAP

- fuel tank (See Ref. 4)

1шт.

4

A32120

CAP

ASSY. - w/keys (Keys not available thru repairs)

1шт.

5

A24004

SENDER UNIT

SENDER - fuel gauge

1шт.

6

A11822

GASKET

-, Serial Range: sender-tank

1шт.

7

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10 x 7/16" rd. hd.)

5шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

12

A57478

SUPPORT

- fuel tank, right & left hand (Replaces A34404 & A34405)

2шт.

13

A23991

CUSHION

- tank to side support

2шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex)

10шт.

15

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

195-520

WASHER,1/4"

- (5/16 x 7/8 x 1/16")

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

18

9635082

NUT,5/16" - 18, Gr 5

12шт.

19

A33506

SUPPORT - fuel tank, center (w/hitch link lug) (Used prior to trac. ser. no. 8351547)

1шт.

20

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(used w/A35506 supt.) Hex, 5/8"-11 x 2", G5

2шт.

21

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- (5/8 x 2" N.C., Ferry hd.) (used w/A35506 supt.)

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

A60099

SUPPORT - fuel tank, center (w/lift link stop) (1st used trac. ser. no. 8358522)

1шт.

24

A57981

SUPPORT - fuel tank, center (w/out lift link stop) (Used trac. ser. no.. 8351547 to 8358522) (Order A690099 Support)

1шт.

25

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Used w/A60099 & A57981 Supports) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

A32720

CUSHION - center support

1шт.

28

217-107

VALVE

- drain

1шт.

29

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

Выбрано товаров: 27
