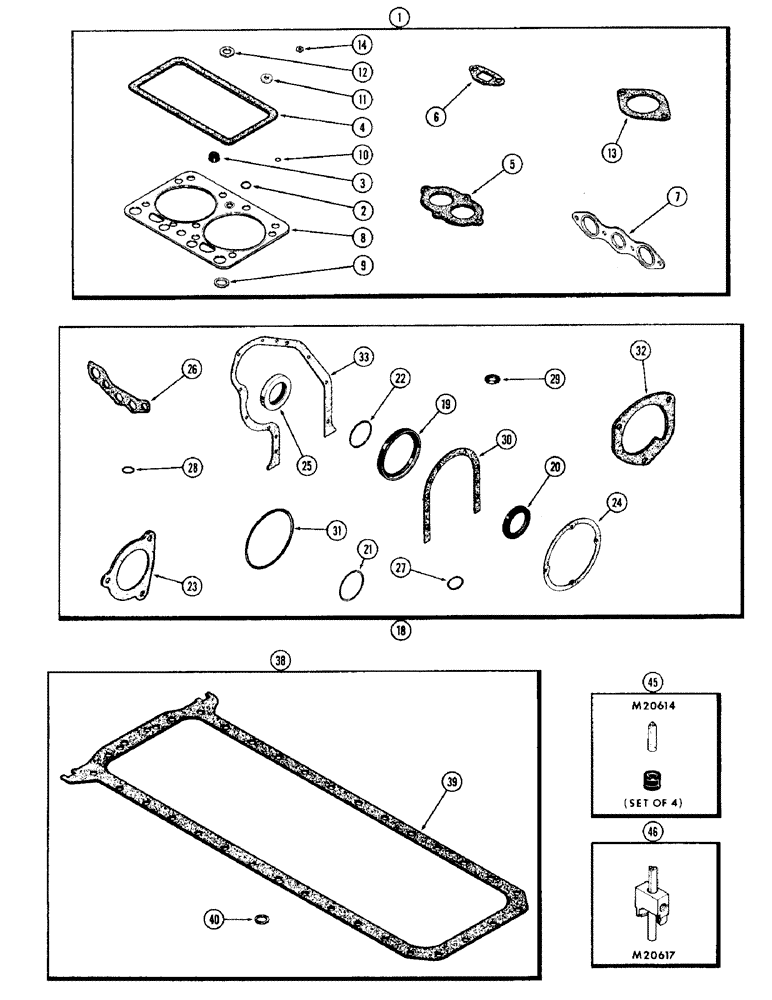

Запчасти Case IH 930-SERIES (040) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A40441

GASKET

KIT - valve grind, Includes Ref: 2 - 14

1шт.

For complete engine overhaul order 1-A40441, 1-A40442, 1-A40444, 1-M20614 & 1-M20617

1шт.

2

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

3

A10726

SEAL

SHIELD - intake valve stem (Rubber)

6шт.

4

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

3шт.

5

A32612

GASKET

- thermostat housing

1шт.

6

A27905

GASKET

- water manifold

6шт.

7

A24549

GASKET

- manifold, int. and exh.

3шт.

8

A23118

GASKET

- cylinder head

3шт.

9

A7669

RING

"O" RING - water passage (7/8 1-3/32 x 5/64" rubber)

6шт.

10

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, (3/16 x 5/16 x 1/16")

3шт.

11

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

12

A23685

GASKET

- breather tube (11/16 x 1-1/16 x 1/16" rubber)

3шт.

13

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

14

A34133

GASKET

- breather tube (9/32 x 1/2 x 3/64" fiber)

3шт.

18

A40442

KIT

GASKET KIT - cylinder block, Includes Ref: 19 - 33

1шт.

For complete engine overhaul order 1-A40441, 1-A40442, 1-A40444, 1-M20614 & 1-M20617

1шт.

19

A23085

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

20

A57342

SEAL

- oil, crankshaft, front (Replaces A23433) (2-5/8 x 3-5/8 x 1/2")

1шт.

21

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - front clutch seal ret. (2-1/2 x 2-3/4 x 1/8")

1шт.

22

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8")

1шт.

23

A27933

GASKET

- starter motor

1шт.

24

A27867

GASKET

- cap, timing gear cover

1шт.

25

A57479

OIL SEAL

- oil, front clutch shaft (Replaces A7144) (1-1/2 x 2-19/64 x 7/16")

1шт.

26

A21084

GASKET

- oil filter base

1шт.

27

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (cam driven only) (1-3/16 x 1-7/16 x 1/8")

2шт.

28

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor support (1 x 1-1/4 x 1/8") (cam driven oil pump only)

1шт.

29

A7292

SEAL

- bearing, governor shaft (29/32 x 1-23/64 x 1/16")

1шт.

30

A32830

GASKET

- rear seal retainer

1шт.

31

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover, (4-1/2 x 4-3/4 x 1/8")

1шт.

32

A57596

GASKET

- water pump (Replaces A27899)

1шт.

33

A33018

GASKET

- timing gear cover

1шт.

A20939

OIL SEAL

- clutch shaft, front (2-3/4 x 3-5/8 x 3/8") (Not used this application) (not illust.)

1шт.

38

A40444

KIT

GASKET KIT - oil pan, Includes Ref: 39 and 40

1шт.

For complete engine overhaul order 1-A40441, 1-A40442, 1-A40444, 1-M20614 & 1-M20617

1шт.

39

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 38)

1шт.

40

A58608

GASKET

- drain plug (nylon) (replaces A27927)

1шт.

45

M20614

SEAL KIT

SEAL KIT - (Set of 4 w/plastic cap) (recommended for use w/eng. overhaul or re-ring jobs)

3шт.

46

M20617

TOOL

KIT - valve guide machining

1шт.
