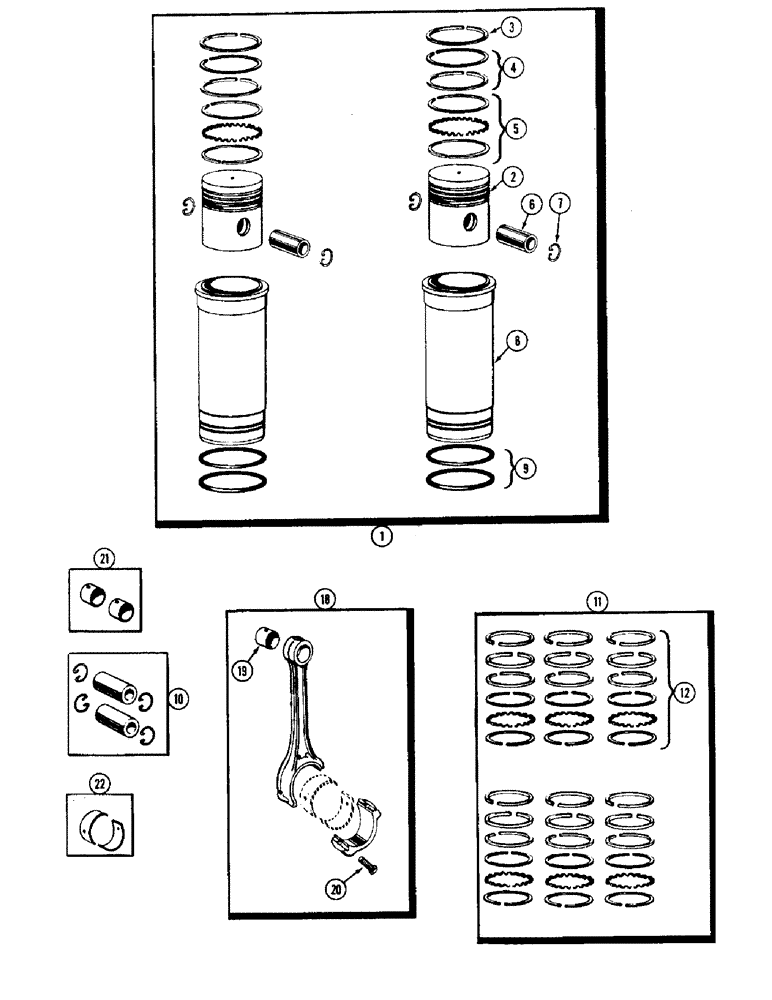

Запчасти Case IH 930-SERIES (036) - PISTON ASSEMBLY AND CONNECTING RODS, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A40356

KIT

PISTON AND SLEEVE KIT (Set of 2), Includes Ref: 2 - 9

3шт.

2

A33536

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st Groove) (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order ref. 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

2шт.

7

A27844

RING

- snap, piston pin retaining

4шт.

8

A23657

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A21723

PIN

KIT - w/ret. rings (Set of 2)

3шт.

11

A41847

SET OF RINGS

RING KIT - re-ring (Set of 6) (Replaces A40439) (See valve seal kit on Figure 41), Includes Ref: 12

1шт.

12

A41838

KIT

RING KIT - re-ring (Set of 1) (Replaces A40366)

6шт.

18

A28657

ROD, CONNECTING

ROD ASSY. - connecting, Includes Ref: 19 and 20

6шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 21)

1шт.

20

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

21

A21721

BUSHING

KIT - piston pin (Set of 2)

3шт.

22

A20393

LINING

INSERT ASY. - conn. rod brg. (Std.)

6шт.

22

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (-.002")

6шт.

22

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.010")

6шт.

22

A20573

KIT

INSERT ASSY. - conn. rod brg. (-.020")

6шт.

22

A20576

LINING

INSERT ASSY. - conn. rod brg. (-.030")

6шт.
