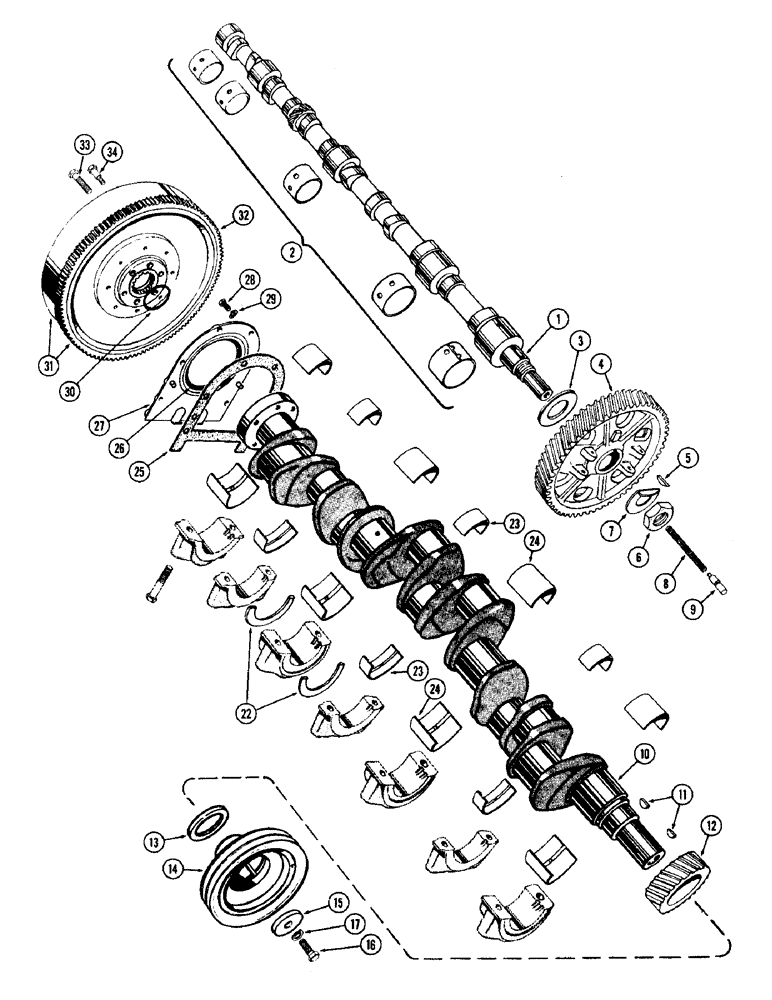

Запчасти Case IH 930-SERIES (034) - CAMSHAFT, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A34173

CAMSHAFT

- w/steel gear insert (See Figure 39B) (used w/A33840 gear) (used eng. ser. no. 2135889 & up)

1шт.

1

A23492

CAMSHAFT

- w/cast gear insert (See Figure 39B) (used w/6453A gear) (used prior to eng. ser. no. 2135889)

1шт.

2

A23544

BUSHING

KIT - camshaft

1шт.

3

A21017

WASHER

- thrust

1шт.

4

A26328

GEAR

- camshaft

1шт.

5

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

6

A26445

NUT

- camshaft gear

1шт.

7

A26444

LOCK WASHER

LOCKWASHER - camshaft gear

1шт.

8

P0027853A

LARGE PIN

- thrust plunger

1шт.

9

A27852

PLUNGER

- thrust

1шт.

10

A24944

CRANKSHAFT, flywheel

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley & gear to crankshaft, Flywheel #C, 5/16" x 1 1/8", HT

2шт.

12

A27837

GEAR

- camshaft, crankshaft & flywheel

1шт.

13

A57342

SEAL

- oil, front, crankshaft (2-5/8 x 3-5/8 x 1/2"), flywheel

1шт.

14

A23644

PULLEY

- fan & generator drive, crankshaft & flywheel

1шт.

15

A27903

WASHER

- pulley to crankshaft (21/32 x 2-1/8 x 1/4") (Replaces A23229), flywheel

1шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley to crankshaft, Flywheel Hex, 5/8"-18 x 1 1/2", G5

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft & flywheel 5/8"

1шт.

22

A27835

WASHER

- thrust bearing (+.006"), crankshaft & flywheel

2шт.

23

A20394

LINING

LINERS - bearing, narrow (Std.), crankshaft & flywheel

3шт.

23

A20579

LINING

LINERS - bearing, narrow (.002" undersize), crankshaft & flywheel

3шт.

23

A20582

LINING

LINERS - bearing, narrow (.010" undersize), crankshaft & flywheel

3шт.

23

A20585

KIT

LINERS - bearing, narrow (.020" undersize), crankshaft & flywheel

3шт.

23

A20588

KIT

LINERS - bearing, narrow (.030" under size), crankshaft & flywheel

3шт.

24

A28687

LINING

LINERS - bearing, wide (Standard), crankshaft & flywheel

4шт.

24

A7182

KIT

LINERS - bearing, wide (.002" undersize), crankshaft & flywheel

4шт.

24

A7188

BEARING LINER

LINERS - bearing, wide (.010" undersize), crankshaft & flywheel

4шт.

24

A7194

KIT

LINERS - bearing, wide (.020" undersize), crankshaft & flywheel

4шт.

24

A7200

KIT

LINERS - bearing, wide (.030" undersize), crankshaft & flywheel

4шт.

25

A32830

GASKET

- retainer, rear oil seal, crankshaft & flywheel

1шт.

26

A23085

OIL SEAL

- oil, rear, crankshaft (4-3/4 x 5-3/4 x 1/2"), crankshaft & flywheel

1шт.

27

A57457

RETAINER

- rear oil seal (Replaces A32182), crankshaft & flywheel

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

29

92-6

LOCK WASHER,3/8"

crankshaft & flywheel 3/8"

6шт.

30

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8")

1шт.

31

A32606

FLYWHEEL, crankshaft, Includes Ref: 32

1шт.

32

A20875

GEAR, RING

GEAR - ring, starter, crankshaft & flywheel

1шт.

33

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - (5/8 x 2-1/8" N.F., self-locking), crankshaft & flywheel

4шт.

34

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - shoulder (9/16 x 2-5/32" N.F., self-locking), crankshaft & flywheel

2шт.
