Запчасти Case IH 930-SERIES (033A) - CYLINDER BLOCK ASSEMBLY, (377) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2174169 (02) - ENGINE

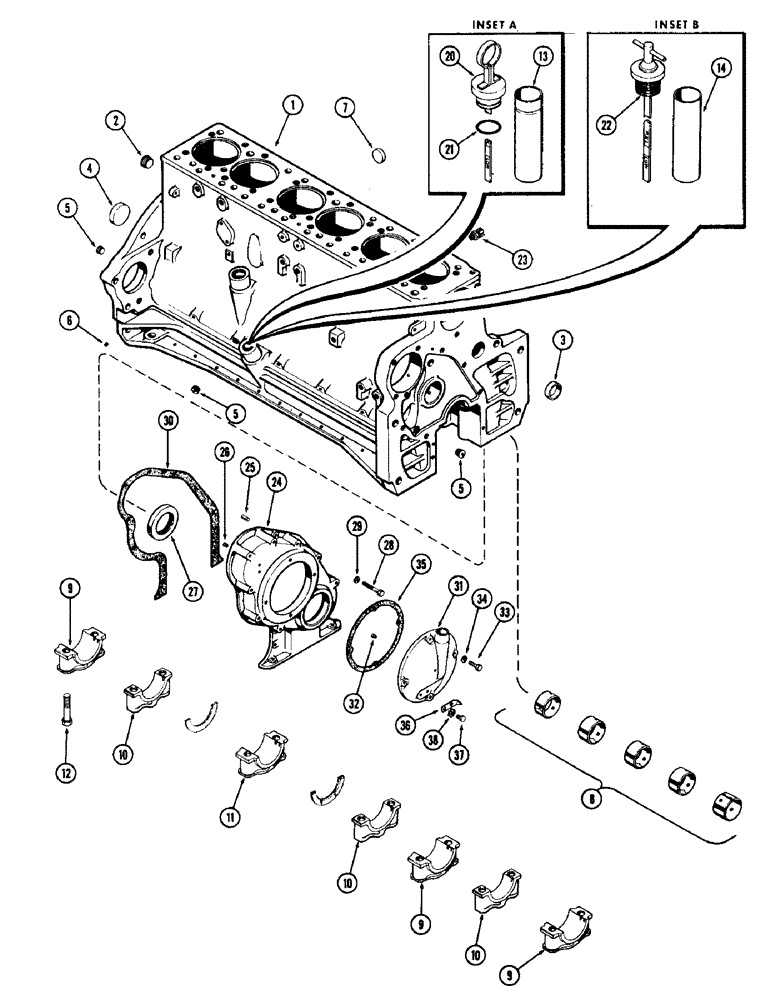

Схема запчастей Case IH 930-SERIES - (033A) - CYLINDER BLOCK ASSEMBLY, (377) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2174169 (02) - ENGINE
32
33
35
3
9
24
38
10
5
14
12
27
21
11
23
20
4
7
2
29
5
6
5
13
31
25
22
30
28
37
26
36
9
10
9
10
1
1
34

Артикул

Название

Примечание

Количество

A40436

BLOCK ASSY. - cylinder, short (incl. stripped block, camshaft, crankshaft & brgs., timing gears, piston assy., connecting rods & brgs. & oil pump assy.) (Casting No. A24960), Includes Ref: 1 - 14

1шт.

1

A24542

BLOCK ASSY. - stripped (Casting No. A24960) (Order A41222), Includes Ref: 2 - 14

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - water gallery, rear (1" P.T., sckt. hd.)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery, front (1-3/4" cup type)

1шт.

4

A24361

PLUG

- rear, camshaft hole (2-3/8" cup type)

1шт.

5

221-1843

PLUG

- (3/8" P.T., sckt. hd.)

6шт.

6

221-41

PLUG

- (1/8" P.T., sltd. hd.)

3шт.

7

41-1622

PLUG,Cup, 1 3/8", Stainless

- left side of block (1-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A24941

CAP

- main brg., wide

3шт.

10

A24942

CYLINDER END CAP

CAP - main brg., narrow

3шт.

11

A24943

CAP

- main brg., thrust

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. cap (5/8 x 3-1/4" N.C. spec.)

14шт.

13

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st used to eng. ser. no. 2141473)

1шт.

14

A20714

X

SOCKET - oil level gauge (See inset B) (Used prior to eng. ser. no. 2141473) (Order A34540)

1шт.

20

A34541

DIPSTICK

GAUGE ASSY. - oil level (See inset A) (1st used eng. ser. no. 2141473), Includes Ref: 21

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

22

A20739

GAUGE

- oil level (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

23

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

24

A23334

COVER ASSY. - timing gear (Order A57416), Includes Ref: 25 - 27

2шт.

25

A27840

PIN

- dowel, cover to block (5/16 x 3/4")

2шт.

26

A27869

BUTTON - thrust

1шт.

27

A57342

SEAL

- oil, front crankshaft (2-5/8 x 3-5/8 x 1/2")

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

8шт.

29

92-6

LOCK WASHER,3/8"

10шт.

30

A33018

GASKET

-, Serial Range: cover-block

1шт.

31

A20833

CAP - timing gear cover, Includes Ref: 32

1шт.

32

A27869

BUTTON - thrust

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cap Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

A27867

GASKET

-, Serial Range: cap-cover

1шт.

36

A28218

POINTER - timing indicator

1шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

38

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

Выбрано товаров: 36
