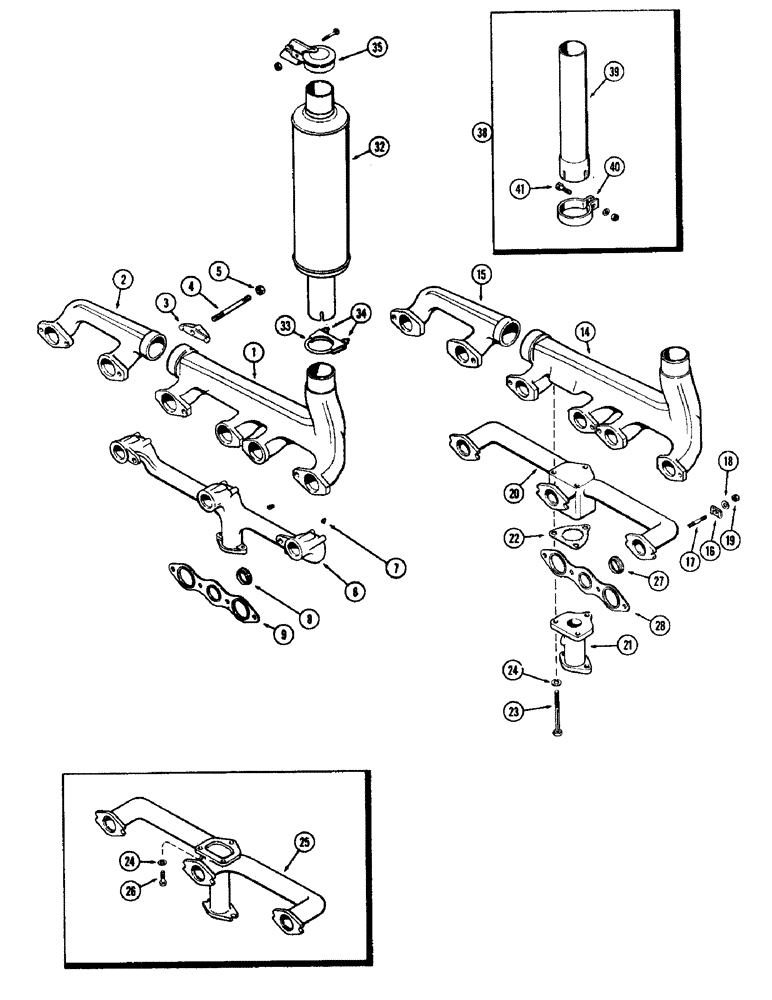

Запчасти Case IH 930-SERIES (029A) - MANIFOLD, (377) SPARK IGNITION ENGINE, L.P. FUEL (02) - ENGINE

1

A24714

MANIFOLD

- exhaust, front

1шт.

2

A24715

MANIFOLD

- exhaust, rear

1шт.

3

A24368

CLAMP

- manifold

6шт.

4

A27911

STUD

- manifold clamp (7/16" N.C./N.F. x 6")

6шт.

5

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

6шт.

6

A9510

MANIFOLD - intake

1шт.

7

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.) (not used w/all manifolds)

4шт.

8

A26433

CAP

FERRULE - intake manifold

3шт.

9

A24549

GASKET

- intake & exhaust manifold

3шт.

14

A32614

MANIFOLD - exhaust, front, gas fuel

1шт.

15

A24547

MANIFOLD - exhaust, rear,gas fuel

1шт.

16

A57382

CLAMP

- manifold (Replaces A24987), gas fuel

6шт.

17

A24550

STUD

- manifold clamp (7/16" N.C. x 2-1/8"), gas fuel

12шт.

18

195-29

WASHER,7/16"

- (15/32 x 59/64 x 1/16"), gas fuel

6шт.

19

A34166

NUT

- (7/16" N.C. spec.), gas fuel

6шт.

20

A34673

MANIFOLD - intake (use w/Ref. 21) (1st used eng. ser. no. 2142563), gas fuel

1шт.

21

A34674

PIPE, EXHAUST SYSTEM

STACK - intake manifold (use w/Ref. 20) (1st used eng. ser. no. 2142563), gas fuel

1шт.

22

A34675

GASKET

- stack to manifold (1st used eng. ser. no. 2142563), gas fuel

1шт.

23

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, , Gas fuel Hex, 3/8"-16 x 4 3/4", G5

3шт.

24

92-6

LOCK WASHER,3/8"

gas fuel 3/8"

3шт.

25

A24548

X

MANIFOLD - intake (1 piece) (used prior to eng. ser. no. 2142563), gas fuel

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gas fuel Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

27

A21634

FERRULE

- intake manifold, gas fuel

3шт.

28

A24549

GASKET

- manifold, gas fuel

3шт.

32

T42286

MUFFLER

- exhaust (Replaces A24103)

1шт.

33

A27115

CLAMP

- muffler, Includes Ref: 34

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.), muffler

2шт.

35

A33743

CAP

- weather, muffler

1шт.

38

A24111M

EXTENSION ATTACHMENT - muffler, Includes Ref: 39 - 41

1шт.

39

A24112

EXTENSION

- muffler tube

1шт.

40

A24113

CLAMP

-, Serial Range: extension-muffler

1шт.

41

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Muffler Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.
