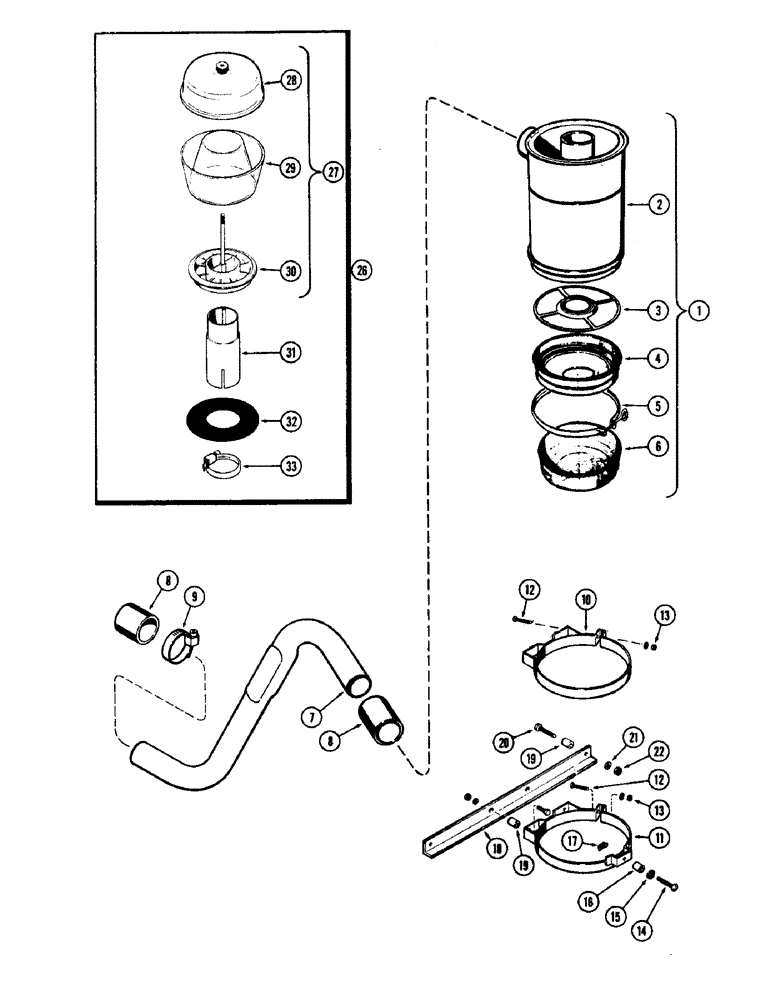

Запчасти Case IH 930-SERIES (028) - AIR CLEANER, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A23804

CLEANER

ASSY. - air, Includes Ref: 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A23804)

1шт.

3

A24178

SCREEN

1шт.

4

A24179

BAFFLE - inner

1шт.

5

A30865

CLAMP

ASSY. - oil cup

1шт.

6

R22420

CUP

- oil (Replaces A24177)

1шт.

7

A23808

TUBE - air, Serial Range: cleaner-carburetor

1шт.

8

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

(Replaces A20197) 2.25" ID x 3.00", SAE 20R2

2шт.

9

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4")

4шт.

10

A23807

BAND - upper, air cleaner mounting

1шт.

11

A23806

BAND - lower, air cleaner mounting

1шт.

12

75-424

SCREW

- (1/4 x 1-1/2" N.C., rd. hd.)

2шт.

13

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C sq.)

2шт.

14

175-443

SCREW - (1/4 x 1-1/4" N.C., truss hd.)

1шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

1шт.

16

A26547

SPACER,1/4" Pipe x 1/2"

- band to center piece

1шт.

17

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. cage)

1шт.

18

A23805

SUPPORT - lower band

1шт.

19

T25073

BUSHING

SPACER - band support (3/8" pipe x 7/8")

4шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

26

A24435

PRE CLEANER ATTACHMENT, Includes Ref: 27 - 33

1шт.

27

A64589

PRECLEANER

PRE-CLEANER ASSY., Includes Ref: 28 - 30

1шт.

28

73187

COVER

pre-cleaner

1шт.

29

365413R1

BOWL

(PLASTIC), pre-cleaner

1шт.

30

NSS

NOT SOLD SEPARAT

BASE - baffle (Order 73184), pre-cleaner

1шт.

31

A24392

EXTENSION

- air stack, pre-cleaner

1шт.

32

A24393

SHIELD

pre-cleaner

1шт.

33

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - (2-5/16" to 3-1/4"), pre-cleaner

1шт.
