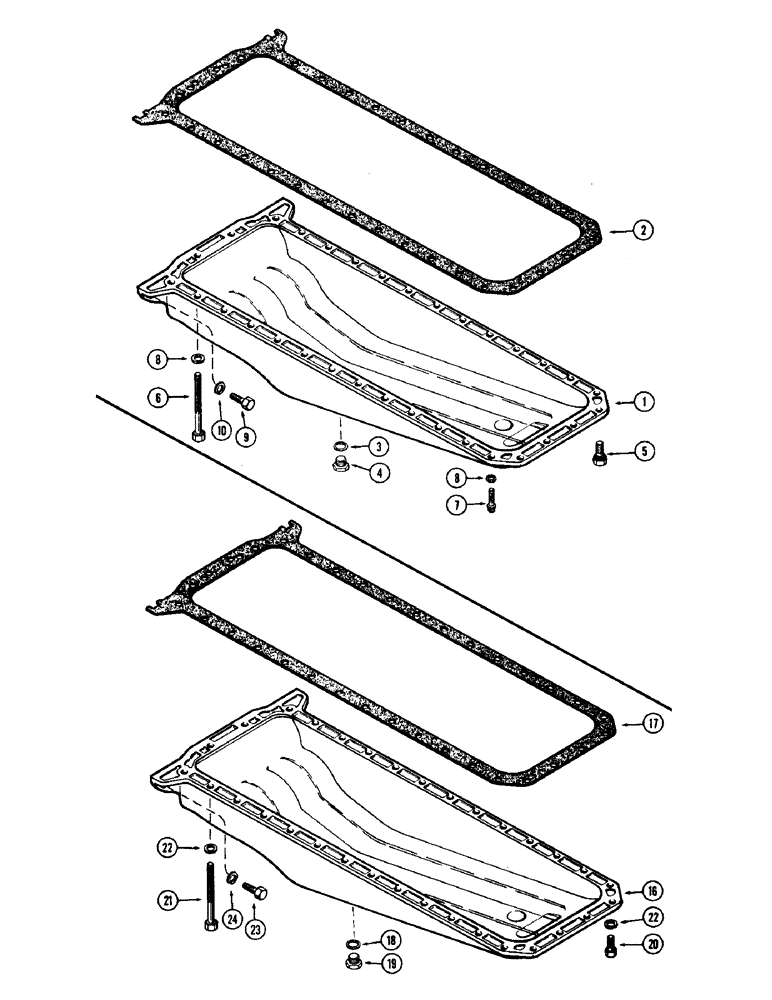

Запчасти Case IH 930-SERIES (017E) - OIL PAN, USED WITH FRONT MOUNTED OIL PUMP, FIRST USED ENGINE SERIAL NUMBER 2174169 (02) - ENGINE

1

A57404

PAN

- oil

1шт.

2

A40444

KIT

GASKET KIT - oil pan, Includes: Ref. 3

1шт.

3

A580608

GASKET - drain plug (nylon) (Replaces A27927)

1шт.

4

A14280

PLUG

- drain, oil pan

1шт.

5

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - pan to block (3/8 x 1-1/4" N.C. hex. sems)

26шт.

5

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - pan to cover (3/8 x 1-1/2" N.C. hex., sems)

2шт.

6

A57436

BOLT

- pan to rear seal ret. (3/8 x 5-3/4" N.C. hex.)

2шт.

7

A34929

BOLT (SPREADER)

BOLT - pan to cover (3/8 x 1-1/8" N.C. 12 pt. hd.)

2шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Pan to trans. case Hex, 1/2"-13 x 1 5/8", G5

4шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- pan to trans. case (1/2 x 1-3/4" N.C. hex.)

1шт.

10

92-8

LOCK WASHER,1/2"

5шт.

16

A33208

PAN - oil, used w/ cam driven pump, prior to engine ser. no. 2174169

1шт.

17

A40444

KIT

GASKET KIT - oil pan, used w/ cam driven pump, prior to engine ser. no. 2174169, Includes Ref: 18

1шт.

18

A27927

OIL PAN GASKET SET

- drain plug, oil pan, used w/ cam driven pump, prior to engine ser. no. 2174169

1шт.

19

A14280

PLUG

- drain, oil pan , used w/ cam driven pump, prior to engine ser. no. 2174169

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Oil pan, used w/ cam driven pump, prior to engine ser. no. 2174169 Hex, 3/8"-16 x 1 1/4", G5, Full Thd

28шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8" x 1-1/2" N.C. hex.) (breather tube), oil pan, used w/ cam driven pump, prior to engine ser. no. 2174169

2шт.

21

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

Oil pan, used w/ cam driven pump, prior to engine S/N 2174169 Hex, 3/8"-16 x 5 3/4", G5

2шт.

22

92-6

LOCK WASHER,3/8"

oil pan, used w/ cam driven pump, prior to engine ser. no. 2174169 3/8"

32шт.

23

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Oil pump, used w. cam driven pump, prior to engine S/N 2174169 Hex, 1/2"-13 x 1 5/8", G5

4шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2" x 1-3/4" N.C. hex.), oil pump, used w/ cam driven pump. prior to engine ser. no. 2174169

1шт.

24

92-8

LOCK WASHER,1/2"

oil pump 1/2"

5шт.
