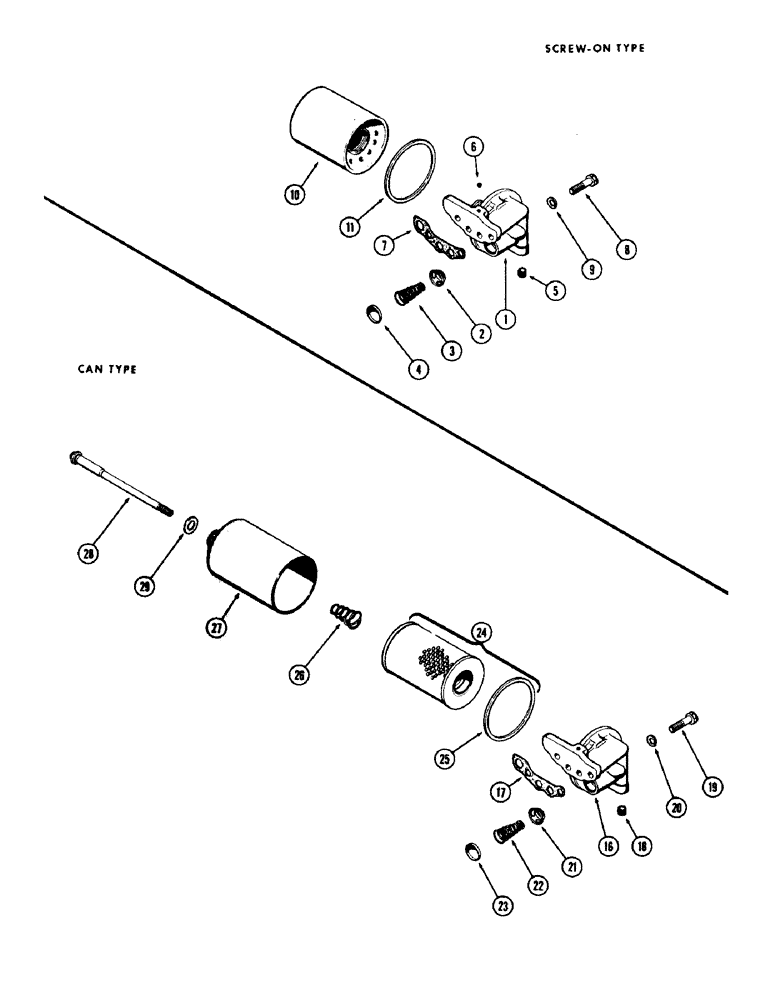

Запчасти Case IH 930-SERIES (017C) - OIL FILTER, (401) DIESEL ENGINE, SCREW-ON TYPE (02) - ENGINE

A57849

BASE

ASSY. - oil filter, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

5

221-1843

PLUG

- base (3/8" P.T., sckt. hd.)

1шт.

6

221-41

PLUG

- base (1/8" P.T. sltd. hdls.)

1шт.

7

A21084

GASKET

- filter, Serial Range: base-block

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base to block Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

A41725

FILTER, ENGINE OIL

FILTER KIT, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - oil

1шт.

11

A57858

GASKET

- filter to base (4-3/8 x 5-3/16 x 13/64")

1шт.

16

A23474

BASE

- oil filter (Order A57849 oil filter base & A41725 filter kit), can type

1шт.

17

A21084

GASKET

- base to block, can type

1шт.

18

221-1843

PLUG

- base 93/8" P.T., sckt. hd.), can type

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base, can type Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

can type 1/2"

2шт.

21

A21090

VALVE

- relief, can type

1шт.

22

A21091

VALVE SPRING

SPRING - relief valve, can type

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, can type

1шт.

24

A20822

ENGINE OIL FILTER

ELEMENT ASSY. - filter, can type, Includes: Ref. 25

1шт.

25

A20429

GASKET

- element to base (4-13/16 x 5-13/64 x 3/32"), can type

1шт.

26

A20427

VALVE SPRING

SPRING - element, can type

1шт.

27

A20824

SHELL

- filter element, can type

1шт.

28

A20825

PIPE

- stand, can type

1шт.

29

A20426

GASKET

- pipe to shell, can type

1шт.
