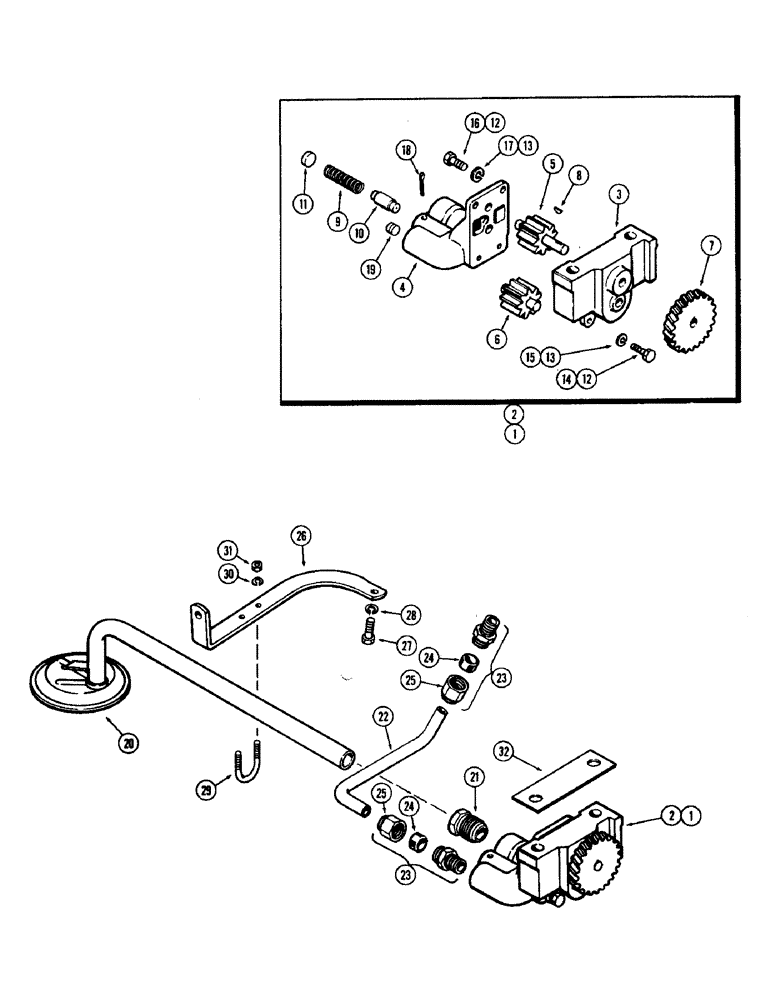

Запчасти Case IH 930-SERIES (016) - FRONT MOUNTED OIL PUMP, (401) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2174169 (02) - ENGINE

1

A61810

PUMP

ASSY. - oil (1st used eng. ser. no. 2202205) (Replaces A57486)

1шт.

2

A34940

PUMP ASSY. - oil (Order A61810) (used prior to eng. ser. no. 2202205), Includes Ref: 2 - 19

1шт.

3

A57487

BODY

- (drilled for 5/16" bolt) (Used w/A57486 & A61810 oil pump) (See Ref. 1)

1шт.

3

A34941

X

BODY - (drilled for 3/4" shoulder bolt) (used w/A34940 oil pump) (See Ref. 2) (Order 1-A57487, 1-A61811, 4-13-518, 4-92-5, 1-A59111, 1-41-1011, 1-132-32 & 1-221-844)

1шт.

4

A61811

COVER

- (w/29/32" tapped bolt hole depth) (Used w/A61810 oil pump) (See Ref. 1) (Replaces A57488)

1шт.

4

A34991

COVER

- (w/5/8" tapped bolt hole depth) (Used w/A34940 oil pump) (See Ref. 2) (Order 1-A57487, 1-A61811, 4-13-518, 4-92-5, 1-A59111, 1-41-1011, 1-132-32 & 1-22-844)

1шт.

5

A34942

GEAR ASSY. - w/shaft & key (lead gear)

1шт.

6

A34945

GEAR ASSY. - w/shaft (follow gear)

1шт.

7

A34947

GEAR - pump drive (external)

1шт.

8

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

9

A34993

RING

SPRING - relief valve (Used w/A34991 & A57488 cover)

1шт.

9

A59111

SPRING

- relief valve (Used w/A61811 cover)

1шт.

10

A34992

PISTON

VALVE - relief

1шт.

11

A34951

X

PLUG - cup (45/64") (Used w/A34991 & A57488 cover)

1шт.

11

41-1011

PLUG,Cup, 11/16"

- cup (11/16") (Used w/A61811 cover)

1шт.

12

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Used w/A57487 body & A57488, A61811 covers) Hex, 5/16"-18 x 1 1/8", G5

4шт.

13

92-5

LOCK WASHER,5/16"

(used w/13-518 bolt) 5/16"

4шт.

14

A34950

STEP BOLT

BOLT - shoulder (5/16" N.C. x 1") (use w/A34941 body)

2шт.

15

92-6

LOCK WASHER,3/8"

use w/A34950 bolt 3/8"

2шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Use w/A34991 cover) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.) (use w/A34991 cover)

1шт.

17

92-5

LOCK WASHER,5/16"

(use w/13-514 & 13-520 bolts) 5/16"

2шт.

18

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Used w/A61811 cover 3/32" x 1 1/2"

1шт.

19

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. sckt. hd.) (Used w/A61811 cover)

1шт.

20

A34976

SCREEN

TUBE - oil suction, w/screen

1шт.

21

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

22

A57388

TUBE

-, Serial Range: pump-filter

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube (Replaces 221-31), Includes: Ref. 24 and 25

2шт.

24

222-106

SLEEVE,5/8" Tube

- (rubber) (for 5/8" O.D. tube)

1шт.

25

222-116

TUBE NUT,1"-18

NUT - (for 5/8" O.D. tube)

1шт.

26

A34980

BRACKET

SUPPORT - suction tube

1шт.

27

A10072

BOLT,3/8" - 16 x 3/4"

- supt. (3/8 x 3/4" N.C. hex., w/nylon insert)

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

A34979

BOLT

"U" BOLT - suction tube hanger

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

25-104

NUT,1/4"-20, G5

2шт.

32

A57454

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

32

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

32

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.
