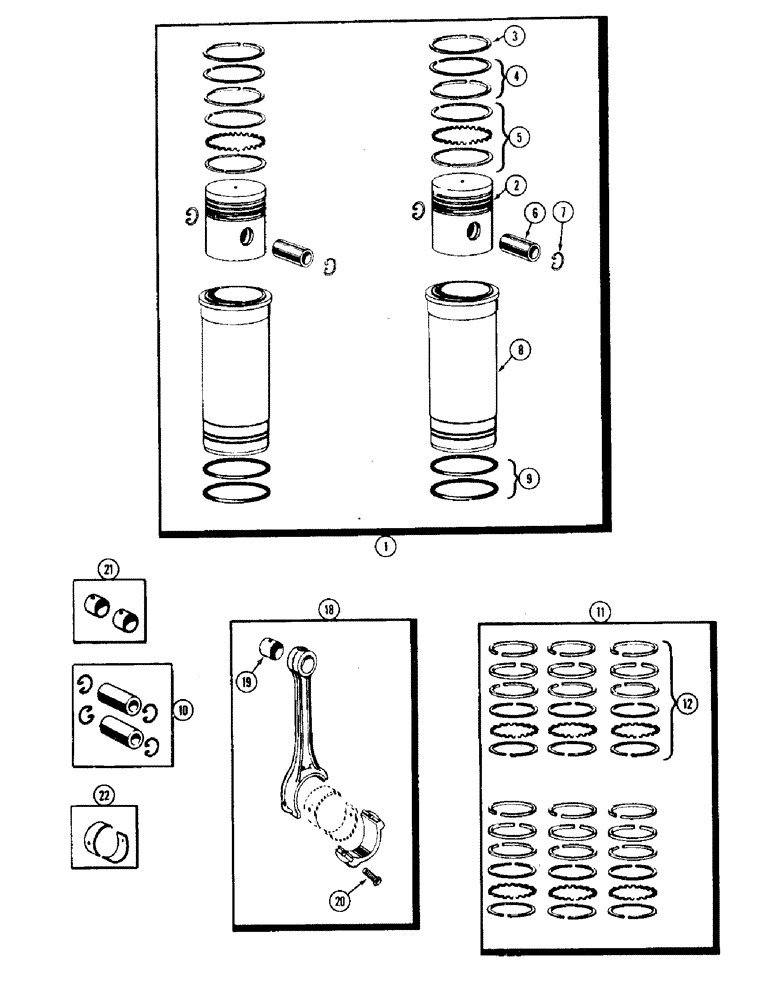

Запчасти Case IH 930-SERIES (014) - PISTON ASSEMBLY AND CONNECTING RODS, (401) DIESEL ENGINE (02) - ENGINE

1

A41821

SLEEVE

PISTON & SLEEVE KIT (Set of 2) (Replaces A40355), Includes: Ref. 2 - 22

3шт.

2

A11101

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compresion (1st Groove) (Order Ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order Ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order Ref. 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 10)

2шт.

7

A27844

RING

- piston pin retaining

4шт.

8

A23658

SLEEVE

- piston, cylinder liner

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A23588

AXLE PIN

PIN KIT - w/ret. rings (Set of 2)

3шт.

11

A40438

RING

KIT - re-ring (Set or 6) (See valve seal kit, Fig. 18), Includes: Ref. 12

1шт.

12

A40364

RING, PISTON

RING KIT - re-ring (contains 4 rings for 1 piston) (See valve seal kit, PFig. 18)

6шт.

18

A28657

ROD, CONNECTING

ROD ASSY. CONNECTING, Includes: Ref. 19

6шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 21)

1шт.

20

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

21

A21721

BUSHING

KIT - piston pin (Set of 2)

3шт.

22

A20393

LINING

INSERT ASSY. - conn. rod brg. (std.)

6шт.

22

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (-.002")

6шт.

22

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (-010")

6шт.

22

A20573

KIT

INSERT ASSY. - conn. rod brg. (-.020")

6шт.

22

A20576

LINING

INSERT ASSY. - conn. rod brg. (-.030")

6шт.
