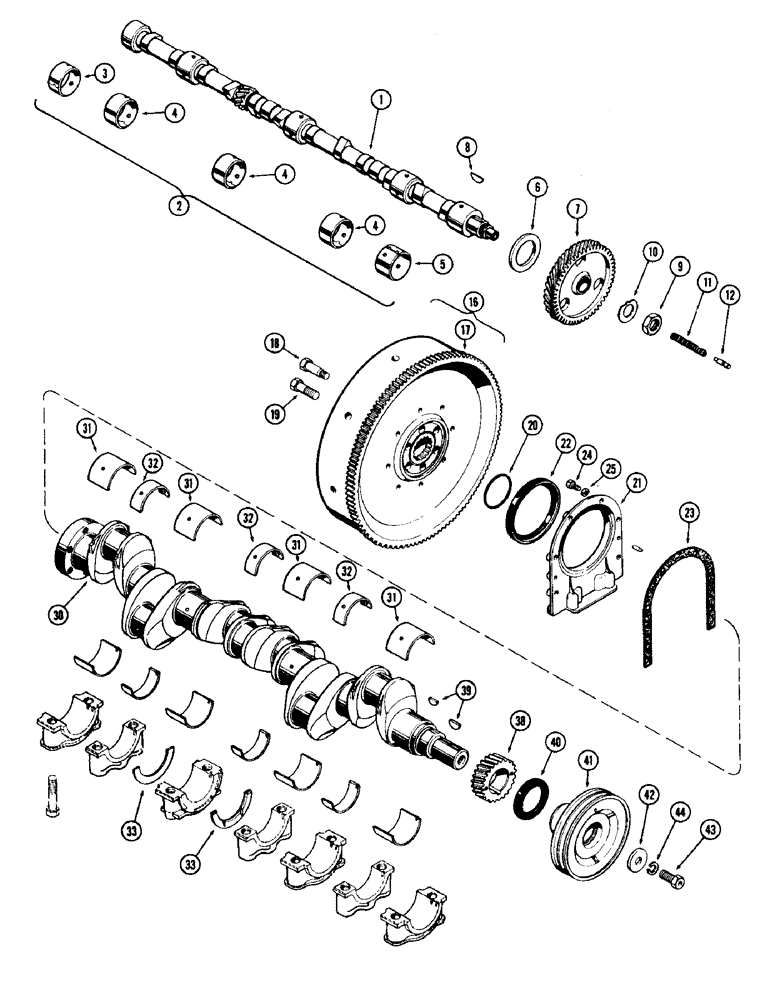

Запчасти Case IH 930-SERIES (012) - CAMSHAFT, (401) DIESEL ENGINE (02) - ENGINE

1

A33839

CAMSHAFT

1шт.

2

A23544

BUSHING

SET - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (15/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - 2nd., 3rd., & 4th (1-27/64" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-41/64" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft (2-1/4 x 3-1/4 x 1/8")

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

A26445

NUT

- camshaft

1шт.

10

A26444

LOCK WASHER

- tab, camshaft nut

1шт.

11

A27853

SPRING

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust, camshaft

1шт.

16

A57426

FLYWHEEL ASSY. - (1st used eng. ser. no. 2186373), crankshaft

1шт.

16

A32603

FLYWHEEL ASSY. - (used prior to eng. ser. no. 2186373) (Order A57426), crankshaft, Includes: Ref. 17

1шт.

17

A27920

GEAR

- ring, flywheel starter, crankshaft

1шт.

18

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - shoulder (9/16 x 2-5/32" N.F., self locking) (Used w/A24944 crankshaft), flywheel

2шт.

19

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - (5/8 x 2-1/8" N.F., self-locking) (Used w/A24944 & A58860 crankshafts), flywheel

4шт.

20

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft 92-3/4 x 3 x 1/8")

1шт.

21

A57457

RETAINER

- rear oil seal (replaces A32182) crankshaft & flywheel

1шт.

22

A23085

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2"), flywheel

1шт.

23

A32830

GASKET

- retainer, rear oil seal, crankshaft & flywheel

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

25

92-6

LOCK WASHER,3/8"

crankshaft & flywheel 3/8"

6шт.

30

A24944

CRANKSHAFT - (Order A42803 kit which consists of 1-A58860 crankshaft, 2-114-622 bolts & 2-114-625 bolts) (the 2-114-622 bolts replace the 2-A7136 bolts & the 2-114-625 bolts are not used in this application), flywheel

1шт.

31

A28687

LINING

LINERS - wide, main brg. (Std.), crankshaft & flywheel

4шт.

31

A7182

KIT

LINERS - wide, main brg. (.002" undersize), crankshaft & flywheel

4шт.

31

A7188

BEARING LINER

LINERS - wide, main brg. (.010" undersize), crankshaft & flywheel

4шт.

31

A7194

KIT

LINERS - wide, main brg. (.020" undersize), crankshaft & flywheel

4шт.

31

A7200

KIT

LINERS - wide, main brg. (.030." undersize), crankshaft & flywheel

4шт.

32

A20394

LINING

LINERS - narrow, main brg. (Std.), crankshaft & flywheel

3шт.

32

A20579

LINING

LINERS - narrow, main brg. (.002" undersize), crankshaft & flywheel

3шт.

32

A20582

LINING

LINERS - marrow, main brg. (.010" undersize), crankshaft & flywheel

3шт.

32

A20585

KIT

LINERS - narrow, main brg. (.020" undersize), crankshaft & flywheel

3шт.

32

A20588

KIT

LINERS - narrow, main brg. (.030" undersize), crankshaft & flywheel

3шт.

33

A27835

WASHER

- thrust (Std.), crankshaft & flywheel

2шт.

33

A7204

WASHER

- thrust, (.006" oversize), crankshaft & flywheel

2шт.

38

A27837

GEAR

- crankshaft, flywheel

1шт.

39

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & pulley, Flywheel #C, 5/16" x 1 1/8", HT

2шт.

40

A57342

SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2") (Replaces A23433), flywheel

1шт.

41

A23644

PULLEY

- fan drive, crankshaft, flywheel

1шт.

42

A27903

WASHER

- fan drive pulley (21/32 x 2-1/8 x 1/4") (Replaces A23229), crankshaft & flywheel

1шт.

43

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley, Special, Crankshaft & flywheel Hex, 5/8"-18 x 1 1/2", G5

1шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft & flywheel 5/8"

1шт.
