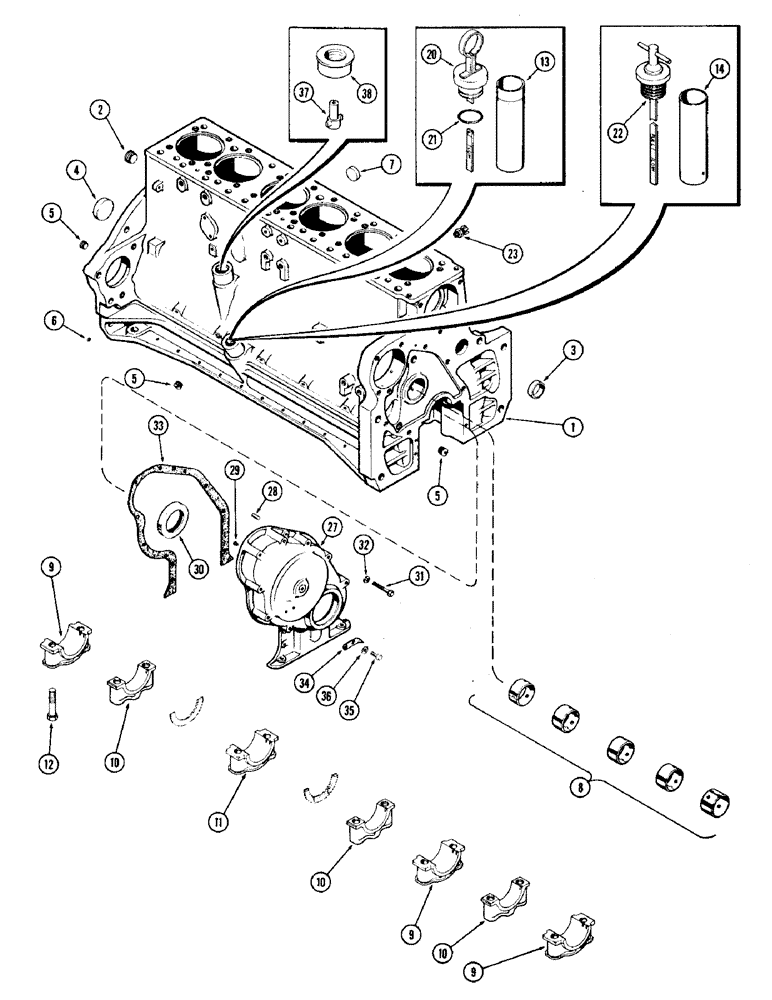

Запчасти Case IH 930-SERIES (011A) - CYL. BLOCK ASSY., (401) DIESEL ENGINE, USED W/CAM DRIVEN OIL PUMP, USED PRIOR TO ENGINE S/N 2174169 (02) - ENGINE

A40437

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (incl. stripped block, camshaft, crankshaft & brgs., timing gears, piston assy., connecting rods & brgs. & oil pump assy.) (Casting No. A24961) (Order A41235), Includes: Ref. 1 - 38

1шт.

1

A24532

BLOCK ASSY. - stripped (Casting No. A24961) (Order A41219), Includes: Ref. 2 - 14

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - water gallery, rear (1" P.T., sckt. hd.)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery, front (1-3/4" cup type)

1шт.

4

A24361

PLUG

- rear camshaft hole (2-3/8" cup type)

1шт.

5

221-1843

PLUG

- (3/8" P.T., sckt. hd.)

6шт.

6

221-41

PLUG

- (1/8" P.T., sltd. hd.)

3шт.

7

41-1622

PLUG,Cup, 1 3/8", Stainless

- left side of block (1-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A24941

CAP

- main bearing, wide

3шт.

10

A24942

CYLINDER END CAP

CAP - main bearing, narrow

3шт.

11

A24943

CAP

- main bearing, thrust

1шт.

13

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap (5/8 x 3-1/4" N.C. spec.)

14шт.

13

A34540

TUBE

SOCKET - oil level gauge (see inset A) (1st used eng. ser. no. 2141473)

1шт.

14

A20714

X

SOCKET - oil level gauge (See inset B) (Used proir to eng. ser. no. 2141473) (Order A34540)

1шт.

20

A34541

DIPSTICK

GAUGE ASSY. - oil level (See inset A) (1st used eng. ser. no. 2141473)

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

22

A20739

GAUGE

- oil level (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

23

A23656

COCK, DRAIN

VALVE - drain, cyl, block

1шт.

27

A20718

COVER ASSY. - timing gear (Order A57403), Includes: Ref. 28 - 30

1шт.

28

A27840

PIN

- dowel, cover to block (5/16 x 3/4")

2шт.

29

A27869

BUTTON - thrust

2шт.

30

A57342

SEAL

- oil, front, crankshaft (2-5/8 x 3-5/8 x 1/2")

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8" x 2-1/2" N.C. hex. hd.)

8шт.

32

92-6

LOCK WASHER,3/8"

10шт.

33

A33018

GASKET

-, Serial Range: cover-block

1шт.

34

A21362

CLIP

POINTER - timing

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

36

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

1шт.

37

A24528

ADAPTER

- tachometer drive

1шт.

38

A11195

PLUG

- adapter, tachometer drive

1шт.
