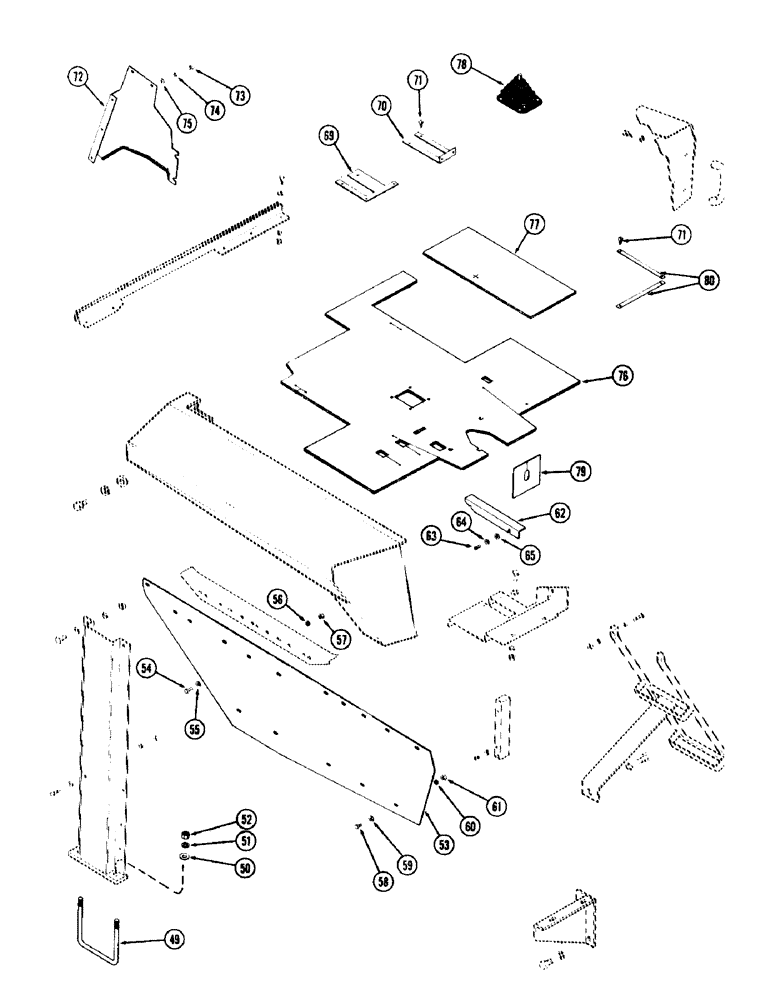

Запчасти Case IH 930-SERIES (205A) - CAB SHEET METAL (09) - CHASSIS

49

A57048

U-BOLT

"U" BOLT - support to axle housing (Cont'd. from Fig. 204)

2шт.

50

195-108

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

4шт.

51

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

52

129-127

NUT,5/8"-18, G5

4шт.

53

A57795

PLATE - wing, left hand

1шт.

53

A57842

PLATE - wing, right hand

1шт.

54

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate to fuel tank support Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

54

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Plate to fuel tank supt. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

SHOULD USE 113-257

1шт.

54

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Plate to fuel tank supt. Hex, 3/8"-16 x 2", G5

1шт.

55

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 1/16")

8шт.

56

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

57

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

58

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Plate to battery box support & cab (5/16 x 3/4" N.C. hex.)

8шт.

58

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Plate to battery box Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

59

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

14шт.

60

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

61

9635082

NUT,5/16" - 18, Gr 5

10шт.

62

A57797

TRIM - foot rest, left hand

1шт.

62

A57796

TRIM - foot rest, right hand

1шт.

63

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

- foot rest trim (1/4 x 1" Phillips hd.)

4шт.

64

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

65

195-517

WASHER,1/4"

- (17/64 x 5/8 x 3/64")

4шт.

69

A57980

TRIM - brake pedal plate

1шт.

70

A57806

TRIM - clutch pedal plate

1шт.

71

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - trim (#14 x 1/2" pan hd., self-tapping)

16шт.

72

A57801

PANEL - filler, left hand rear

1шт.

72

A57800

PANEL - filler, right hand rear

1шт.

73

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Panel to cab Hex, 1/4"-20 x 5/8", G5, Full Thd

10шт.

74

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

75

195-517

WASHER,1/4"

- (17/64 x 5/8 x 3/64")

10шт.

76

A57808

MAT

- floor, center (platform)

1шт.

77

A57799

MAT - floor, left hand (battery door)

1шт.

77

A57798

MAT - floor, right hand (battery door)

1шт.

78

A57809

BOOT

- steering column

1шт.

79

A57810

BOOT

- gear shift lever

1шт.

80

A57878

STRIP - matt clamp

4шт.
