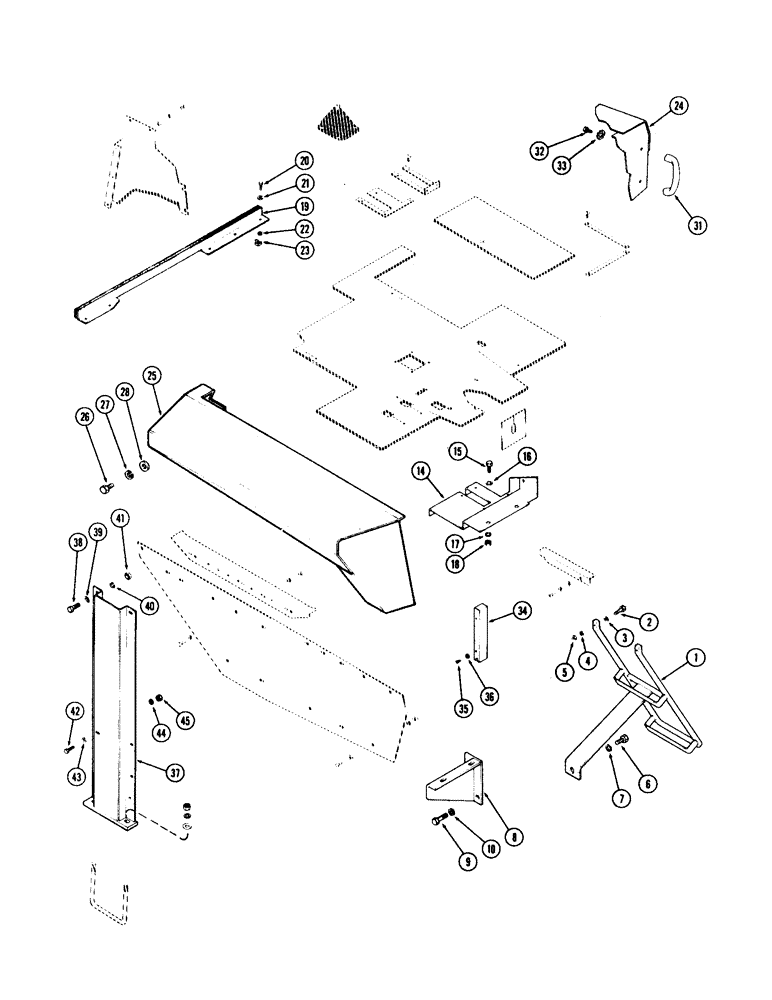

Запчасти Case IH 930-SERIES (204) - CAB SHEET METAL (09) - CHASSIS

1

A57772

STEP - cab mounting

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Step to cab Hex, 3/8"-16 x 1 1/2", G5

2шт.

3

195-525

WASHER,3/8", SAE

- (13/32" x 13/16 x 1/16")

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Step to clutch hsg. Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

A57773

SUPPORT - cab, left hand, lower front

1шт.

8

A57774

SUPPORT - cab, right hand, lower front

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Support Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

A57775

PLATE - platform filler, left front

1шт.

14

A57776

PLATE - flatform filler, right front

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Plate to platform Hex, 5/16"-18 x 1", G5, Full Thd

5шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Plate to cab support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

16

192-521

WASHER

- (11/32 x 11/16 x 1/16")

5шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

131-613

NUT - (5/16" N.C. cage)

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

19

A57777

PLATE - platform filler, rear

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Plate to platform Hex, 5/16"-18 x 1", G5, Full Thd

5шт.

21

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

5шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

23

131-613

NUT - (5/16" N.C. cage)

5шт.

24

A57779

FENDER - cab, left hand

1шт.

25

A57778

FENDER - cab, right hand

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Fender to cab

18шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

18шт.

28

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

18шт.

31

A23725

HANDLE

- mounting (left hand fender)

1шт.

32

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

33

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

34

A57803

PLATE - firewall filler, left hand

1шт.

34

A57802

PLATE - firewall filler, right hand

1шт.

35

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- plate to cab (1/4 x 1/2" Phllips hd.)

4шт.

36

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

4шт.

37

A57805

SUPPORT - channel, left hand

1шт.

37

A57804

SUPPORT - channel, right hand

1шт.

38

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Support to cab Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

39

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32") 1/2", SAE

4шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

42

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Support to fuel tank Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

43

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 1/16")

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
