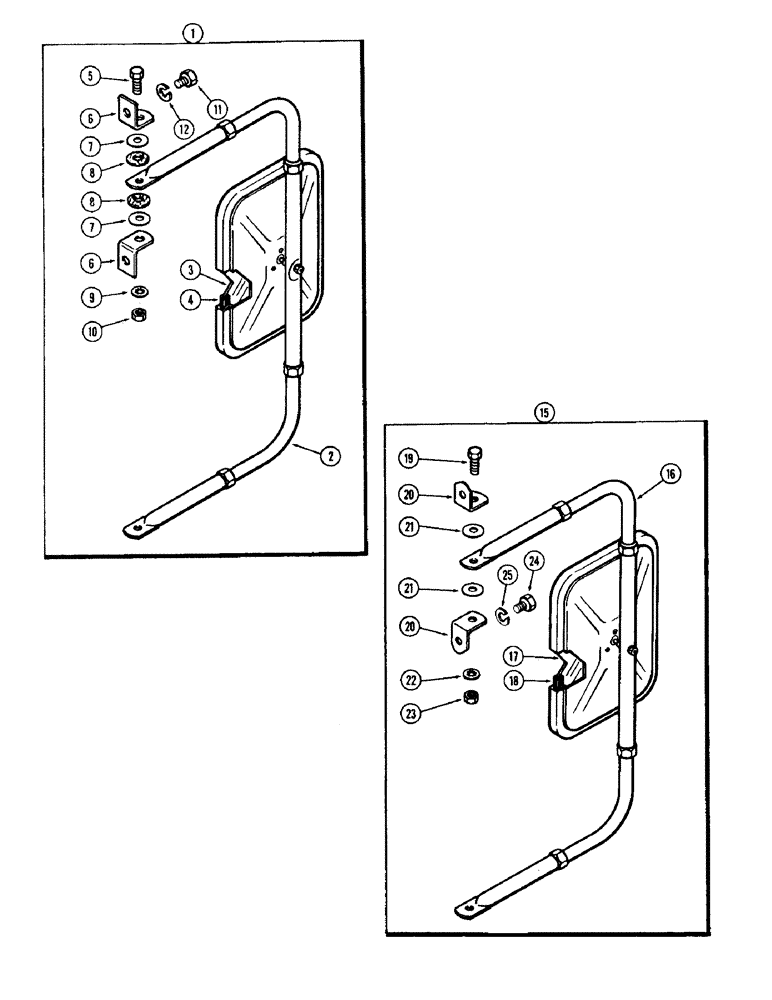

Запчасти Case IH 930-SERIES (203A) - REAR VIEW MIRROR (09) - CHASSIS

1

A60043

REAR VIEW MIRROR - tractor w/cab (machinery item), Includes Ref: 2 - 10

1шт.

2

A60045

MIRROR ASSY. - rear view w/rim, Includes Ref: 3 and 4

1шт.

3

NS

NOT SERVICED

MIRROR - glass (Order A60045)

1шт.

4

A42186

RIM - mirror (rubber)

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

6

A60046

CLIP - mounting, rear niew mirror

4шт.

7

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

8

A57841

WASHER

- mounting (7/16 x 3/4 x 3/64" fiber)

4шт.

9

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

10

129-123

NUT,3/8"-24, G5

2шт.

11

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Clip to cab Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

A57838

REAR VIEW MIRROR - tractor w/cab (Machinery Item) (Order A60043), Includes Ref: 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - rear view, Includes Ref: 17 and 18

2шт.

17

A41771

MIRROR - (glass)

1шт.

18

A41772

FRAME - mirror (Bezal)

1шт.

19

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Mirror to clip

2шт.

20

A57840

CLIP - mirror mounting

4шт.

21

A57841

WASHER

- (7/16 x 3/4 x 3/64" fiber)

4шт.

22

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

23

129-123

NUT,3/8"-24, G5

2шт.

24

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Clip to cab Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
