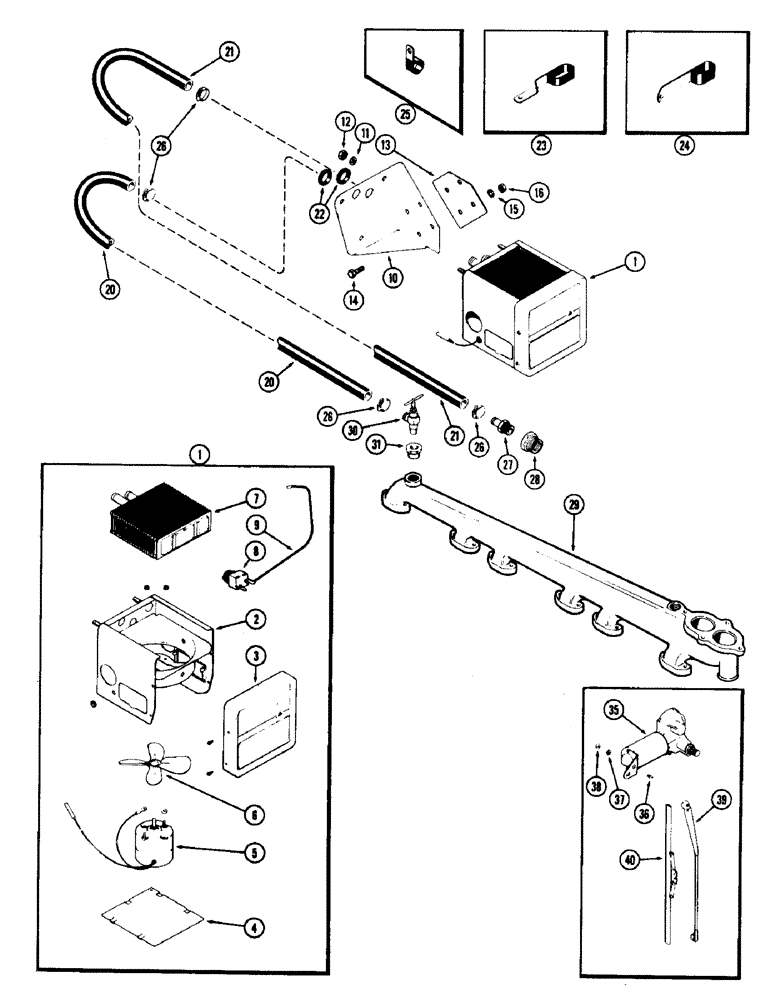

Запчасти Case IH 930-SERIES (202) - CAB HEATER ATTACHMENT (09) - CHASSIS

1

A57828

HEATER ASSY. - (Mach. Item), Includes Ref: 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - heater (Order A57828)

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - vent door (Order A57828)

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - housing bottom (Order A57828)

1шт.

5

A41733

MOTOR

ASSY. - heater

1шт.

6

A41735

FAN

ASSY. - heater

1шт.

7

A41734

CORE - radiator

1шт.

8

A41732

SWITCH ASSY. - heater

1шт.

9

A41718

WIRE - heater switch to 7-1/2 amp fuse

1шт.

10

A57829

BRACKET - heater mounting

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

12

9635082

NUT,5/16" - 18, Gr 5

3шт.

13

A57830

SUPPORT - mounting bracket

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to support Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

A42610

LARGE HOSE

HOSE - heater (50 foot roll) (Not Illust.)

1шт.

20

A57833

HOSE - shut-off valve to manifold (102" long) (Order A42610)

1шт.

21

A57834

HOSE - heater to water pump (119" long) (Order A42610)

1шт.

22

T30339

GROMMET - heater hose (in platforms)

2шт.

23

A57837

CLIP - hose, rear

2шт.

24

A57835

CLIP - hose, center

1шт.

25

R14668

CLAMP

CLIP - hose, front

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

4шт.

27

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - heater hose (at water pump)

1шт.

28

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - heater hose (in water pump) (3/4" to 1/2")

1шт.

29

A60072

MANIFOLD ASSY. - water (Includs 2-221-844, 1/2" hex. sckt. hd. pipe plugs & 1-221-13, 3/8" sq. hd. pipe plug) (Replaces A57755)

1шт.

30

A16764

VALVE

ASSY. - shut-off (at manifold)

1шт.

31

221-1056

BUSHING

- (in manifold), Serial Range: (1/2"-3/8")

1шт.

35

F87197

MOTOR ASSY. - windshield wiper (single speed)

1шт.

36

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- motor (#10-32 x 1/2" rd. hd.), windshield wiper

1шт.

37

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - (#10 int./ext. skpf.), windshield wiper

1шт.

38

129-37

NUT,#10-32

Windshield wiper #10-32

1шт.

39

A10893

ARM

- windshield wiper

1шт.

40

A10894

WINDSHIELD WIPER

BLADE - windshield wiper

1шт.
