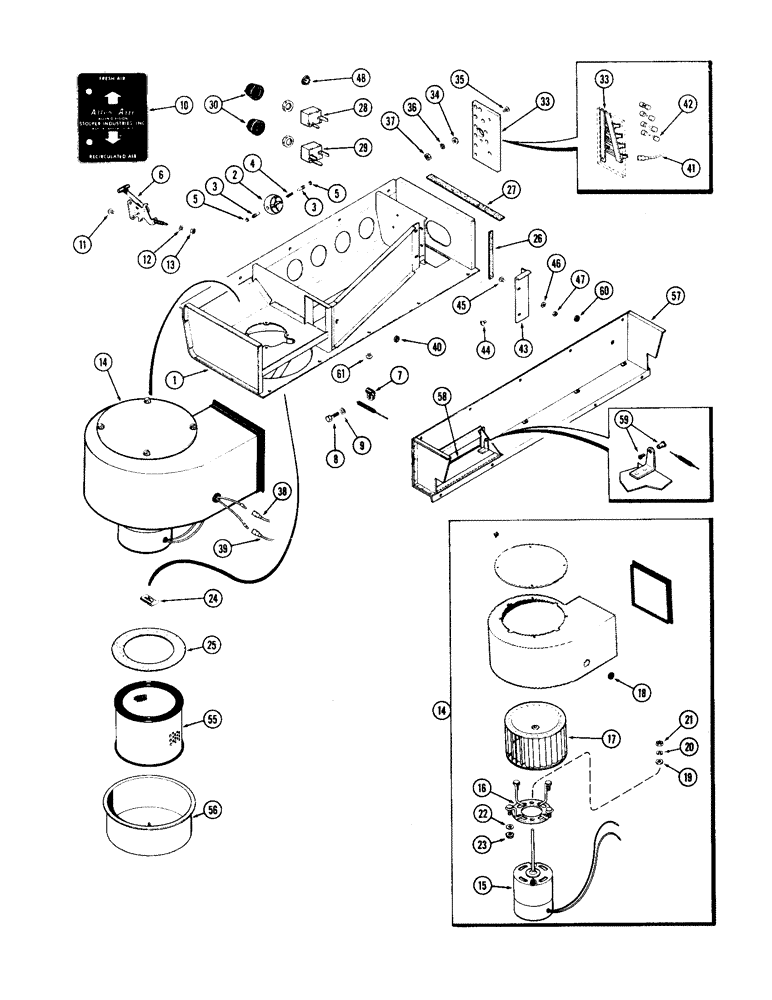

Запчасти Case IH 930-SERIES (200) - CAB PRESSURIZER UNIT (09) - CHASSIS

A41706

PRESSURIZER ASSY. - (not illust.), Includes Ref: 1 - 61

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pressurizing unit (Order A41706)

1шт.

2

A41658

DEFLECTOR - air

5шт.

3

A41660

PIN - deflector guide

10шт.

4

A41659

SPRING - deflector tension

5шт.

5

A41661

RETAINER - guide pin

10шт.

6

A41687

LEVER

ASSY. - w/cable, vent door control

1шт.

7

A41648

CLAMP - control lever cable

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clamp Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A41672

DECAL - air control (aluminum)

1шт.

11

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- decal & lever (#10-32 x 3/8" rd. hd.)

2шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

13

129-37

NUT,#10-32

2шт.

14

A41684

BLOWER

ASSY., Includes Ref: 15 - 23

1шт.

15

F91903

MOTOR

ASSY.

1шт.

16

F91905

BRACKET

- motor to blower housing

1шт.

17

F91904

WHEEL - blower impeller

1шт.

18

F22434

GROMMET - motor leads (thru housing)

2шт.

19

195-512

WASHER,#10

- (7/32 x 7/16 x 1/6")

2шт.

20

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - (#10 lock)

2шт.

21

129-37

NUT,#10-32

2шт.

22

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - (1/4" spring type)

4шт.

23

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4"-20 hex.)

4шт.

24

A41662

NUT - speed ("U" type)

1шт.

25

A41685

GASKET - filter seal

1шт.

26

A41681

INSULATION - (1/8 x 1/2 x 12-7/32" polyfoam) (cut length as required)

1шт.

27

A41682

INSULATION (3/8 x 1/2 x 23" polyfoam) (cut length as required)

1шт.

28

A41671

SWITCH

ASSY. - windshield wiper, w/nut

1шт.

29

A41670

SWITCH

ASSY. - blower, w/nut

1шт.

30

A41647

KNOB

- switch

2шт.

A41731

DECAL - blower (knob face) (not illust.)

1шт.

A41730

DECAL

- wiper (knob face) (not illust.)

1шт.

33

A41669

BLOCK - terminal & fuse

1шт.

34

95-14

WASHER,7/8"

- (15/64 x 17/32 x 1/16")

2шт.

35

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- term, block (#8-32 x 1/2" rd. hd.)

2шт.

36

193-41

WASHER,Ext-Int Tooth, #8

LOCK, Ext-Int Tooth, #8

2шт.

37

129-16

NUT,#8-32

2шт.

38

A41688

WIRE - switch to motor (orange) (36" long) (hi-heat)

1шт.

39

A41689

WIRE - switch to motor (red) (36" long) (lo-heat)

1шт.

40

F21349

GROMMET - wires (1/4 x 5/8 x 3/16")

1шт.

41

A41718

WIRE - jumper, switch to fuse terminal (10" long)

1шт.

42

223-20

FUSE,20 Amp, Type SFE

- blower switch (20 amp.)

1шт.

43

A41686

COVER - plate

1шт.

44

187-483

SCREW - cover (#10 x 3/8" sheet metal)

2шт.

45

163-9

SCREW,Hex, #10 - 32 x 1/2"

- cover (#10-32 x 1/2" hex.)

2шт.

46

195-12

WASHER,#10

- cover (7/32 x 7/16 x 1/16")

2шт.

47

129-27

NUT,Hex, #10 - 32

- ( hex.) #10-32

2шт.

48

205-17

PLUG - heater switch hole (1-41/64" button type)

1шт.

55

F22437

FILTER

ELEMENT - air filter cartridge (Replaces A41657)

1шт.

56

A41712

COVER ASSY. - air filter, w/ret. stud

1шт.

57

A41704

DUCT ASSY. - air, Includes Ref: 58 - 60

1шт.

58

A41743

SEAL - vent door (11-1/2" long) (used adhesive)

1шт.

59

A41744

SWIVEL ASSY. - vent door cable

1шт.

60

F21347

GROMMET - wiper wire

1шт.

61

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- air duct & pressurizer (1/4-20 x 1/2" truss hd.)

15шт.
