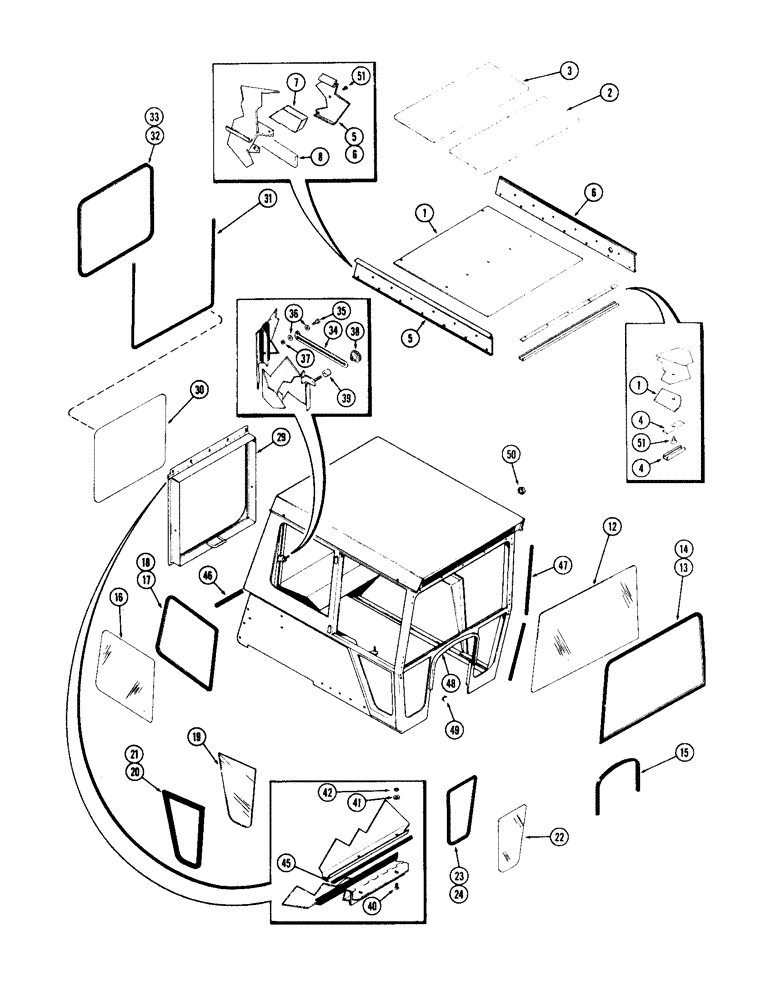

Запчасти Case IH 930-SERIES (198) - CAB (09) - CHASSIS

1

A41713

HEADLINER - cab ceiling (perforated)

1шт.

2

A41697

INSULATION - roof, front (1 x 14 x 39-1/2" fiber glass)

1шт.

3

A41698

INSULATION - roof, rear (1 x 17-3/16 x 39-1/2" fiber glass)

1шт.

4

A41694

TRIM ASSY. - headliner (snap on type)

1шт.

5

A41699

BUTTON

STRIP - headliner trim, right hand (perforated)

1шт.

6

A41700

STRIP - headliner trim, left hand (perforated)

1шт.

7

A41695

INSULATION - header, upper (1 x 4 x 54" fiber glass)

2шт.

8

A41696

INSULATION - head, lower (1 x 4 x 57" fiber glass)

2шт.

12

A41652

WINDSHIELD - cab

1шт.

13

A41707

SETTING - windshield

1шт.

14

A38096

STRIP

FILLER - windshield setting

1шт.

15

A41656

SEAL

- hood

1шт.

16

A41655

GLASS - cab sides

2шт.

17

A41746

SETTING - glass

2шт.

18

A38117

MOLDING

FILLER - setting

2шт.

19

A41651

GLASS - lower, right hand

1шт.

20

A41705

SETTING - glass

1шт.

21

A38117

MOLDING

FILLER - setting

1шт.

22

A41654

GLASS - front, lower

2шт.

23

A41709

SETTING - glass

2шт.

24

A38117

MOLDING

FILLER - setting

2шт.

A41692

WINDOW ASSY. - rear (not illust.), Includes Ref: 29 - 37

1шт.

29

NSS

NOT SOLD SEPARAT

FRAME - window (Order A41692)

1шт.

30

A41653

WINDOW - rear

1шт.

31

A38126

X

SEAL - window (use adhesive)

1шт.

32

A38095

SEAL

SETTING - window

1шт.

33

A38096

STRIP

FILLER - window setting

1шт.

34

A41673

BRACKET

REGULATOR - window

2шт.

35

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Regulator (used in place of rivet) Hex, 1/4"-20 x 1", G5

2шт.

36

195-517

WASHER,1/4"

- regulator (17/64 x 5/8 x 1/16")

2шт.

37

25-104

NUT,1/4"-20, G5

2шт.

38

A42918

KNOB

- lock, regulator (Replaces A41674)

2шт.

39

A41649

SPACER - knob

2шт.

40

77-510

SCREW,Spcl, #6

- window hinge (5/16 x 5/8" N.C., truss hd.)

5шт.

41

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

5шт.

42

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

45

A41664

SEAL - weathre, rear window

1шт.

46

A41683

SEAL - weather, rear

1шт.

47

A41675

EDGING - cab

6шт.

48

A60048

FILLER -, Serial Range: cab-hood

1шт.

49

205-17

PLUG - cab (13/32" button type)

2шт.

50

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - cab (1-1/2" button type)

1шт.

51

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- cab (#10 x 3/8" sltd. pan hd.)

1шт.
