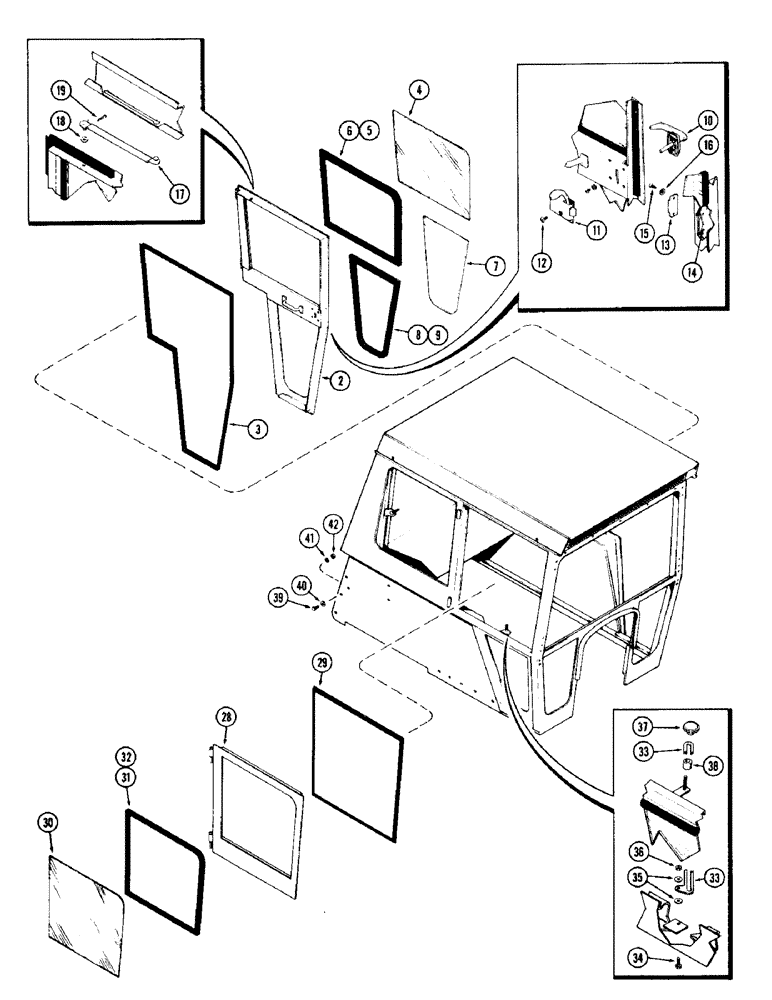

Запчасти Case IH 930-SERIES (196) - CAB (09) - CHASSIS

A41710

DOOR ASSY. - left hand (not illust.), Includes Ref: 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - left hand (Order A41710)

1шт.

3

A38126

X

SEAL - door, weather

1шт.

4

A41650

GLASS - door, upper

1шт.

5

A41703

SETTING - upper door glass

1шт.

6

A38117

MOLDING

FILLER - upper door glass

1шт.

7

A41651

GLASS - door, lower

1шт.

8

A41705

SETTING - lower door glass

1шт.

9

A38096

STRIP

FILLER - lower door glass

1шт.

10

F84805

HANDLE - cab door

1шт.

11

A41646

LATCH

ASSY. - cab door

1шт.

12

175-297

SCREW,Truss Hd, #10 - 32 x 1/2"

- latch (#10-32 x 1/2" truss hd.)

4шт.

13

A36080

PLATE

STRIKER - door latch

1шт.

14

A41663

PLATE - striker

1шт.

15

68-412

SCREW - striker (1/4-20 x 3/4" oval hd.)

2шт.

16

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - (1/4" int. ext. skpf.)

2шт.

17

A42896

CHECK - door stop (Replaces A41711)

1шт.

18

195-104

WASHER,3/8"

- door check (7/16 x 1 x 5/64")

1шт.

19

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

F22428

CLIP - door check (in cab header) (not illust.)

1шт.

F22112

TENSION - door check (in cab header) (not illust.)

1шт.

131-52

NUT,3/8"-16, GC

STOP NUT - door check (in cab header) (not illust.)

1шт.

A41708

DOOR ASSY. - right hand (not illust.), Includes Ref: 28 - 36

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - right hand (Order A41708)

1шт.

29

A41665

SEAL

- door, weather

1шт.

30

A41650

GLASS - door

1шт.

31

A41702

SETTING - door glass

1шт.

32

A38117

MOLDING

FILLER - door glass

1шт.

33

A41673

BRACKET

REGULATOR - door limit stop

1шт.

34

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Limit stop (used in place of rivet) Hex, 1/4"-20 x 1", G5

1шт.

35

195-517

WASHER,1/4"

- limit stop pivot (17/64 x 5/8 x 1/16")

2шт.

36

25-104

NUT,1/4"-20, G5

1шт.

37

A42918

KNOB

- lock, door regulator (Replaces A41674)

1шт.

38

A41649

SPACER - knob

1шт.

39

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - (5/16 x 7/8" N.C. carr.) (Replaces 113-103)

10шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cab to fuel tank Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

40

195-521

WASHER,5/16", SAE

- cab bolt (11/32 x 11/16 x 1/16")

10шт.

40

195-525

WASHER,3/8", SAE

- cab bolt (13/32 x 13/16 x 1/16")

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

9635082

NUT,5/16" - 18, Gr 5

10шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
