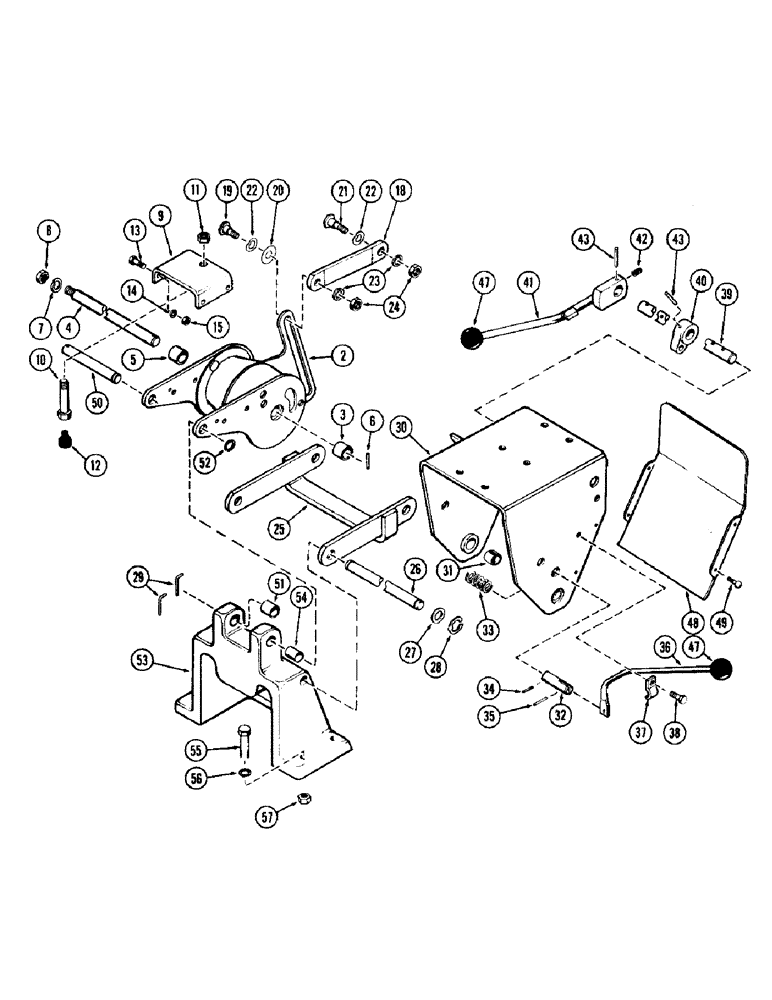

Запчасти Case IH 930-SERIES (180) - SEAT SUSPENSION, WITHOUT FLANGED BUSHINGS, USED PRIOR TO TRACTOR SERIAL NUMBER 8339332 (09) - CHASSIS

A34598

X

SEAT ASSY. - (not illust.) (Order A57726), Includes Ref: 2 - 57

1шт.

2

A34676

DIFFERENTIAL ASSY

ARM ASSY. - (1st used trac. S/N 8287346) (Incl. Ref. 3) (Order 1-A57714, 1-A57720, 2-A57721, 4-14-616, 4-92-6 & 4-25-116)

1шт.

2

A23947

X

ARM ASSY. - torsion spring (incl. Ref. 3) (used prior to trac. ser. no. 8287346) (Order A34676), Includes Ref: 3

1шт.

3

A27793

BUSHING

- arm (5/8 x 3/4 x 3/4") (Use A57709)

2шт.

4

A23965

BOLT

- torsion spring

1шт.

5

A23966

SPACER

- torsion (5/8 x 27/32 x 1-3/32")

2шт.

6

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- bolt ret. (1/2" N.F. jam)

1шт.

9

A23975

BRACE - cross seat mtg. arm

1шт.

10

A33741

BOLT

- bumper seat

1шт.

11

25-108

NUT,1/2"-13, G5

- bumper bolt (1/2" N.C. hex.)

1шт.

12

A24372

BUMPER - seat (rubber)

1шт.

13

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- brace (1/4 x 7/8" N.F. hex.)

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

4шт.

18

A23962

LINK - seat adj.

1шт.

19

A27277

STEP BOLT

BOLT - shoulder, link, rear (3/8" N.F. x 1-1/4")

1шт.

20

A30752

WASHER

- rear link bolt (17/32 x 1-1/16 x 1/32")

1шт.

21

A23964

BOLT - shoulder, link front (3/8" N.F. x 1-7/16")

1шт.

22

A23963

WASHER - bolt tension (spring type)

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

25

A23970

LINK

ASSY. - parallel

1шт.

26

A34515

X

PIN - parallel link (8-5/16" long) (use A57725) (req. 1-A34516 lock pin & 1-A27811 "E" ring)

2шт.

26

A23973

PIN

- parallel link (req. 2-A27811 "E" rings)

2шт.

27

A7915

SHIM,.0359" Thk

Washer - Spacer (21/32" x 1-1/8" x 20 ga.) (UAR) .0359" Thk

4шт.

28

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, , parallel links #X74, .616" Dia, E-Type

1шт.

29

A34516

PIN

- lock, pivot pins

2шт.

30

A32544

SADDLE

ASSY. - seat mtg., Includes Ref: 31 - 34

1шт.

31

A13583

BUSHING

- saddle (5/8 x 3/4 x 3/8")

2шт.

32

A23967

ROD

- lock lever

1шт.

33

A23969

SPRING

- lock lever

1шт.

34

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Rod 1/8" x 7/8", Slotted

1шт.

35

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, , lever 5/32" x 1/2", Slotted

1шт.

36

A32546

LEVER - seat lock

1шт.

37

A24014

CLIP - lock lever

1шт.

38

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip (1/4 x 3/4" N.F. hex.)

1шт.

39

A32549

SHAFT - cross, adj. lever

1шт.

40

A23957

LEVER - seat adj.

1шт.

41

A32547

LEVER - seat adjust

1шт.

42

A23646

SPRING

- lever tension

1шт.

43

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

47

A23885

KNOB

- lever

2шт.

48

A23977

COVER - saddle

1шт.

49

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- cover (#8-32 x 3/8" ph. pan hd.)

4шт.

50

A23976

PIN

- pivot, torsion arm

1шт.

51

A24490

SPACER

- arm (11/16 x 3/4 x 2-1/8")

1шт.

52

A26828

RING

- snap, pivot pin ret.

1шт.

53

A23940

SUPPORT

ASSY. - seat suspension (w/std. seat), Includes Ref: 54

1шт.

53

A32877

SUPPORT ASSY. - (w/De-Luxe Seat) (Order A57786)

1шт.

54

A27793

BUSHING

- support (5/8 x 3/4 x 3/4") (Use A57709)

2шт.

55

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Seat support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

56

A34650

LOCK WASHER

- (1/2" ext. skpf.)

4шт.

57

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.
